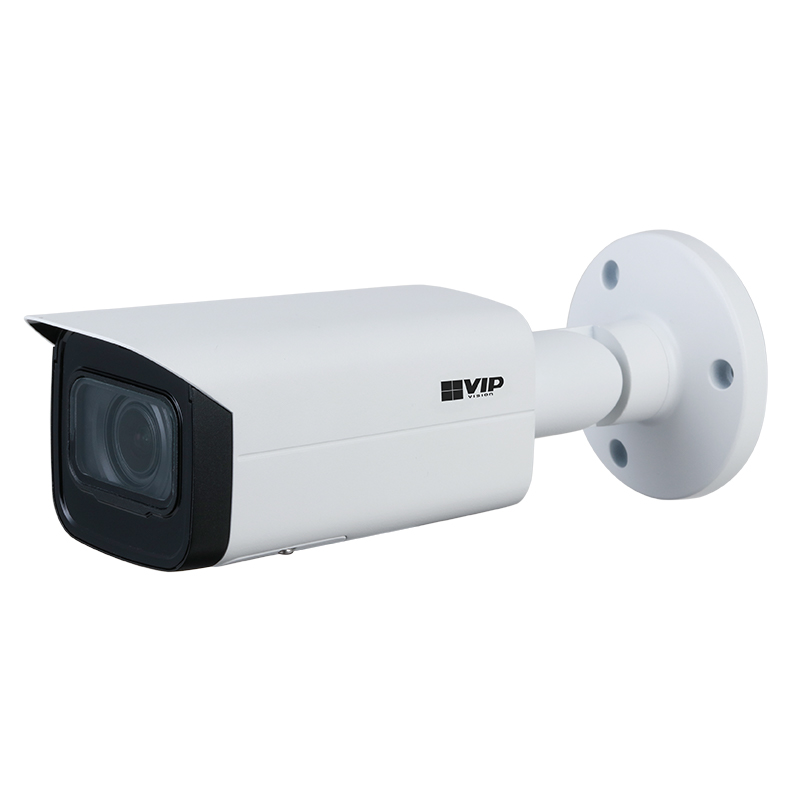

VSIPP-8BIRMG-I: Professional AI Series 8.0MP Motorised Bullet

Specifications

Camera

Image Sensor

1/2.8’’ 8.0MP Progressive Scan CMOS

Max. Resolution

8.0 Megapixel

Effective Pixels

3840 (H) x 2160 (V)

RAM / ROM

128MB / 512MB

Min Illumination

0.007 Lux/F1.5 (Color)

S/N Ratio

>50dB

Infrared System

4 x Infrared LED, 60m range, Auto/manual on/off control

Lens

Lens Type

Motorised Varifocal

Lens / Iris

2.7 ~ 13.5mm F1.5 Motorised Varifocal Lens with Fixed Iris

Field of View

Horizontal: 113°~31°, Vertical: 58°~17° (5x Optical Zoom)

Focus

Auto Focus / 0.8m Min. Focus Distance

DORI

Detect (25px/m)

85m (wide) / 280m (tele)

Observe (63px/m)

34m (wide) / 112m (tele)

Recognise (125px/m)

17m (wide) / 56m (tele)

Identify (250px/m)

8m (wide) / 28m (tele)

Video

Resolution

8.0MP (3840 x 2160) to CIF (352 x 288)

Frame Rate (Main)

8.0MP (1 ~ 20fps) / 2.0MP (1 ~ 25fps)

Frame Rate (Sub)

D1 (1 ~ 25fps)

Frame Rate (Third)

1080p (1 ~ 25fps)

Video Compression

H.265 / H.264 / H.264B / MJPEG

Bit Rate

H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps

Bit Rate Control

Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night

Auto (ICR) / Colour / B&W

Lighting Compensation

BLC / HLC / WDR (120dB)

Smart Scene Adaptive (SSA)

Yes

White Balance

Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom

Gain Control

Auto/ Manual

Noise Reduction

3D DNR

Picture Control

Mirror / Flip (0°, 90°, 180°, 270°) (Resolution must be at 4.0MP or lower)

IVS

Intelligent Functions

Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared

Perimeter Protection

Tripwire & Intrusion (Add recognition of humans & vehicles)

Face Detection

N/A

Face Attributes

N/A

People Counting

N/A

Heat Map

N/A

Event Trigger

N/A

Intelligent Search

Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP

Streaming Method

Unicast / Multicast

Max. User Access

20 users

Interface

Video Interface

N/A

Audio Interface

1 input (RCA Port) / 1 output (RCA Port) / Audio Compression - G.711a; G.711Mu; G726; AAC

Alarm Interface

1 channel in: 5mA 5VDC/ 1 channel out: 300mA 12VDC

RS485

N/A

Edge Storage

MicroSD Card (up to 256GB) / NAS

Interoperability

ONVIF / P2P / CGI / Milestone / Genetec

Environmental

Power Supply

12VDC / PoE (802.3af)

Power Consumption

<10.3W

Operating Conditions

-30° ~ +60° C / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

N/A

Series

Professional AI Series

Camera Type

Bullet

Housing

Metal

Pan/Tilt/Rotation

Pan: 0° ~360 °; Tilt: 0° ~90°; Rotation: 0° ~355°

ePoE

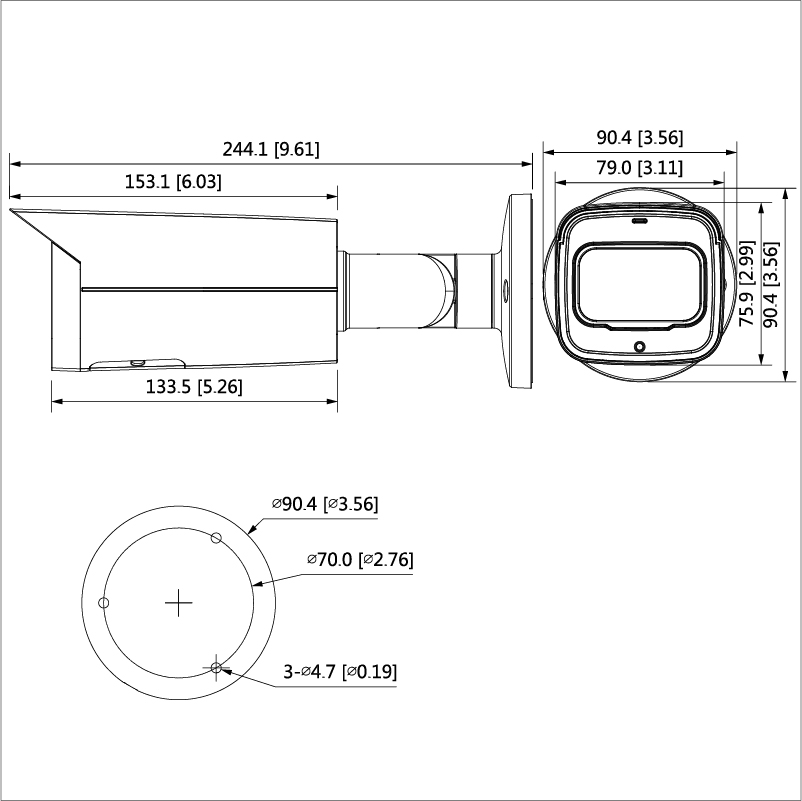

Dimensions

244mm x 79mm x 76mm

Net Weight

0.82kg
