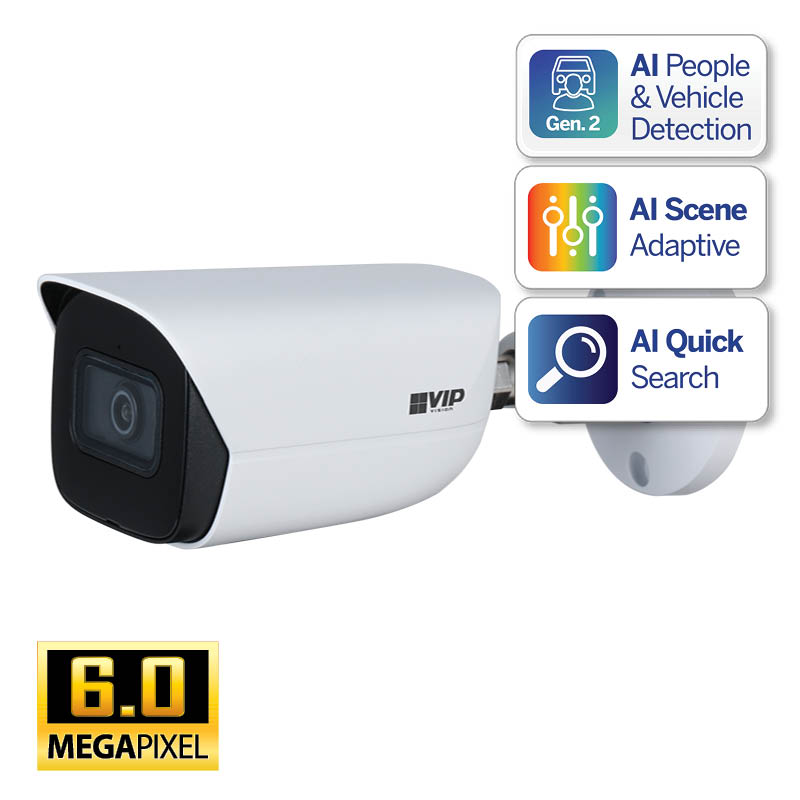

VSIPP-6BIRG-I2: Professional AI Series 6.0MP Fixed Bullet

Specifications

Camera

Image Sensor

1/2.7’’ 6.0MP Progressive Scan CMOS

Max. Resolution

6.0 Megapixel

Effective Pixels

3072 (H) × 2048 (V)

RAM / ROM

1GB / 128MB

Min Illumination

0.005 Lux/F1.4 (Color)

S/N Ratio

> 56dB

Infrared System

2 x Infrared LED, 50m range, Auto/manual on/off control

Lens

Lens Type

Fixed

Lens / Iris

2.8mm F1.6 Fixed Lens

Field of View

Horizontal: 97°, Vertical: 71°

Focus

Fixed / 0.9m Min. Focus Distance

DORI

Detect (25px/m)

64m

Observe (63px/m)

25m

Recognise (125px/m)

13m

Identify (250px/m)

Video

Resolution

6.0MP (3072 x 2048) to CIF (352 x 288)

Frame Rate (Main)

6.0MP (1 ~ 25fps)

Frame Rate (Sub)

D1 (1 ~ 25fps)

Frame Rate (Third)

1080p (1 ~ 25fps)

Video Compression

H.265 / H.264 / H.264H / H.264B / MJPEG

Bit Rate

H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps

Bit Rate Control

Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night

Auto (ICR) / Color / B&W

Lighting Compensation

BLC / HLC / WDR (120dB) / AI SSA

Smart Scene Adaptive (SSA)

Yes

White Balance

Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom

Gain Control

Auto

Noise Reduction

3D DNR

Picture Control

Mirror / Flip (0°, 90°, 180°, 270°)

IVS

Intelligent Functions

Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared

Perimeter Protection

Tripwire & Intrusion (Add recognition of humans & vehicles)

Face Detection

N/A

Face Attributes

N/A

People Counting

N/A

Heat Map

N/A

Event Trigger

Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly

Intelligent Search

Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Streaming Method

Multicast

Max. User Access

20 Users

Interface

Video Interface

N/A

Audio Interface

1 input (RCA Port) / 1 output (RCA Port) / Built-in Mic / Audio Compression - G.711a; G.711Mu; G726

Alarm Interface

1 channel in: 5mA 5VDC/ 1 channel out: 300mA 12VDC

RS485

N/A

Edge Storage

MicroSD Card (up to 256GB) / NAS

Interoperability

ONVIF / P2P / CGI / Milestone / Genetec

Environmental

Power Supply

12VDC / PoE (802.3af)

Power Consumption

<6.5 W

Operating Conditions

-30°C ~ +60°C / ≤95% RH

Ingress Protection

IP67

Vandal Resistance

N/A

Series

Professional AI Series

Camera Type

Bullet

Housing

Metal

Pan/Tilt/Rotation

Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°

ePoE

Dimensions

192.7mm x 70.5mm x 66.4mm

Net Weight

0.59kg

Warranty (Years)
