Camera
Image Sensor
1/2.7’’ 5.0MP Progressive Scan CMOS
Max. Resolution
Effective Pixels
2592 (H) x 1944 (V)
RAM / ROM
512MB / 128MB
Min Illumination
0.005 Lux/F1.0 (Color)
S/N Ratio
> 56dB
Infrared System
1 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type
Lens / Iris
2.8mm Fixed Focal Lens with Fixed Iris
Field of View
Horizontal: 102°, Vertical: 71°
Focus
Auto Focus / 0.9m Min. Focus Distance
DORI
Detect (25px/m)
56m
Observe (63px/m)
22m
Recognise (125px/m)
11m
Identify (250px/m)
6m
Video
Resolution
5.0MP (2592 x 1944) to CIF (352 x 288)
Frame Rate (Main)
5.0MP (1 ~ 20fps) / 1080p (1 ~ 50fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 17fps)
Video Compression
H.265+ / H.265 / H.264+ / H.264 / H.264H / MJPEG
Bit Rate
H.265: 19 ~ 8192Kbps / H.264: 32 ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Illumination, Defog, Object Abandoned / Missing
Perimeter Protection
Tripwire, Intrusion, fast moving, loitering detection, people gathering, parking detection (Add recognition of humans & vehicles)
Face Detection
N/A
Face Attributes
N/A
People Counting
Supports people counting (Displays enter no., leave no. and pass no.), area people counting ( Count no. people or stay time / 4 rules configuration), Queue Management (Counts no. people or stay time / 4 rules configuration)
Heat Map
Yes
Event Trigger
Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search
Via NVR Smart Search, Search tripwire/intrusion events by people or vehicle
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
Built-in Mic / Built-in Speaker / Audio Compression - G.711a; G.711Mu; G726; AAC; G723
Alarm Interface
1 channel in: 5mA 5VDC/ 1 channel out: 300mA 12VDC
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS / FTP / SFTP
Interoperability
ONVIF (Profile S, Profile G) / P2P / CGI / Milestone / Genetec
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
<7.2W
Operating Conditions
-40°C ~ +60°C / ≤95% RH
Ingress Protection
IP67
Vandal Resistance
N/A
Series
Professional AI Series Cameras
Camera Type
Housing
Metal (Eyeball), Plastic (Case)
Pan/Tilt/Rotation
Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
ePoE
No

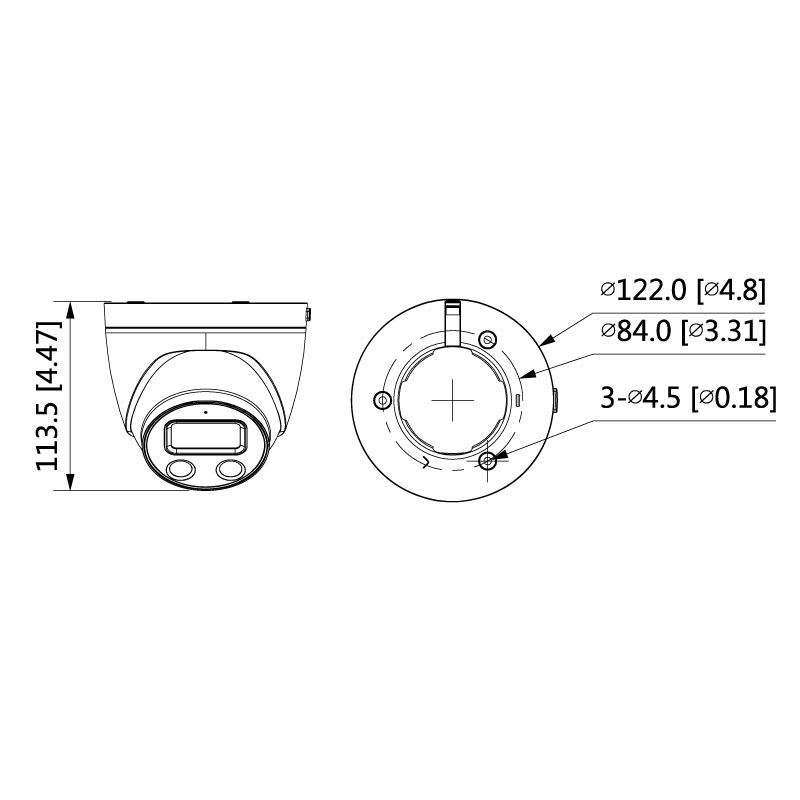

Dimensions
Ø122mm x 114mm
Net Weight
0.49kg
Other
Deterrence
White light strobe (normal / flash mode) and siren (configurable)
LED Illumination
1 x Strobe LED
Warranty (Years)
4
