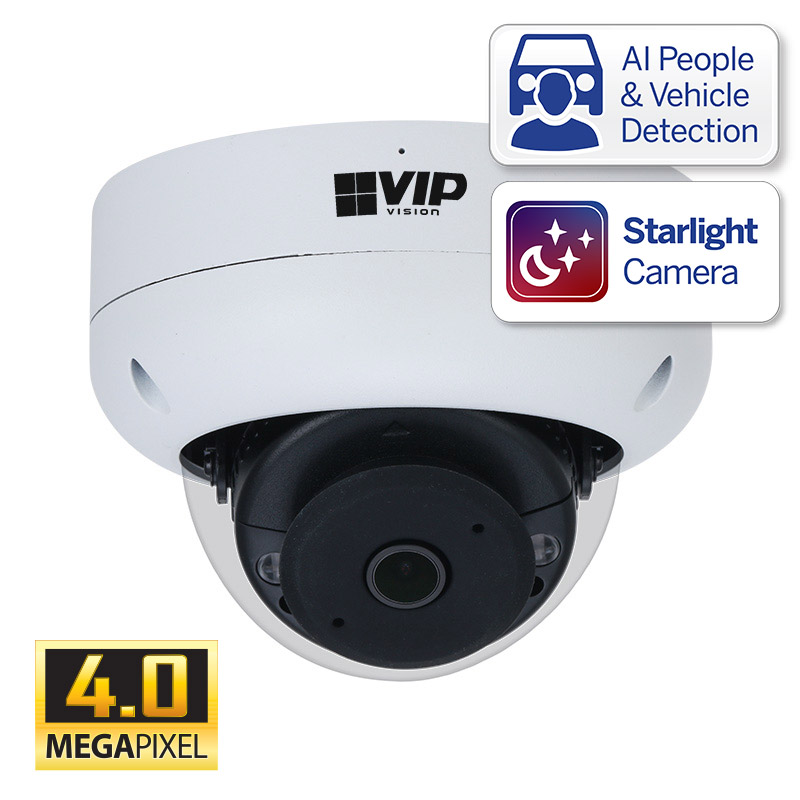

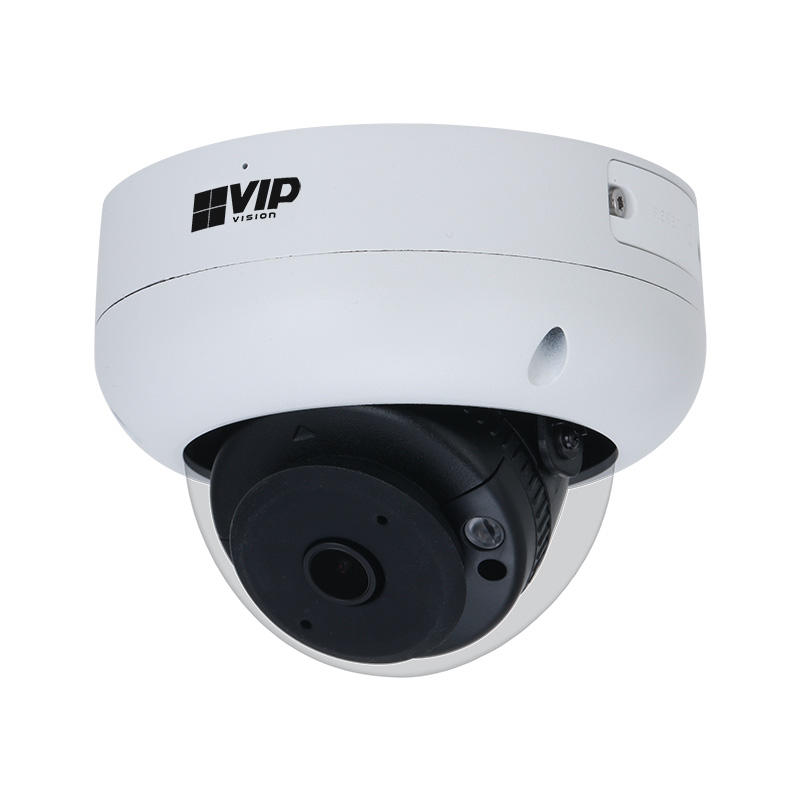

Professional AI Series 4.0MP Wide-Angle Dome

Brand logo
SKU VSIPP-4DIRW-I
Brand logo

Professional AI Series 4.0MP Wide-Angle Dome

SKU VSIPP-4DIRW-I

Applying machine-learned algorithms, this Professional AI VSIPP-4DIRW-I camera features intelligent Perimeter Protection and delivers superb image performance with low light colour and a wide-angle lens. The lens provides a panoramic 180° view that can replace multiple cameras in a CCTV system. Perfect for reducing time on installations!

• Stream up to 4.0MP (2880 x 1620) at 25fps
• 2.1mm panoramic lens for 170° field of view (Lens Distortion Control enabled; 180° when disabled)
• Back/highlight compensation & true WDR (120dB)
• 20m infrared range & virtual PTZ control
• Starlight sensor for superb low-light performance
• Intelligent AI detection to identify people & vehicles
• Smart Motion Detection (SMD+) & Perimeter Protection for AI alerts and to prevent false alarms
• MicroSD slot for recording at the edge up to 256GB
• 3D digital noise reduction & auto white balance
• IP67 weather rated housing for outdoor use
• Power via 12VDC or Power over Ethernet (802.3at)

Suggested Products

Suggested product image
Adapter for Ceiling & Wall Mount Brackets
VSBKTA106
Suggested product image

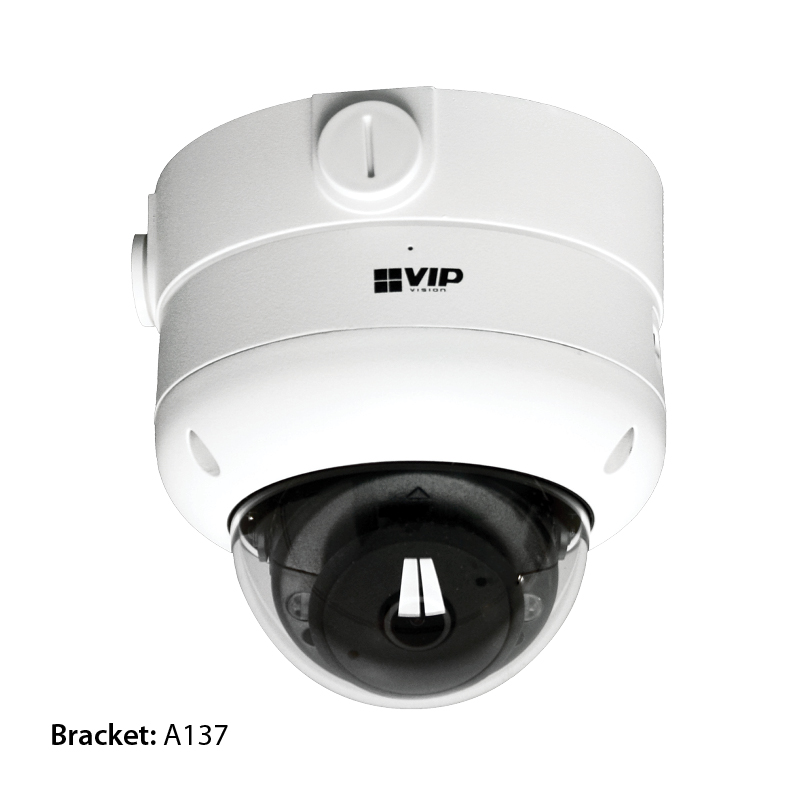

Adapter/Junction Box for Surveillance Cameras
VSBKTA137
Suggested product image

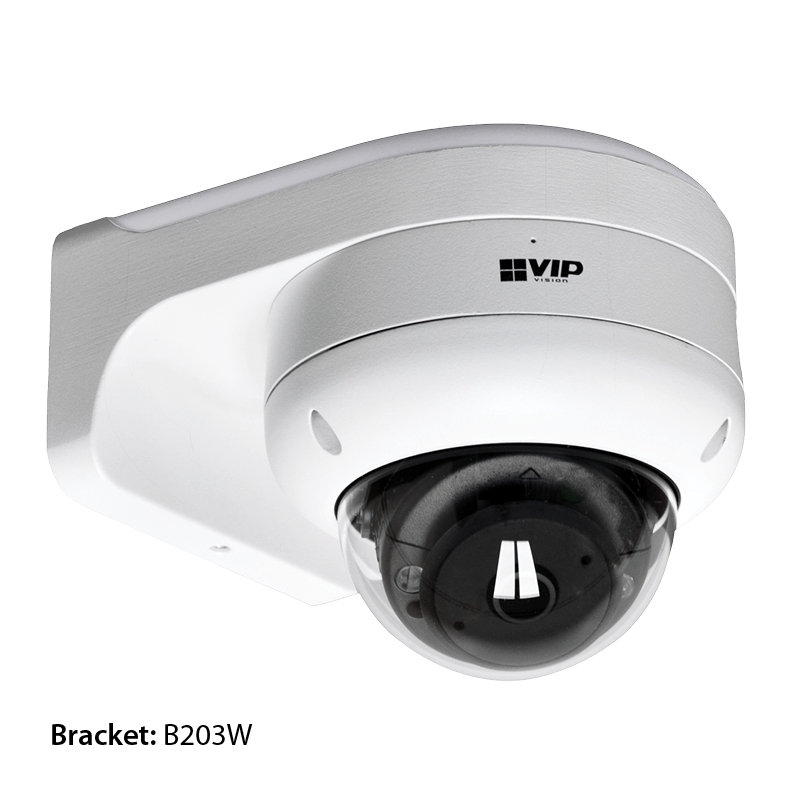

Right Angle Wall Mount Camera Bracket
VSBKTB203W
Suggested product image

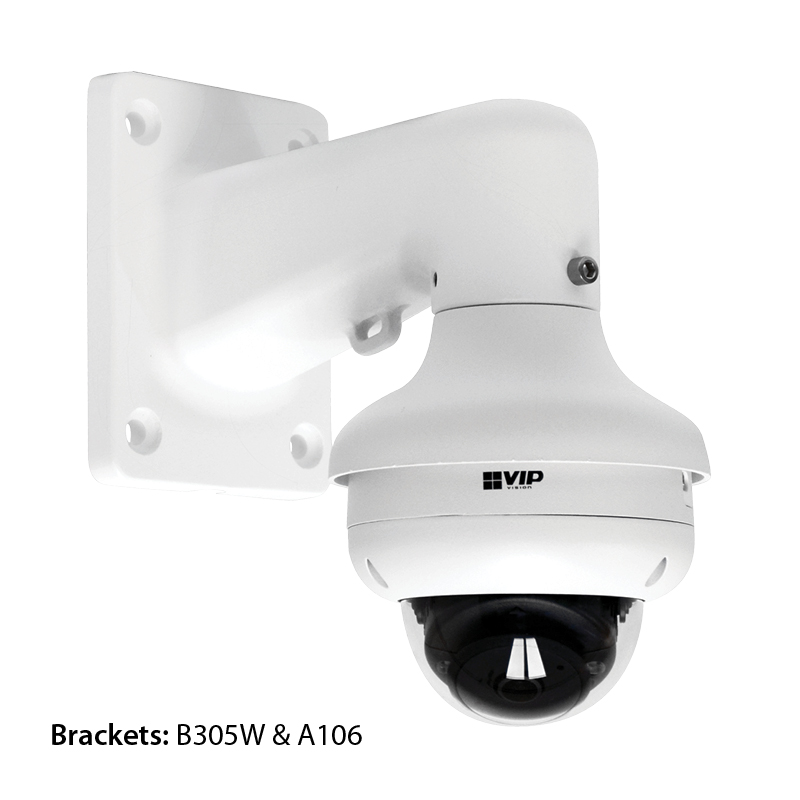

Right Angle Wall Mount Dome Bracket
VSBKTB305W
Suggested product image
Professional AI Series 4.0MP Wide-Angle Bullet
VSIPP-4BIRW-I

Links and Downloads

VIP Vision Professional AI Wide-Angle Dome Datasheet (PDF) 0.66 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/2.7" CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2880 (H) x 1620 (V)
RAM / ROM
512 MB/128 MB
Min Illumination
0.01 Lux / F2.0 (Color), 0.001 lux / F2.0 (B/W, 30 IRE), 0 lux (IR on)
S/N Ratio
>56 dB
Infrared System
3 x Infrared LED, 15m range, Auto/manual on/off control
Lens
Lens Type
Fixed
Lens / Iris
2.1mm F2.0 Fixed Focal Lens
Field of View
180°
Focus
0.6m Min. Focus Distance
DORI
Detect (25px/m)
52.0 m
Observe (63px/m)
20.8 m
Recognise (125px/m)
10.4 m
Identify (250px/m)
5.2 m
Video
Resolution
4.6MP (2880 x 1620) / 4.0MP (2688 x 1520)
Frame Rate (Main)
4.6MP (1 ~ 20fps) / 4.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265, H.264, H.264H, H.264B, MJPEG
Bit Rate
H.264/H.265: 3 kbps–8192 kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
No
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto / Manual
Noise Reduction
3D NR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
Face Detection
N/A
Face Attributes
N/A
People Counting
N/A
Heat Map
N/A
Event Trigger
Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access
Intelligent Search
Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
1 input (RCA Port)/ 1 output (RCA Port) / Audio Compression - G.711a; G.711Mu; G726; G.723
Alarm Interface
1 channel in: 5 mA 3-5 VDC / 1 channel out: 1,000 mA 30V DC or 500mA 50V DC
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS / FTP /SFTP
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
12 VDC/PoE
Power Consumption
<7.7W
Operating Conditions
-40°C ~ +60°C, ≤95% RH
Ingress Protection
IP67
Vandal Resistance
IK10
Series
Professional AI Series
Camera Type
Dome
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~ 355° Tilt: 0° ~ 80° Rotation: 0° ~ 355°
ePoE
No

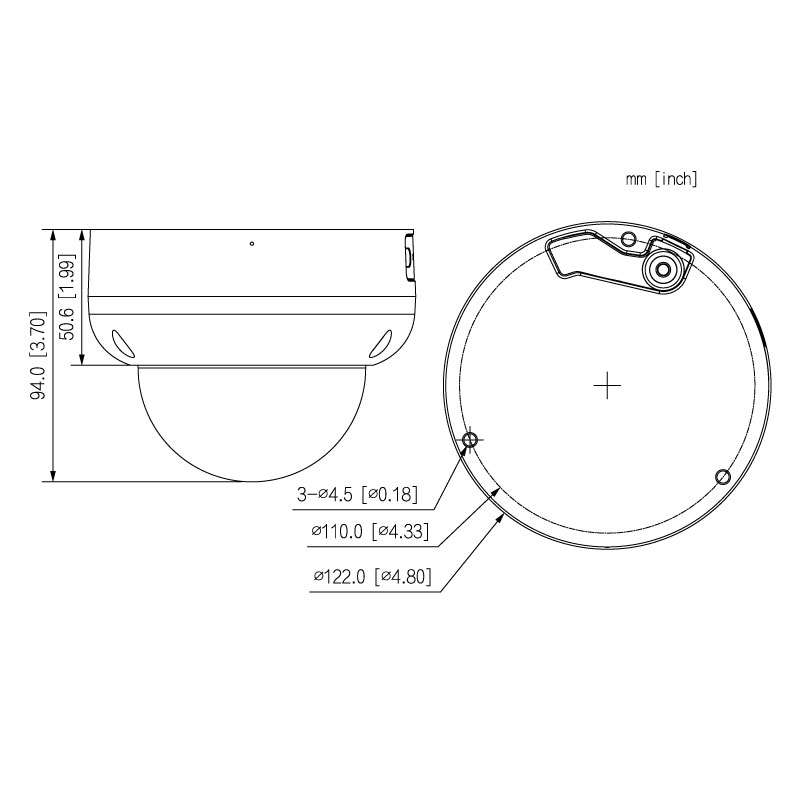

Dimensions
Ø122.0 mm x 94 mm
Net Weight
550 g
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
190 mm
Height
170 mm
Depth
190 mm
Weight
0.80 kg
