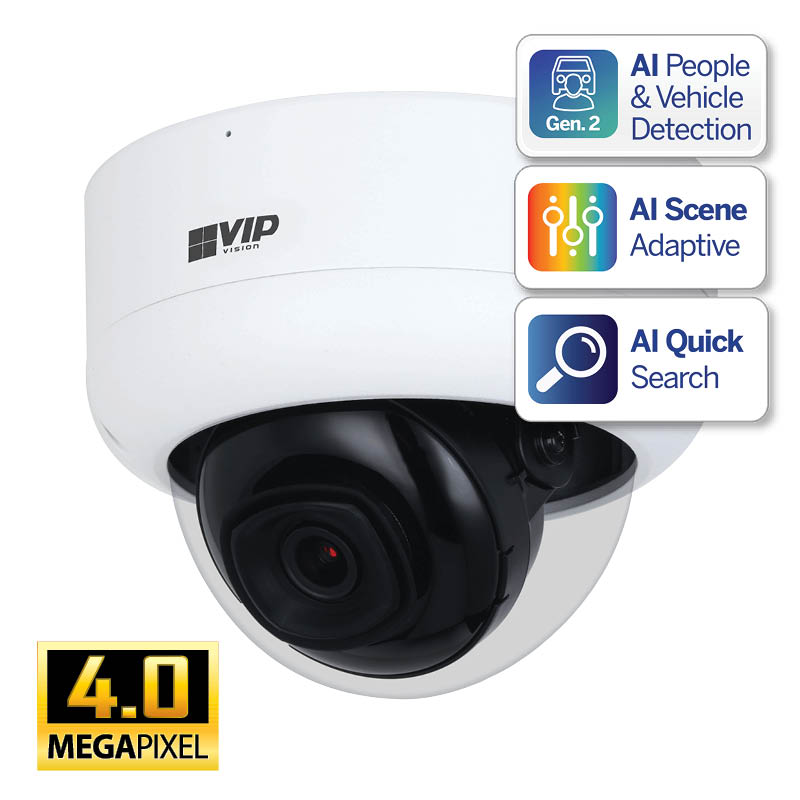

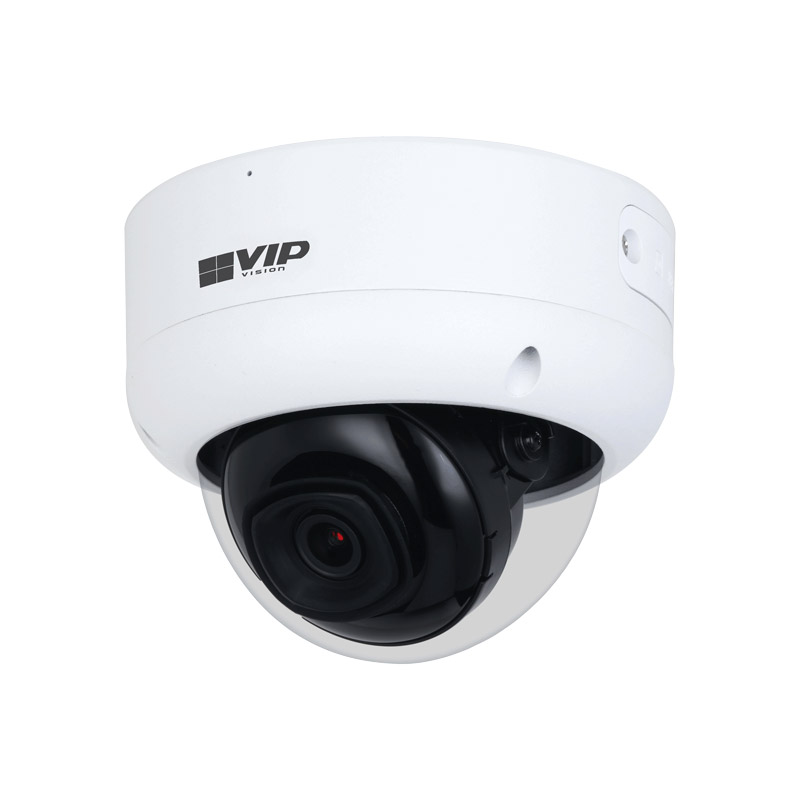

Professional AI Series 4.0MP Fixed Vandal Dome

SKU VSIPP-4DIRD-I2

Professional AI Series 4.0MP Fixed Vandal Dome

SKU VSIPP-4DIRD-I2

The Professional AI Series identifies people & vehicles using machine learning, to reduce false motion detection alerts and provide meaningful video event notifications in real-time. When used in conjunction with a VIP Vision NVR, person and vehicle events can be isolated in footage playback to improve surveillance efficiency.

Camera features:
• Stream up to 4.0MP (2688 x 1520) at 25fps
• 2.8mm fixed lens with 107° viewing angle
• H.265 encoding for efficient storage & streaming
• Up to 50m infrared range; true day/night (auto ICR)
• MicroSD slot for recording at the edge up to 256GB
• AI powered perimeter protection & smart motion detection (SMD 4.0)
• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
• AI weather and anti-flicker scene self-adaption
• Back/highlight compensation & true WDR (120dB)
• 3D digital noise reduction & auto white balance
• IP67 weather rated housing for outdoor use
• IK10 vandal resistant metal housing
• Includes Built-In Mic

Suggested Products

Adapter for Ceiling & Wall Mount Brackets
VSBKTA106

Adapter for Ceiling & Wall Mount Brackets
VSBKTA109

780mm Extender for Ceiling Mount Bracket
VSBKTA117

Adapter/Junction Box for Surveillance Cameras
VSBKTA123

Adapter/Junction Box for Surveillance Cameras
VSBKTA136

Triple Clamp Pole Mount Camera Bracket
VSBKTA150

Corner Wall Mount Camera Bracket
VSBKTA151

Dual Clamp Pole Mount Camera Bracket
VSBKTA152E

Right Angle Wall Mount Camera Bracket
VSBKTB203W

760mm Ceiling Mount Dome Bracket
VSBKTB220C

Right Angle Wall Mount Dome Bracket
VSBKTB305W

Specifications

Camera

Image Sensor

1/3’’ 4.0MP Progressive Scan CMOS

Max. Resolution

4.0 Megapixel

Effective Pixels

2688 (H) x 1520 (V)

RAM / ROM

512MB / 128MB

Min Illumination

0.005 Lux/F1.6 (Color)

S/N Ratio

> 56dB

Infrared System

3 x Infrared LED, 50m range, Auto/manual on/off control

Lens

Lens Type

Fixed

Lens / Iris

2.8mm Fixed Lens with Fixed Iris

Field of View

Horizontal: 102°, Vertical: 54°

Focus

Fixed / 0.7m Min. Focus Distance

DORI

Detect (25px/m)

64m

Observe (63px/m)

25m

Recognise (125px/m)

13m

Identify (250px/m)

Video

Resolution

4.0MP (2688 x 1520) to CIF (352 x 288)

Frame Rate (Main)

4.0MP (1 ~ 25fps)

Frame Rate (Sub)

D1 (1 ~ 25fps)

Frame Rate (Third)

1080p (1 ~ 25fps)

Video Compression

H.265 / H.264 / H.264B / MJPEG

Bit Rate

H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps

Bit Rate Control

Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night

Auto (ICR) / Color / B&W

Lighting Compensation

BLC / HLC / WDR (120dB) / AI SSA

Smart Scene Adaptive (SSA)

Yes

White Balance

Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom

Gain Control

Auto

Noise Reduction

3D DNR

Picture Control

Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° at 2.0MP resolution)

IVS

Intelligent Functions

Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared

Perimeter Protection

Tripwire & Intrusion (Add recognition of humans & vehicles)

Face Detection

N/A

Face Attributes

N/A

People Counting

N/A

Heat Map

N/A

Event Trigger

Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly

Intelligent Search

Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP

Streaming Method

Multicast

Max. User Access

20 Users

Interface

Video Interface

N/A

Audio Interface

1 input (RCA Port) / 1 output (RCA Port) / Audio Compression - G.711a; G.711Mu; G726; AAC

Alarm Interface

1 channel in: 5mA 5VDC/ 1 channel out: 300mA 12VDC

RS485

N/A

Edge Storage

MicroSD Card (up to 256GB) / NAS

Interoperability

ONVIF / P2P / CGI / Milestone / Genetec

Environmental

Power Supply

12VDC / PoE (802.3af)

Power Consumption

<8.3W

Operating Conditions

-30°C ~ +60°C / ≤95% RH

Ingress Protection

IP67

Vandal Resistance

IK10

Series

Professional AI Series

Camera Type

Dome

Housing

Metal

Pan/Tilt/Rotation

Pan: 0° ~ 355°, Tilt: 0° ~ 65°, Rotation: 0° ~ 355°

ePoE

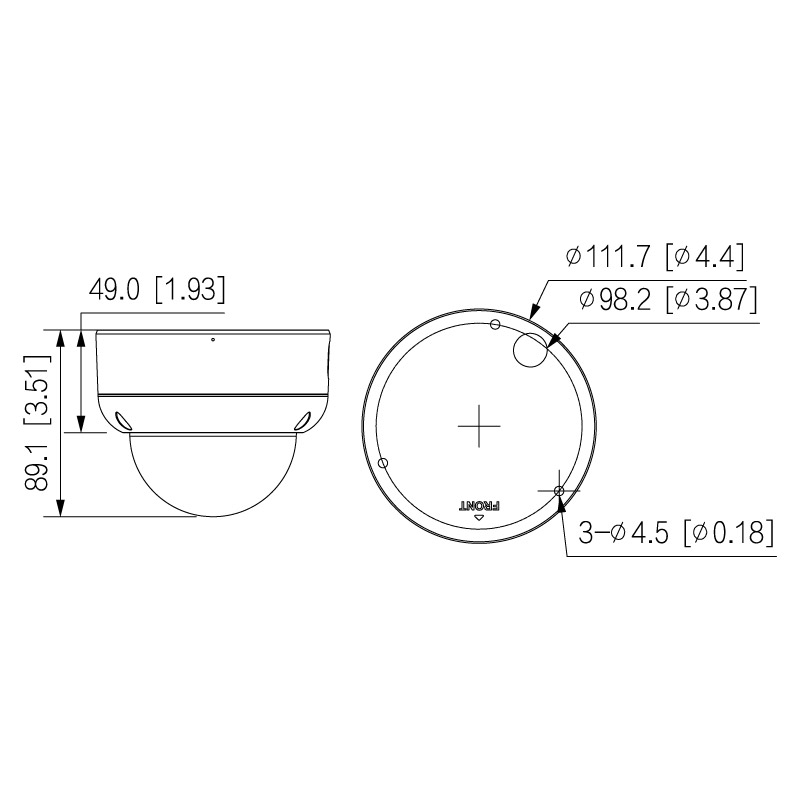

Dimensions

Ø111.7mm x 89.1mm

Net Weight

0.516kg

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

101 mm

Height

26 mm

Depth

146 mm

Weight

0.60 kg
