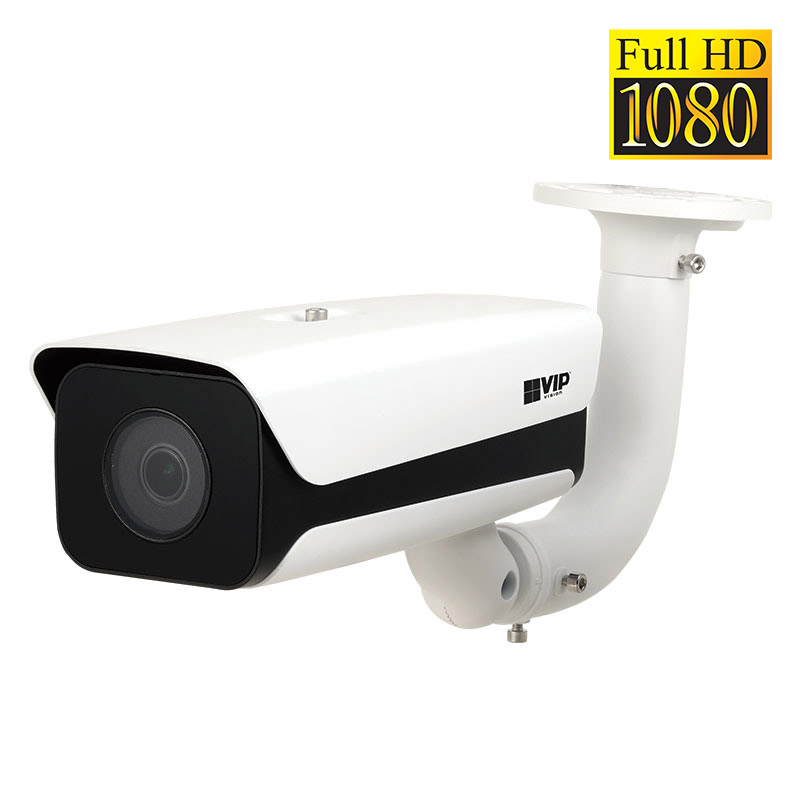

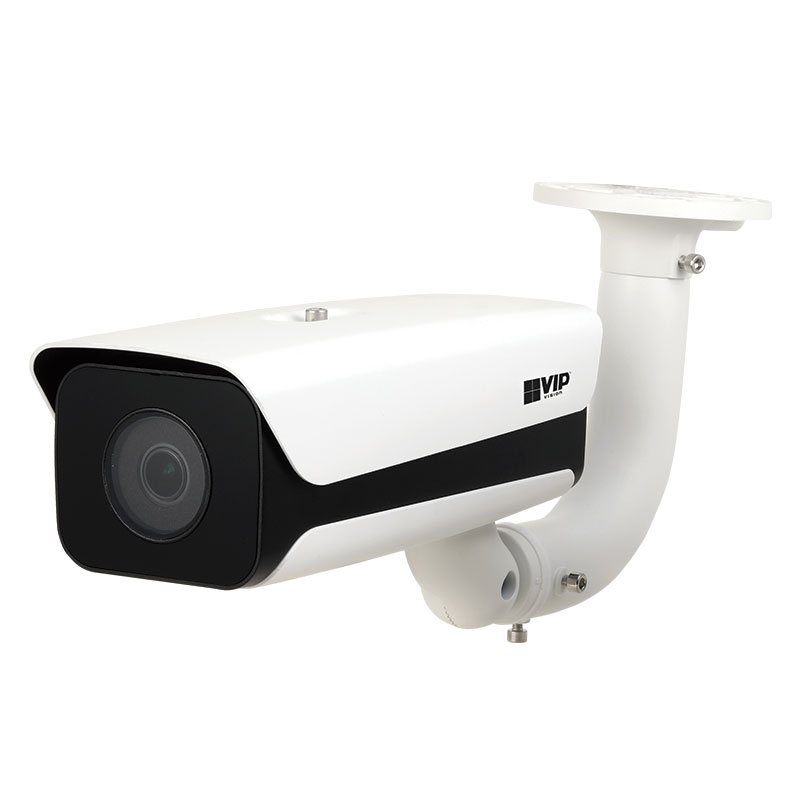

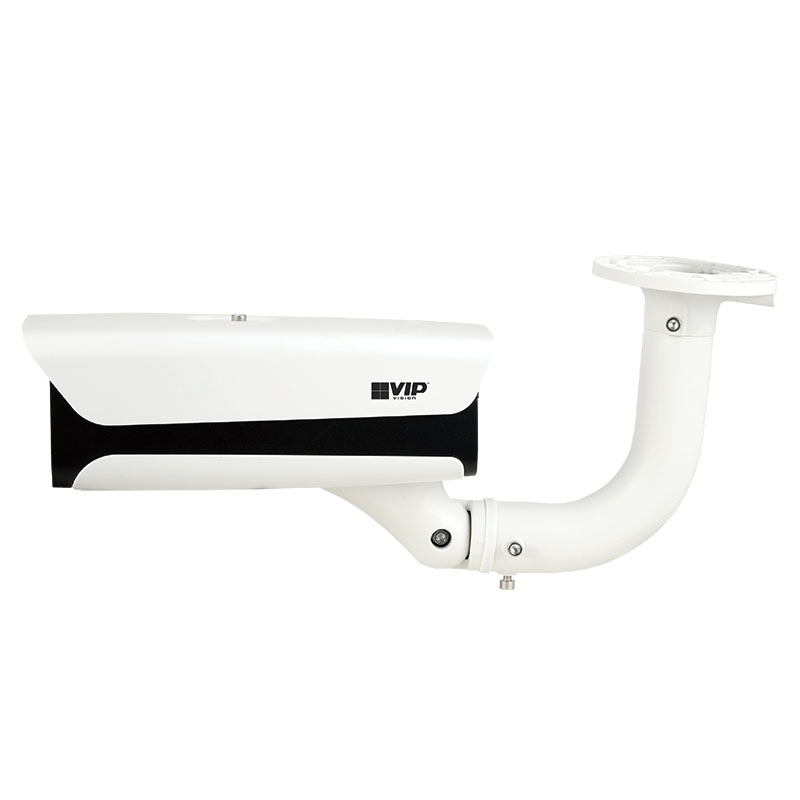

VSIPNP-2BIRM-I: Traffic AI Series 2.0MP Motorised AI ANPR Bullet

Specifications

Camera

Image Sensor

1/2.8’’ 2.0MP Progressive Scan CMOS

Max. Resolution

2.0 Megapixel

Effective Pixels

1920 (H) x 1080 (V)

RAM / ROM

N/A

Min Illumination

0.005 Lux/F1.3 (Color), 0 Lux/F1.3 (IR on)

S/N Ratio

N/A

Infrared System

6 x Infrared LED, 12m range, Auto/manual on/off control

Lens

Lens Type

Motorised Varifocal

Lens / Iris

2.7 ~ 13.5mm F1.3 Motorised Varifocal Lens with Auto Iris

Field of View

Horizontal: 119°~32°, Vertical: 65°~18°

Focus

Auto Focus / 3 ~ 8m ANPR Focus Distance

Video

Resolution

1080p (1920 x 1080) to D1 (704 x 576)

Frame Rate (Main)

1080p (1 ~ 25fps)

Frame Rate (Sub)

D1 (1 ~ 25fps)

Frame Rate (Third)

N/A

Video Compression

H.265 / H.264M / H.264H / H.264B

Bit Rate

32 ~ 16384Kbps

Bit Rate Control

Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night

Auto (ICR) / Color / B&W

Lighting Compensation

BLC / HLC / WDR (120dB)

Smart Scene Adaptive (SSA)

White Balance

Auto / Manual

Gain Control

Auto / Manual

Noise Reduction

3D DNR

Picture Control

N/A

IVS

Yes

Intelligent Functions

Number Plate Edge Enhancement, Number Plate Recognition, Loop/Video Detection, Snapshot, OSD (Time, Location, Number Plate, Lane No.), White List (up to 10000), Barrier Control (1ch Relay Out), Vehicle Data Structuring (Vehicle Size, Vehicle Colour & Vehicle Direction)

Vehicle Colour Detection

Supports 11 Vehicle Colours (Daytime Only): White, Black, Blue, Red, Yellow, Green, Pink, Purple, Grey, Brown, Orange, Silver

Vehicle Size Detection

Support 11 Vehicle Sizes: Large Bus, Medium Bus, Heavy Truck, Medium Truck, Light Truck, Sedan, Minivan, SUV, MPV, Pick Up and Minicar

Network

Ethernet

RJ-45 (100/1000 Base-T)

Protocol

IPv4; IPv6; HTTP; TCP/IP; UDP; NTP; DHCP; DNS

Streaming Method

Unicast / Multicast

Max. User Access

20 Users

Interface

Video Interface

N/A

Audio Interface

1 Input / 1 Output

Alarm Interface

3 Input / 3 Output

RS485

Yes

Edge Storage

MicroSD Card Slot (up to 64GB) / Local PC

Interoperability

ONVIF / SDK / CGI

Environmental

Power Supply

12VDC / PoE+ (802.3at)

Power Consumption

N/A

Operating Conditions

-30° ~ +65° C / Less than 95% RH

Ingress Protection

IP67

Weather Resistance

Yes

Vandal Resistance

N/A

Series

Traffic AI Series

Camera Type

Bullet

Housing

N/A

Pan/Tilt/Rotation

N/A

Tri-Axis Mounting

ePoE

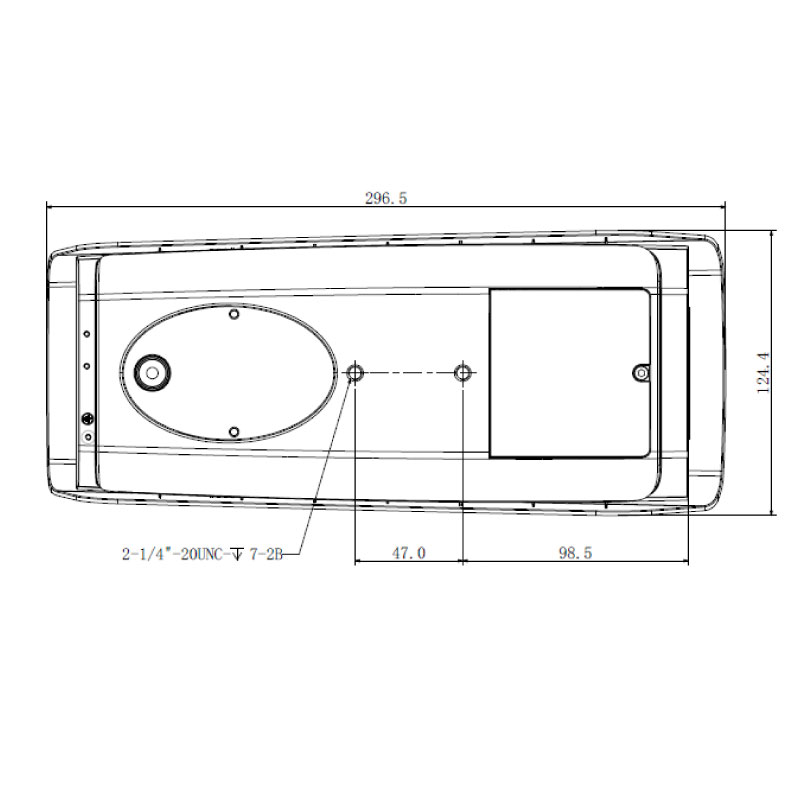

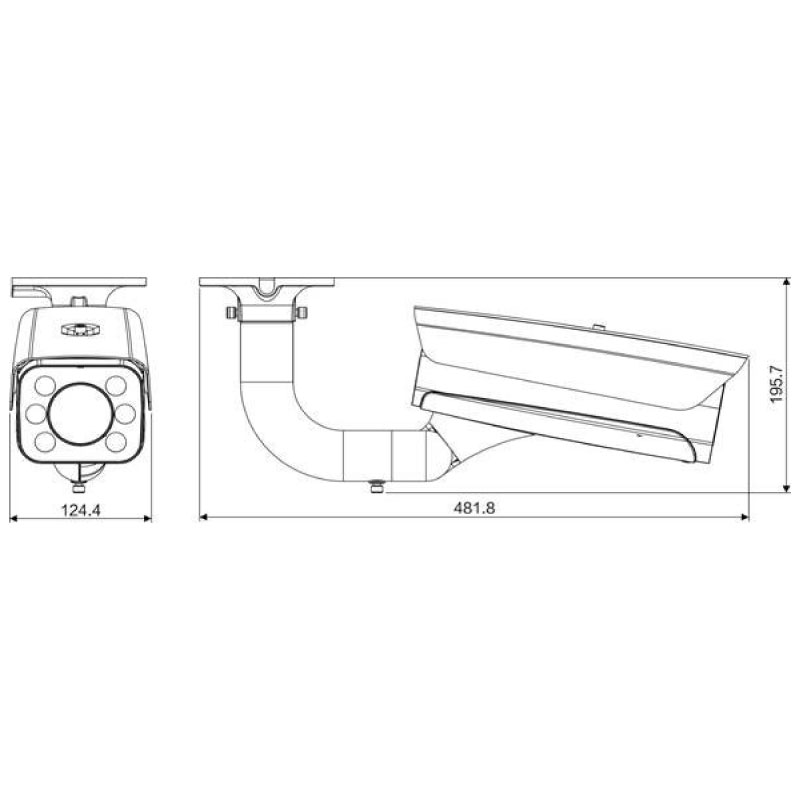

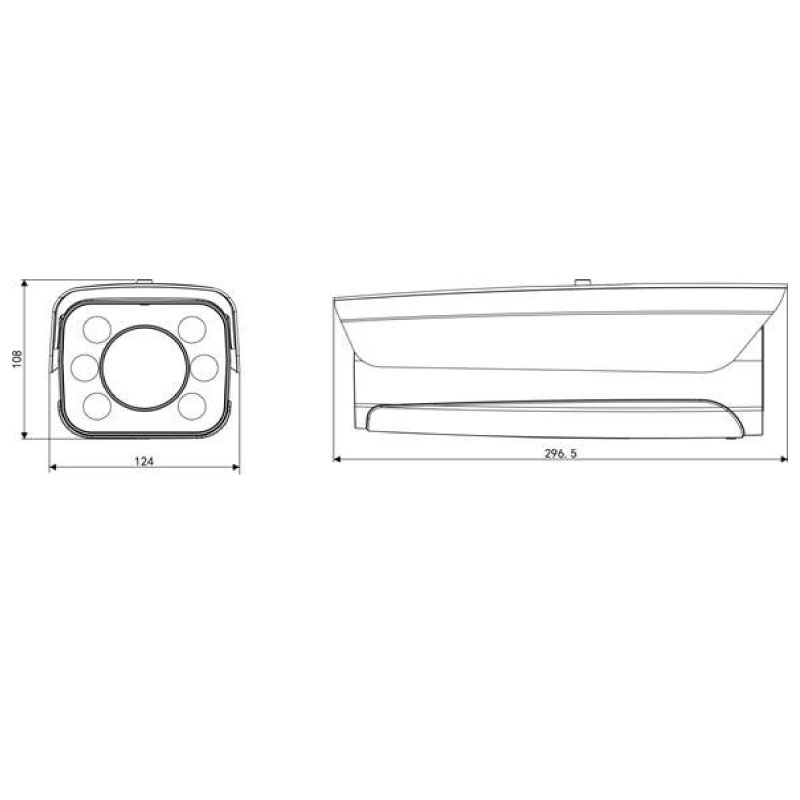

Dimensions

297 x 124 x 108mm (without bracket) / 482 x 124 x 196mm (with bracket)

Net Weight

1.9kg (without bracket) / 3.3kg (with bracket)

Warranty (Years)
