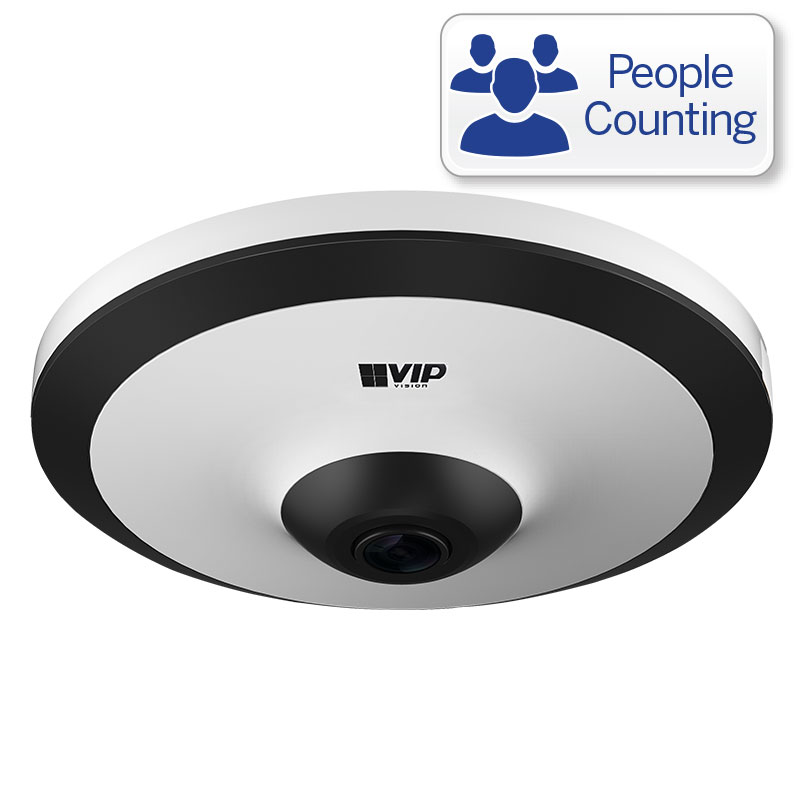

Specialist AI Series 5.0MP People Counting 360° Fisheye Dome

Brand logo
SKU VSIPFE-5IR-I
Brand logo

Specialist AI Series 5.0MP People Counting 360° Fisheye Dome

SKU VSIPFE-5IR-I

This product is Coming Soon. Please contact us for more information.

The VSIPFE-5IR-I performs the duties of multiple cameras, with the powerful benefit of AI-powered people counting and heat mapping functions. Receive real-time alerts when a certain number of people enter an area with AI people & area counting or set up heat map to observe the amount of time people spend in areas.

Camera features:
• Stream up to 5.0MP (2592 x 1944) at 25fps
• Circular fisheye lens with 360° viewing angle

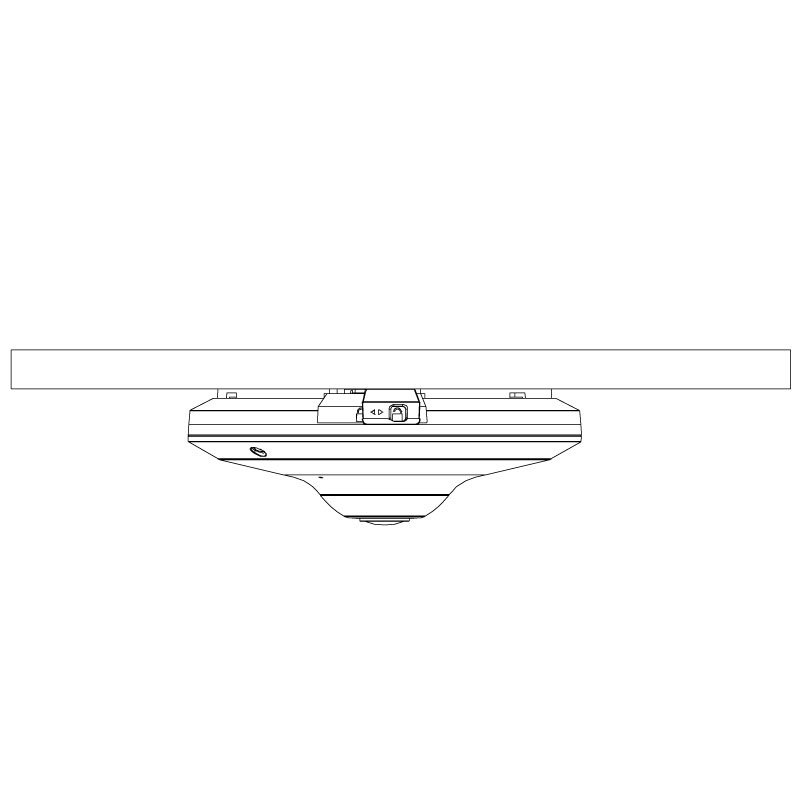

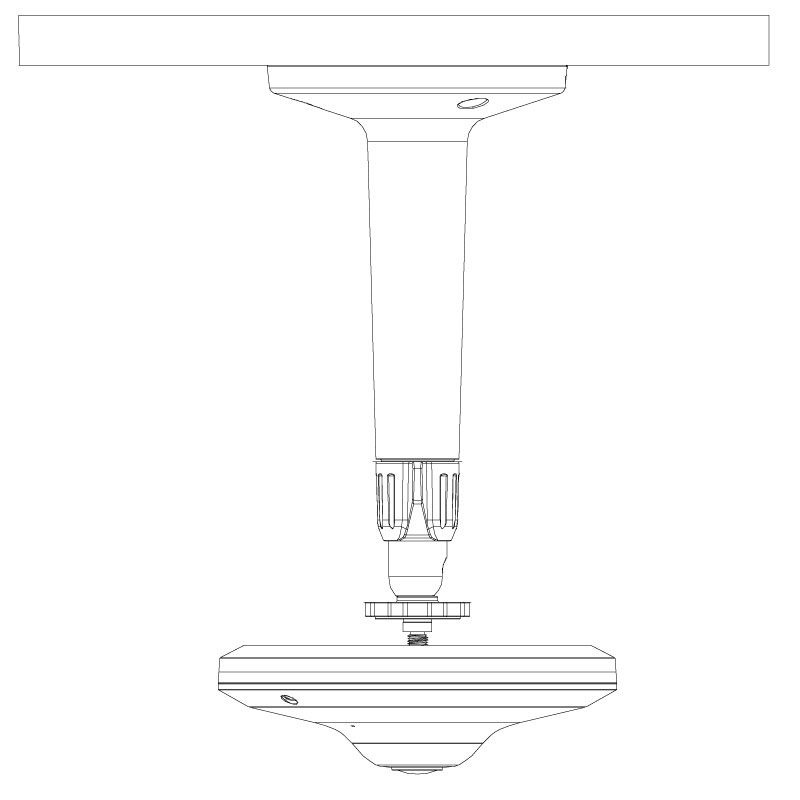

• Dewarp modes* for ceiling, floor & wall mounting
• Virtual PTZ, panorama, & camera split dewarp modes
• Up to 10m infrared range; true day/night (auto ICR)
• Set up AI-enhanced people tracking for real-time alerts, statistics and business analytics
• Heat map, tripwire, intrusion & regions of interest
• MicroSD card slot for edge recording up to 256GB
• Built in mic and audio/alarm inputs and outputs

* Check the Supported NVR specification to see if Fisheye Dewarping is supported by that NVR model

Suggested Products

Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA136
Suggested product image

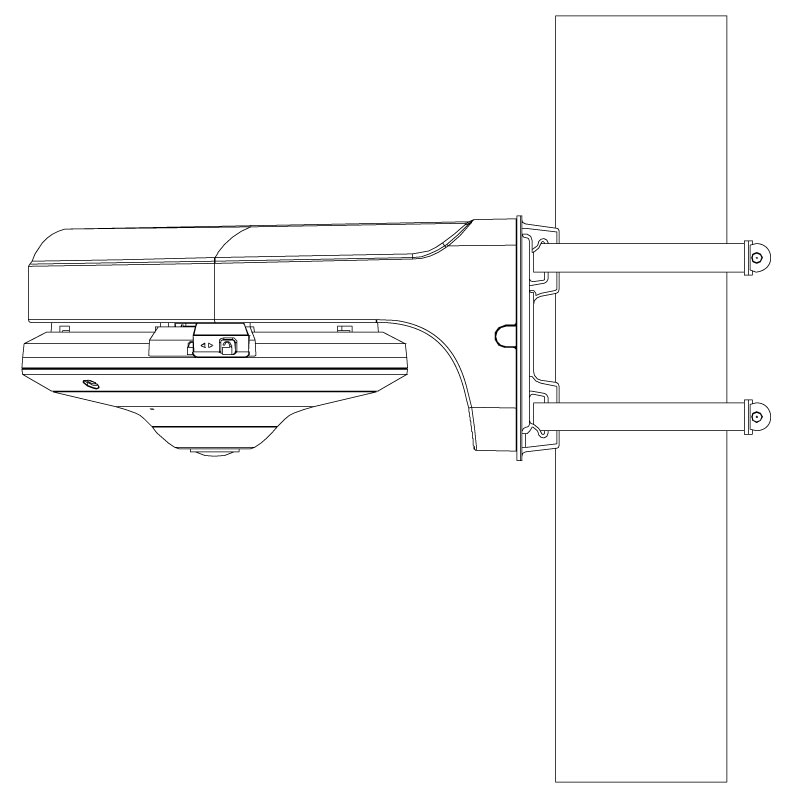

Dual Clamp Pole Mount Camera Bracket
VSBKTA152E
Suggested product image

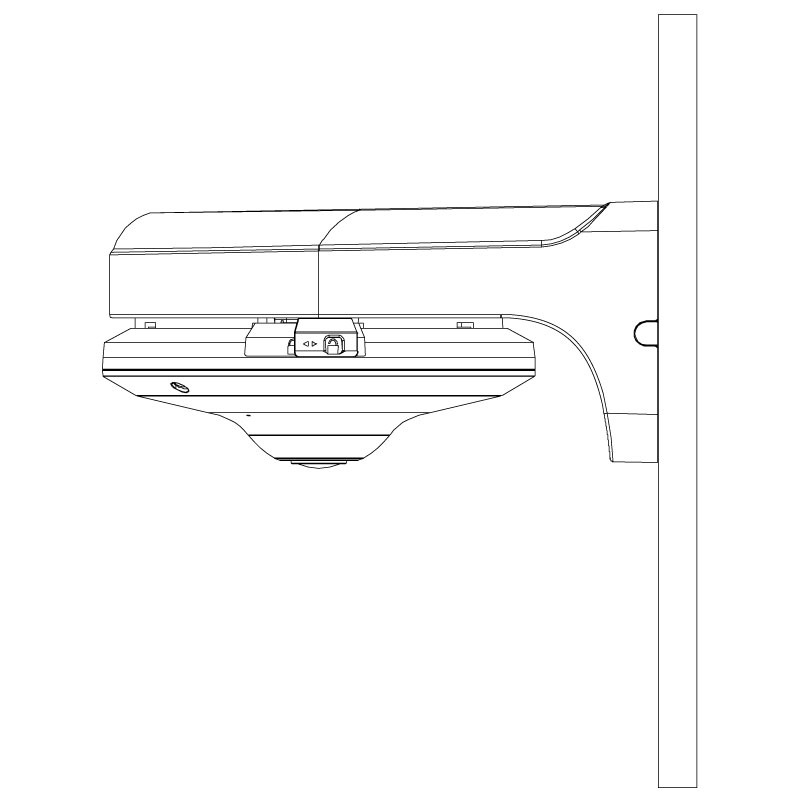

Right Angle Wall Mount Camera Bracket
VSBKTB203W

Links and Downloads

VIP Vision Specialist AI 5.0MP People Counting Fisheye Datasheet (PDF) 2.27 MB
Accessory Compatibility Guide 2023 (PDF) 1.60 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/2.7’’ 5.0MP Progressive Scan CMOS
Max. Resolution
5.0 Megapixel
Effective Pixels
2592 (H) x 1944 (V)
RAM / ROM
512MB / 128MB
Min Illumination
0.006lx/F2.0 (Colour)
S/N Ratio
>56dB
Infrared System
3 x Infrared LED, 10m range, Auto/manual on/off control
Lens
Lens Type
Fixed
Lens / Iris
1.4mm F2.0 Fixed Circular Fisheye Lens
Field of View
Horizontal: 180°, Vertical: 180°
Focus
Fixed / 0.2m Min. Focus
DORI
Detect (25px/m)
28m
Observe (63px/m)
11m
Recognise (125px/m)
6m
Identify (250px/m)
3m
Video
Resolution
5.0MP (2592 x 1944) to CIF (352 x 288)
Frame Rate (Main)
5.0MP (1~25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
720p (1 ~ 25fps)
Video Compression
H.265+ / H.265 / H.264+ / H.264 / H.264H / H.264B / MJPEG
Bit Rate
H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / True WDR (120dB)
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Dewarping Modes
Original (No dewarp) / Panoramic / Double Panoramic / Virtual PTZ / Original + 3 split, + 4 split, + 8 split
IVS
Intelligent Functions
Tripwire, Intrusion, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Heat Map
People Counting
Supports Area People Counting (No. of people, People quantity thresholds, 4 zones), Heat Mapping (No.of people and time spent)
Network
Ethernet
RJ-45 (100/1000 Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
20 Users (Total bandwidth: 64M)
Interface
Video Interface
N/A
Audio Interface
1 input (RCA Port), 1 Built-in Mic / 1 output (RCA Port) / Audio Compression - PCM; G.711a; G.711Mu; G726; AAC
Alarm Interface
1 Input (5mA 3VDC ~ 5VDC), 1 Output (300mA 12VDC)
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS / FTP / SFTP
Interoperability
ONVIF Profile S, G & T / CGI / P2P / Milestone / Genetec
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
<3.6W (12VDC) / <4.4W (PoE) / <8.8W (Max.)
Operating Conditions
-10° ~ +50° C / Less than 95% RH
Ingress Protection
N/A
Vandal Resistance
N/A
Series
Specialist AI Series
Camera Type
Fisheye Dome
Housing
Metal + Plastic
Pan/Tilt/Rotation
N/A
ePoE
No

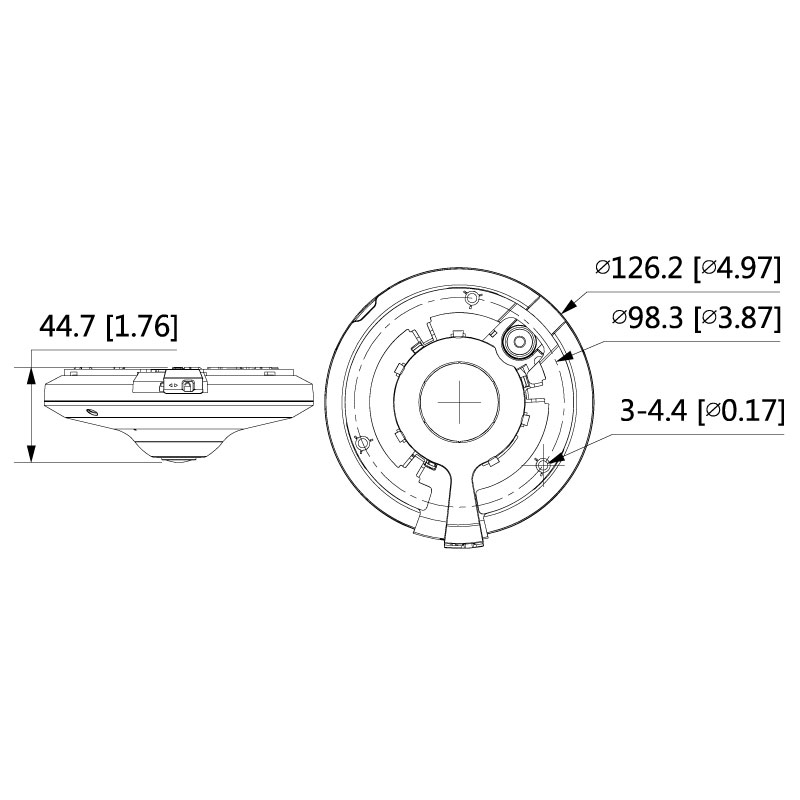

Dimensions
Ø126.2mm x 44.6mm
Net Weight
0.3kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
340 mm
Height
168 mm
Depth
168 mm
Weight
1.70 kg
