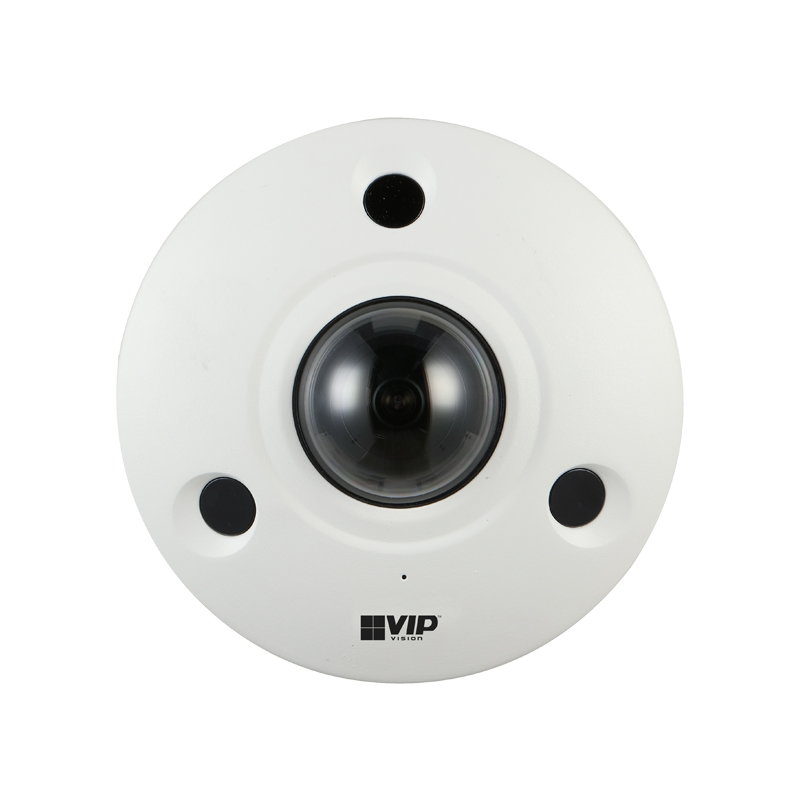

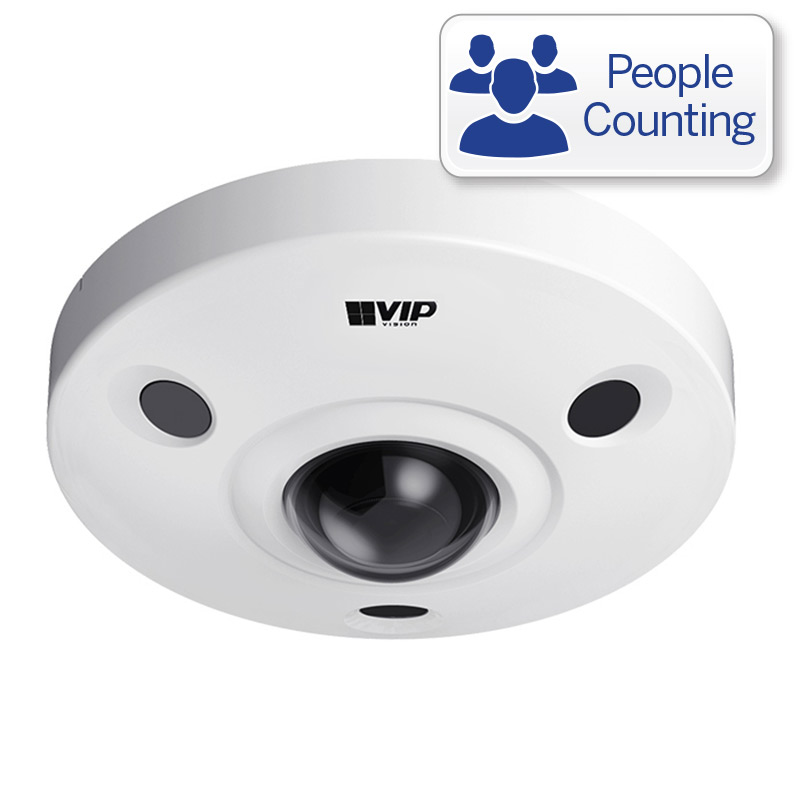

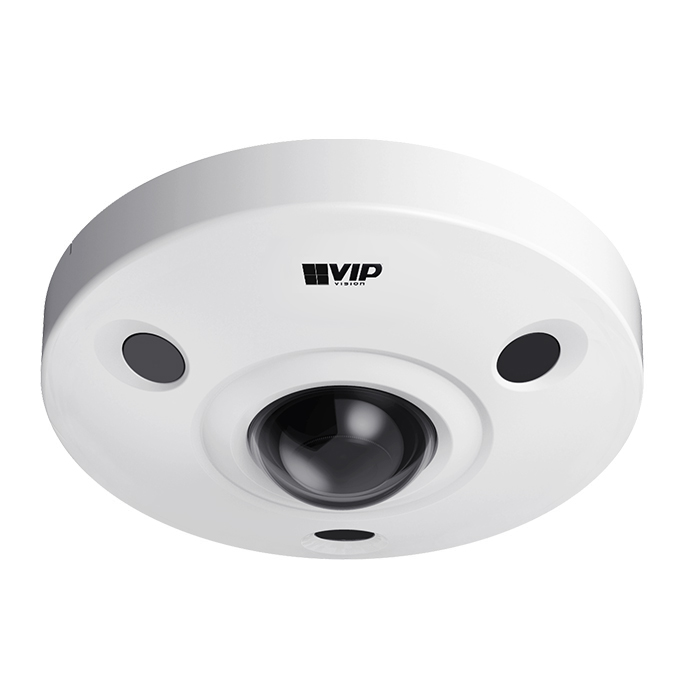

Specialist AI Series 12.0MP People Counting 360° Fisheye Dome

SKU VSIPFE-12IR-I

Specialist AI Series 12.0MP People Counting 360° Fisheye Dome

SKU VSIPFE-12IR-I

The VSIPFE-12IR-I performs the duties of multiple cameras, with the powerful benefit of AI-powered people counting, queue management and heat mapping. Receive alerts when a certain number of people enter an area with queue management or set up heat map to observe the amount of time spent in areas.

Camera features:
• Stream up to 12.0MP (4000 x 3000) at 25fps
• Circular fisheye lens with 360° viewing angle

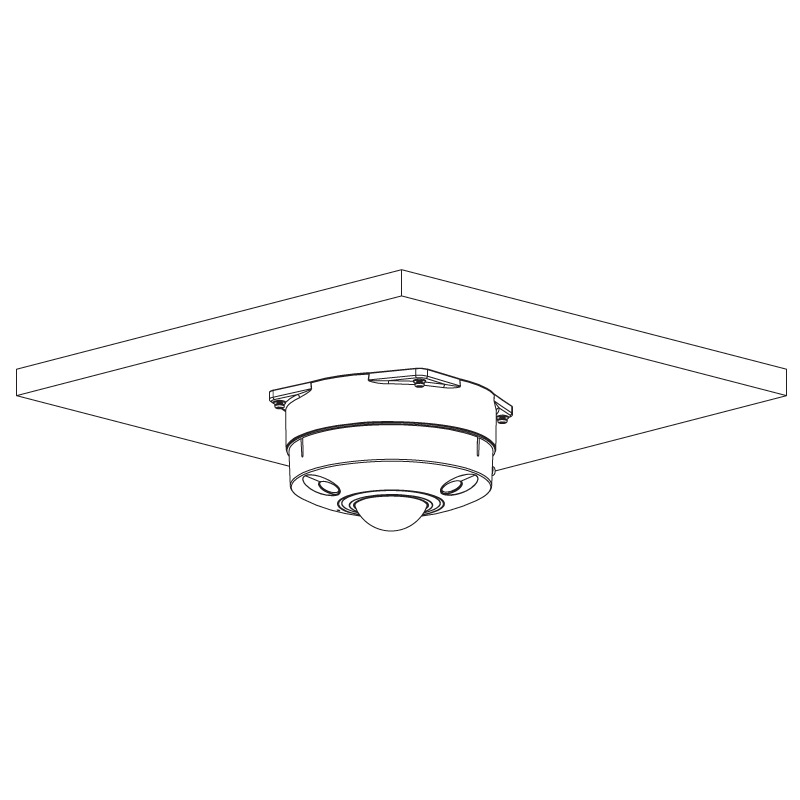

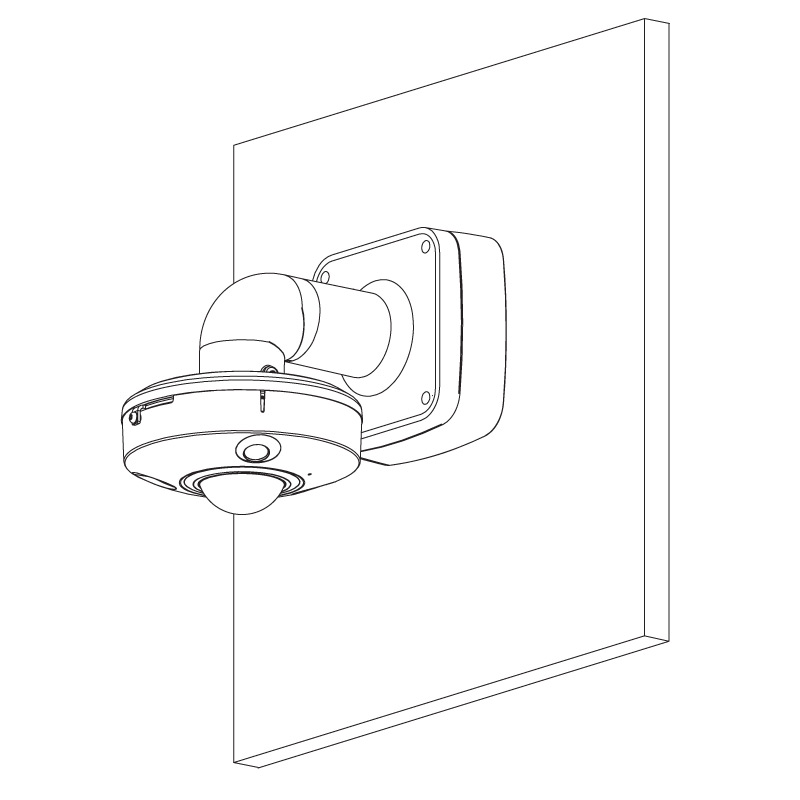

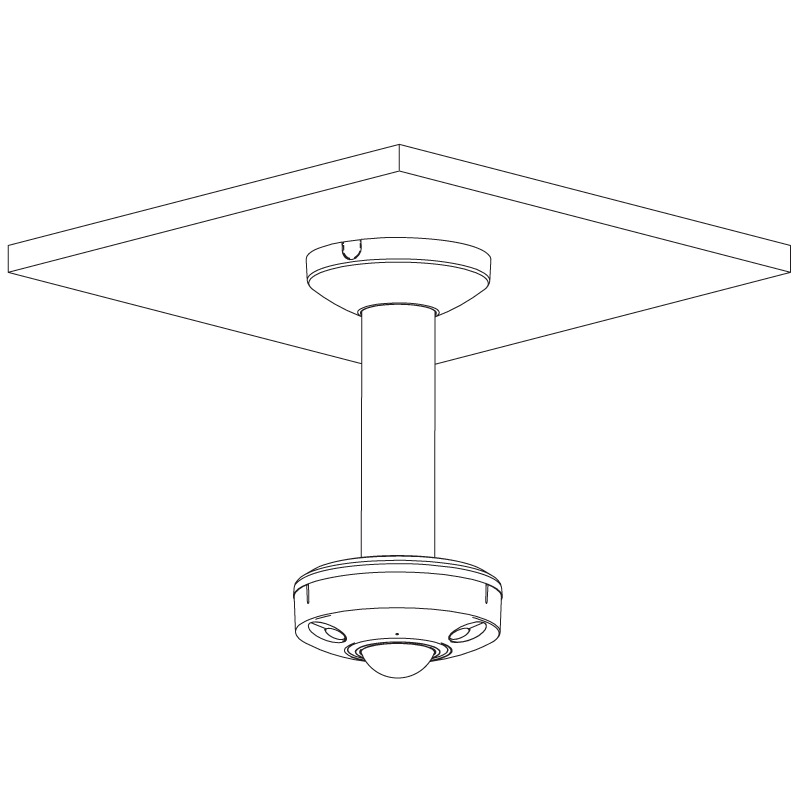

• Dewarp modes (NVR64ULT8S, NVR32ULTNPV2, NVR32PRO16P3, NVR24PRO6, NVR16PRO7, NVR8PRO7) for ceiling, floor & wall mounting
• Virtual PTZ, panorama, & camera split dewarp modes
• Up to 10m infrared range; true day/night (auto ICR)
• Set up AI-enhanced people tracking for real-time alerts, statistics and business analytics
• Heat map, queue management & regions of interest
• MicroSD card slot for edge recording up to 128GB
• IP67 weather & IK10 vandal resistant housing

* Check the Supported NVR specification to see if Fisheye Dewarping is supported by that NVR model

Suggested Products

Adapter for Ceiling Mount Brackets
VSBKTA105

Ceiling/Wall Mount Adapter for PTZ Cameras
VSBKTA110

220mm Extender for Ceiling Mount Bracket
VSBKTA112

420mm Extender for Ceiling Mount Bracket
VSBKTA113

Adapter/Junction Box for Surveillance Cameras
VSBKTA132

Triple Clamp Pole Mount Camera Bracket
VSBKTA150

Corner Wall Mount Camera Bracket
VSBKTA151

Dual Clamp Pole Mount Camera Bracket
VSBKTA152E

Ceiling Mount Camera Bracket
VSBKTB300C

Right Angle Wall Mount Camera Bracket
VSBKTB302S-2

Links and Downloads

VIP Vision Specialist AI 12.0MP People Counting Fisheye Datasheet (PDF) 3.02 MB

VIP Vision Specialist AI People Counting Fisheye Quick Start Guide (PDF) 1.15 MB

Network Camera Web 3.0 Operation Manual V2.0.5 8.46 MB

Accessory Compatibility Guide 2023 (PDF) 1.60 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

Camera

Image Sensor

1/1.7" 12.0MP Progressive Scan CMOS

Max. Resolution

12.0 Megapixel

Effective Pixels

4000 (H) x 3000 (V)

RAM / ROM

4GB / 4GB

Min Illumination

0.001 Lux/F2.0 (colour 1/3s), 0.01 Lux/F2.0 (colour 1/30s), 0 Lux/F2.0 (IR on)

S/N Ratio

49.7dB

Infrared System

3 x Infrared LED, 10m range

Lens

Lens Type

Fixed

Lens / Iris

1.85mm F2.0 Fixed Focal Lens with Fixed Aperture

Field of View

Horizontal: 185°, Vertical: 180°

Focus

Fixed

DORI

Detect (25px/m)

40m

Observe (63px/m)

16m

Recognise (125px/m)

Identify (250px/m)

Video

Resolution

12.0MP (4000 x 3000) to CIF (352 x 288)

Frame Rate (Main)

12.0MP (1 ~ 25fps)

Frame Rate (Sub)

D1 (1 ~ 25fps)

Frame Rate (Third)

D1 (1 ~ 25fps)

Video Compression

H.265, H.264, H.264H, H.264B, MJPEG

Bit Rate

H264: 88Kbps-16384Kbps ;H265: 52Kbps-16384Kbps

Bit Rate Control

Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night

N/A

Lighting Compensation

DWDR

Smart Scene Adaptive (SSA)

White Balance

Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom

Gain Control

Manual

Noise Reduction

3D DNR

Dewarping Modes

Original (Dewarp Supported) / Panoramic / Double Panoramic / Virtual PTZ / Original + 3 split, + 4 split, + 8 split

IVS

Intelligent Functions

Intrusion, Tripwire, Region of Interest (4 zones), Privacy Masking (4 zones) Smart Infrared, Heat Map

People Counting

Queue Management (Triggers alarm when designated amount of people enters zone, 4 zones), Heat Mapping (Number of people and time spent)

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP, NTP

Streaming Method

Unicast / Multicast

Max. User Access

20 Users

Interface

Video Interface

N/A

Audio Interface

1 Channel Input (RCA), 1 Built-in Mic / 1 Channel Output / Audio Compression: G.711A, G.711Mu, G726, AAC

Alarm Interface

2 Channel Input / 2 Channels Output

RS485

N/A

Edge Storage

MicroSD Card (up to 256GB) / FTP

Interoperability

ONVIF (Profile S / Profile G), GB/T28181, CGI

Environmental

Power Supply

12VDC / PoE

Power Consumption

<9.2W (12VDC) / <12.9W (PoE)

Operating Conditions

-30°C to +45°C, ≤95% RH

Ingress Protection

IP67

Vandal Resistance

IK10

Series

Specialist AI Series

Camera Type

Fisheye Dome

Housing

Metal, Plastic

Pan/Tilt/Rotation

N/A

ePoE

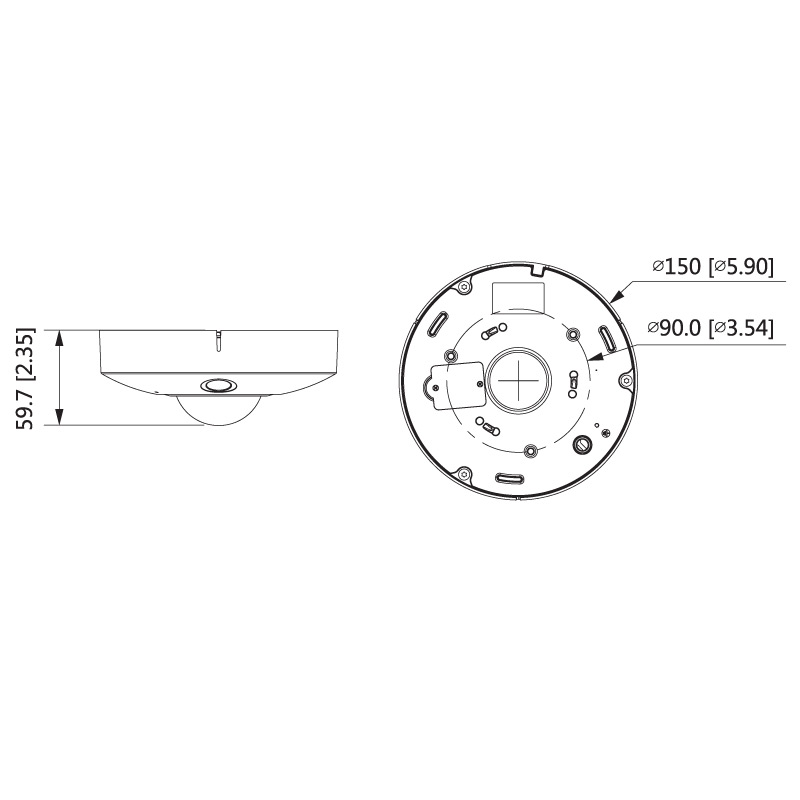

Dimensions

Ø150mm x 60mm

Net Weight

0.77kg

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

340 mm

Height

168 mm

Depth

168 mm

Weight

1.70 kg
