Camera
Image Sensor
1/2.8’’ 4.0MP Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
512MB / 128MB
Ultra Low Light Colour
N/A
Min Illumination
0.005 Lux/F1.5 (Colour), 0.0005 Lux/F1.5 (B&W), 0 Lux (IR on)
S/N Ratio
> 56dB
Infrared
Yes
Infrared System
3 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type
Fixed
Lens / Iris
2.7~13.5mm F1.5 Motorised Varifocal Lens with Fixed Iris
Field of View
Horizontal: 99~29°, Vertical: 53~16°
Focus
Fixed
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
64m (wide) / 210m (tele)
Observe (63px/m)
25m (wide) / 84m (tele)
Recognise (125px/m)
13m (wide) / 42m (tele)
Identify (250px/m)
6.4m (wide) / 21m (tele)
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
2.0MP / 1080p (1 ~ 25fps)
Video Compression
AI H.264/265, Smart H.264+/265+, H.264/+, H.265/+, / MJPEG
Bit Rate
H.264 / H.265: 32 ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° at 4.0MP resolution and lower)
IVS
IVS
Yes
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Heat Map
Network
Ethernet
RJ-45 (100/1000 Base-T)
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Streaming Method
N/A
Max. User Access
20 (Total bandwidth: 80Mbps)
RTMP Support
Yes
Interface
Video Interface
N/A
Audio Interface
1 input / 1 output (RCA), Compression: G.711a; G.711Mu; G726; AAC
Alarm Interface
1 input (wet contact, 5mA 3~5VDC), 1 output (dry contact1000mA 30VDC, 500mA 50VAC)
RS485
1 port (1200~115,200bps baud rate)
Edge Storage
MicroSD Card (up to 512GB), NAS, Local PC, FTP, SFTP
Interoperability
ONVIF (Profile S; Profile G; Profile T); CGI; Milestone; Genetec
Environmental
Power Supply
12VDC / PoE
Power Consumption
Basic: 3.96W (12VDC); 4.95W (PoE), Maximum (H.265+intelligence on +WDR +IR on + auto focus): 9.2W (12VDC); 11.5W (PoE)
Operating Conditions
-30° ~ +60° C / Less than 95% RH
Ingress Protection
IP68
Weather Resistance
Yes
Vandal Resistance
N/A
Series
Specialty Series
Camera Type
Bullet
Housing
Stainless Steel (SUS304, SUS316L optional)
Pan/Tilt/Rotation
N/A
Tri-Axis Mounting
N/A
ePoE
No

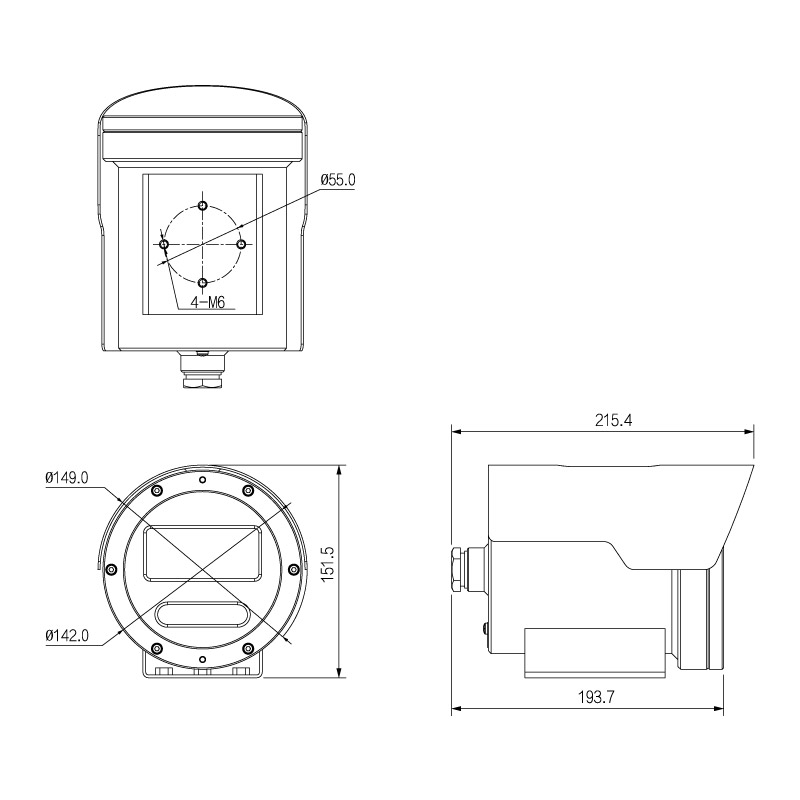

Dimensions
215mm x 149mm x 151mm
Net Weight
5kg (Net)
Other
Certifications
CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; ATEX: II 2 G Ex db IIC T6 Gb, II 2 D Ex tb IIIC T80°C Db, IECEx: Ex db IIC T6 Gb, Ex tb IIIC T80°C Db
Warranty (Years)
4
