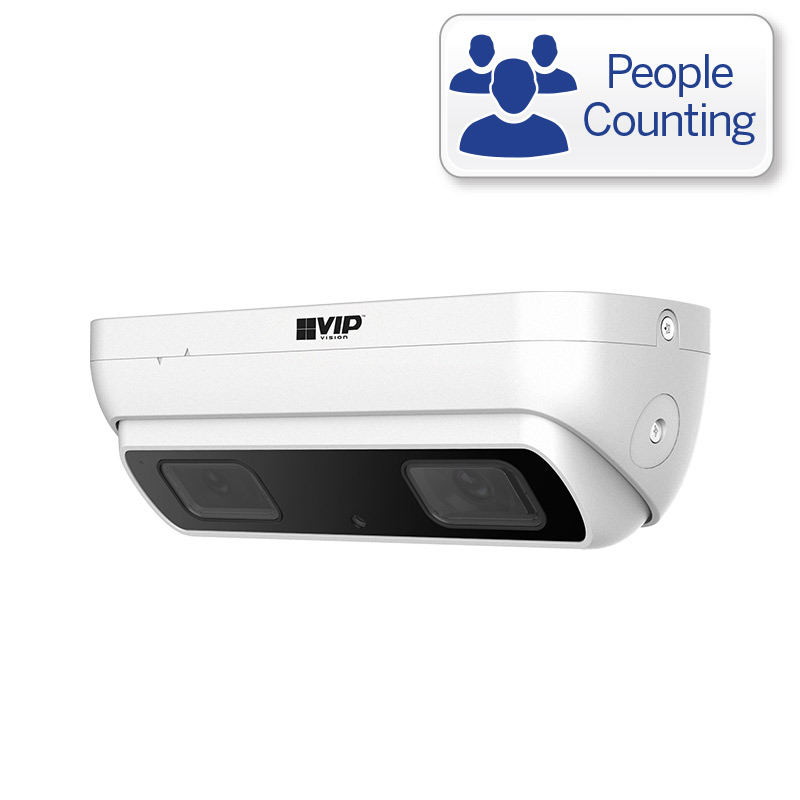

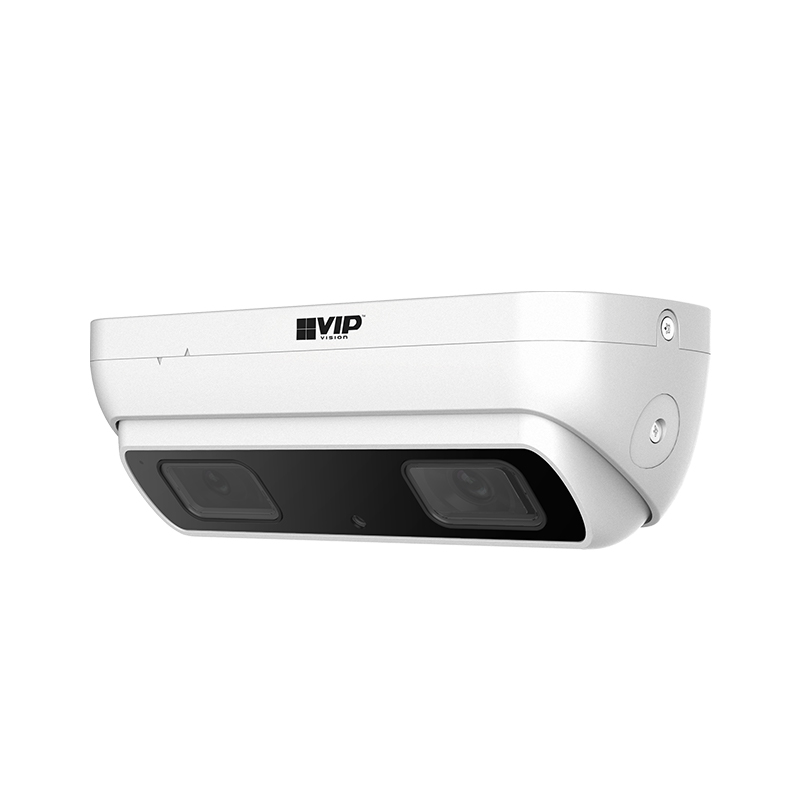

Specialist AI Series 3.0MP People Counting Dual Lens Camera

Brand logo
SKU VSIPDL-3IR
Brand logo

Specialist AI Series 3.0MP People Counting Dual Lens Camera

SKU VSIPDL-3IR

The unique VSIPDL-3IR is a dual lens IP camera that offers AI-powered people counting, capturing and detecting people in real time and gathering data for use in business analytics and statistics. The dual lens combined with AI technology allows the camera to reliably track human movement and count people in real time with increased precision and accuracy

Camera features:
• Stream up to 3.0MP (2048 x1536) at 25fps
• Up to 10m infrared range; true day/night (auto ICR)
• People counting with AI & dual lens technology
• Accurately tracks the number of people in a region and/or the number of people who cross a line
• Combines dual lens images to capture 3D depth
• Back/highlight compensation & true WDR (120dB)
• 3D digital noise reduction & auto white balance
• Built-in microphone, efficient H.265+ compression
• IP67 weather rated housing for outdoor use

Suggested Products

Suggested product image
Professional AI 16 Channel Network Video Recorder with ePoE (320Mbps)
NVR16PRO-I
Suggested product image
Professional AI 32 Channel Network Video Recorder with ePoE (320Mbps)
NVR32PRO16P-I

Links and Downloads

VIP Vision Dual Lens AI Camera Datasheet (PDF) 0.66 MB
Accessory Compatibility Guide - Q1 2021 (PDF) 1.75 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
2 x 1/2.8’’ 3.0MP Progressive Scan CMOS
Max. Resolution
3.0 Megapixel
Effective Pixels
2048 (H) x 1536 (V)
RAM / ROM
512MB / 4096MB
Min Illumination
0.009 Lux/F1.8 (colour 1/3s), 0.08 Lux/F1.8 (colour 1/30s), 0 Lux/F1.8 (IR on)
S/N Ratio
>50dB
Infrared System
1 x Infrared LED, 10m range, Auto/manual on/off control
Lens
Lens Type
Fixed
Lens / Iris
2.8mm F1.8 Fixed Focal Lens
Field of View
Horizontal: 106°, Vertical: 80°
Focus
Fixed Focus / 0.6m Min. Focus Distance
DORI
Detect (25px/m)
45m
Observe (63px/m)
18m
Recognise (125px/m)
9m
Identify (250px/m)
4m
Video
Resolution
3.0MP (2048 x 1536) to CIF (352 x 288)
Frame Rate (Main)
3.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
6.0MP (1 ~ 7fps, debugging only)
Video Compression
H.265 / H.264 / H.265+ / H.264+ / MJPEG
Bit Rate
H.264: 192~ 10240Kbps, H.265: 80~ 6144Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
No
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
N/A
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Heat Map
Perimeter Protection
N/A
Face Detection
N/A
Face Attributes
N/A
People Counting
People Counting (Supports line crossing & region of interest, 98% accuracy), Height Filter, Loitering Filter
Heat Map
N/A
Event Trigger
N/A
Intelligent Search
N/A
Network
Ethernet
RJ-45 (100/1000Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour;IEEE 802.1x; Multicast; ICMP; IGMP; SNMP; TLS
Streaming Method
Unicast / Multicast
Max. User Access
10 / 20 Users
Interface
Video Interface
1 Port (for adjustment only)
Audio Interface
2 Channel inputs / 1 Channel Output / Built-in Mic / Audio Compression - G.711a; G.711Mu; G726; AAC
Alarm Interface
2 Channel Inputs (5mA 5VDC) / 2 Channels Output (300mA 12VDC)
RS485
N/A
Edge Storage
MicroSD Card (up to 128GB) / NAS / Local PC
Interoperability
ONVIF Profile S&G, API
Environmental
Power Supply
12VDC / PoE (802.3af) (Class 0)
Power Consumption
<12W
Operating Conditions
-30°C to +60°C, ≤95% RH
Ingress Protection
IP67
Vandal Resistance
N/A
Series
Specialist AI Series
Camera Type
Dual Lens
Housing
Metal
Pan/Tilt/Rotation
Tilt: -10° ~ 70°
ePoE
No

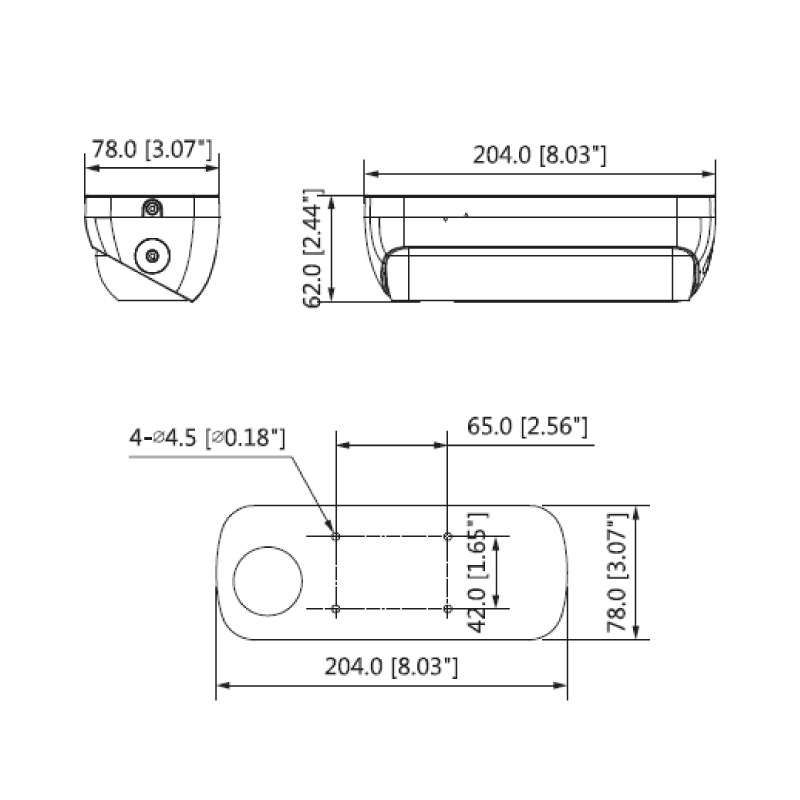

Dimensions
204mm x 78mm x 62mm
Net Weight
0.80kg
Other
Category
Network Surveillance
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
310 mm
Height
145 mm
Depth
155 mm
Weight
1.16 kg
