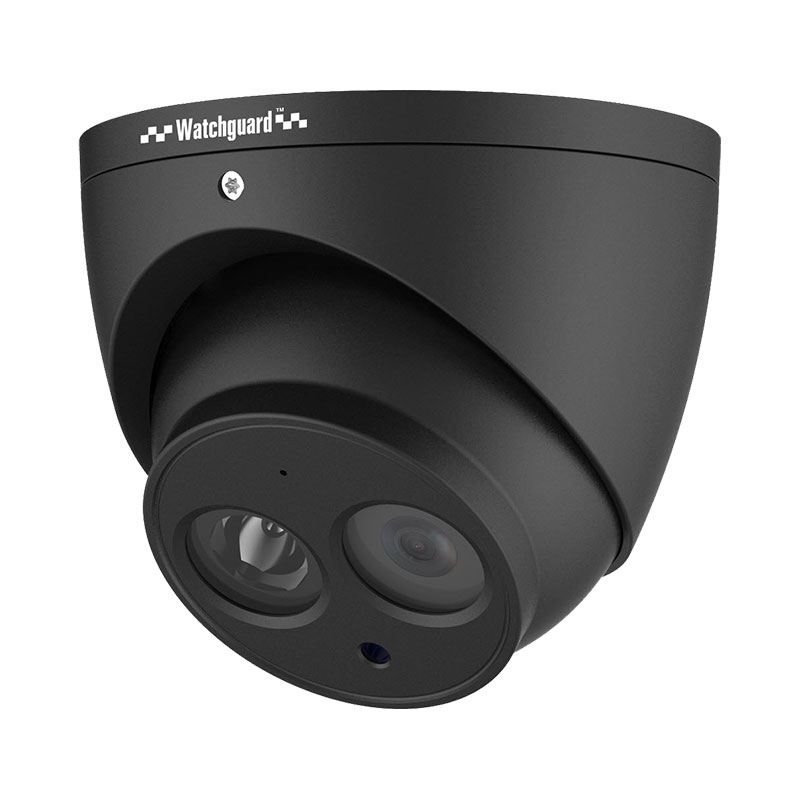

Compact Series 6.0MP Fixed Turret Dome (Black)

Brand logo
SKU VSIPC-6DIRC-B
Brand logo

Compact Series 6.0MP Fixed Turret Dome (Black)

SKU VSIPC-6DIRC-B

Stock may be limited. Please contact us for availability or for an alternative item.

The VSIPC-6DIRC-B boasts impressive performance at an affordable price point, delivering high image quality at a smooth framerate, intelligent video functions and the convenience of Power over Ethernet installation.

Camera features:
• Stream up to 6.0MP (3072 x 2048) at 20fps
• 2.8mm fixed lens with 98°(H) and 67°(V) field of view
• Up to 50m infrared range; true day/night (auto ICR)
• H.265+ encoding for efficient storage & streaming
• 3D digital noise reduction & auto white balance
• IVS functionality including Tripwire, Face Detection & more
• Power via 12VDC or Power over Ethernet (802.3af)
• IP67 weather rating in metal casing

Suggested Products

Suggested product image
Adapter for Ceiling & Wall Mount Brackets
VSBKTA106
Suggested product image
780mm Extender for Ceiling Mount Bracket
VSBKTA117
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA130E
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA139
Suggested product image
Adapter/Junction Box for Surveillance Cameras (Black)
VSBKTA139-B
Suggested product image
Triple Clamp Pole Mount Camera Bracket
VSBKTA150
Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152E
Suggested product image
Right Angle Wall Mount Camera Bracket
VSBKTB204W
Suggested product image
Right Angle Wall Mount Camera Bracket (Black)
VSBKTB204W-B
Suggested product image
760mm Ceiling Mount Dome Bracket
VSBKTB220C
Suggested product image
Right Angle Wall Mount Dome Bracket
VSBKTB305W
Suggested product image
Compact Series 6.0MP Fixed Turret Dome
VSIPC-6DIRC

Links and Downloads

Watchguard VSIPC-6DIRC Datasheet (PDF) 3.00 MB
Network Camera Web 3.0 Operation Manual V2.0.5 8.46 MB
Accessory Compatibility Guide - Q1 2021 (PDF) 1.75 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/2.9" 6.0MP Progressive Scan CMOS
Max. Resolution
6.0 Megapixel
Effective Pixels
3072 (H) x 2048 (V)
RAM / ROM
512MB / 32MB
Ultra Low Light Colour
No
Min Illumination
0.04 Lux/F1.6 (Color 1/3s),0.4 Lux/F1.6 (Color 1/30s), 0 Lux/F1.6 (IR on)
S/N Ratio
> 50dB
Infrared
Yes
Infrared System
1 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type
Fixed
Lens / Iris
2.8mm F1.6 Lens
Field of View
Horizontal: 98°, Vertical: 67°
Focus
Fixed
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
69m
Observe (63px/m)
28m
Recognise (125px/m)
14m
Identify (250px/m)
7m
Video
Resolution
6.0MP (3072 x 2048) to CIF (352 x 288)
Frame Rate (Main)
6.0MP (1 ~ 20fps) OR 4.0MP (1~25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080P (1~25fps)
Video Compression
H.265+ / H.265 / H.264+ / H.264 / MJPEG
Bit Rate
H.264: 24K ~ 10240Kbps / H.264: 14K ~ 9984Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
HLC / BLC / WDR (120dB)
Smart Scene Adaptive (SSA)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°) (Resolution must be at 4.0MP or lower for corridor mode)
IVS
IVS
Yes
Intelligent Functions
Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Motion Detection (4 zones rectangle), Region of Interest (4 zones)
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;, UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
Yes
Interface
Video Interface
N/A
Audio Interface
Built-in mic
Alarm Interface
N/A
RS485
N/A
Edge Storage
NAS / Local PC
Interoperability
ONVIF, PSIA, CGI
Environmental
Power Supply
12VDC / PoE (802.3af) (Class 0)
Power Consumption
<6W
Operating Conditions
-40° ~ +60° C / Less than 95% RH
Ingress Protection
IP67
Weather Resistance
Yes
Vandal Resistance
N/A
Series
Compact Series
Camera Type
Turret Dome
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~360 °; Tilt: 0° ~78°; Rotation: 0° ~360°
Tri-Axis Mounting
Yes
ePoE
No

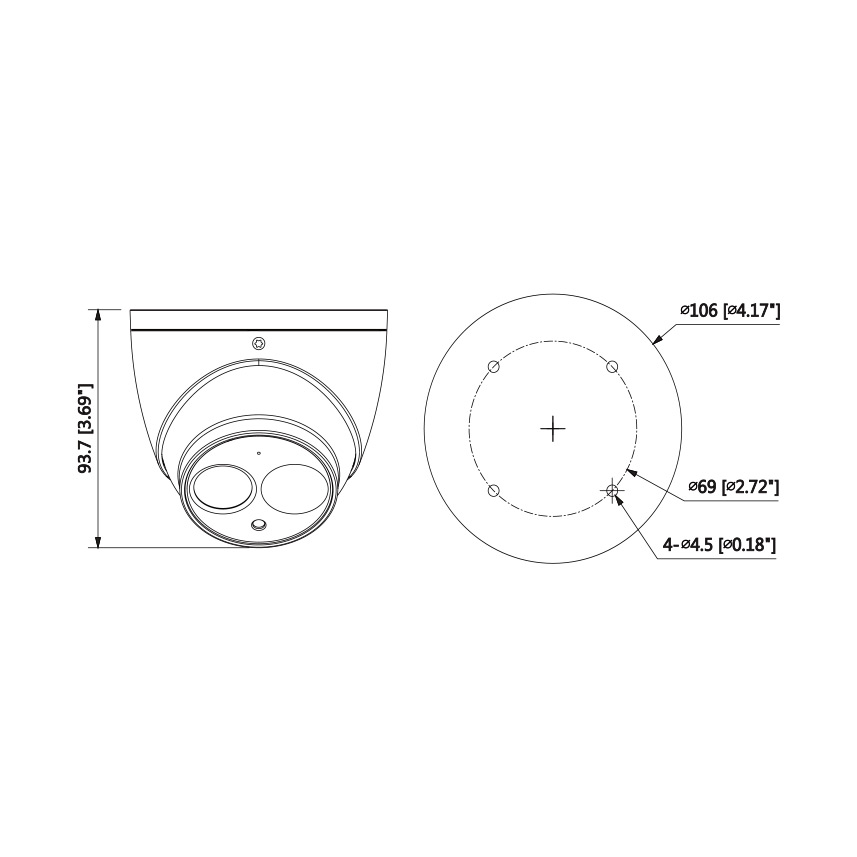

Dimensions
Ø106mm x 93.7mm
Net Weight
0.47kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
155 mm
Height
135 mm
Depth
155 mm
Weight
0.36 kg
