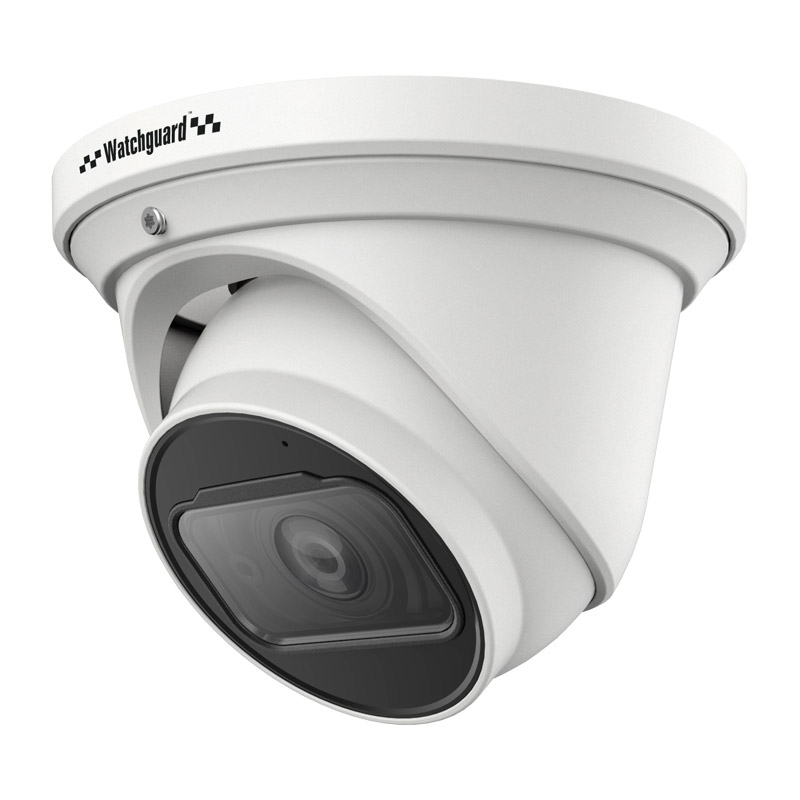

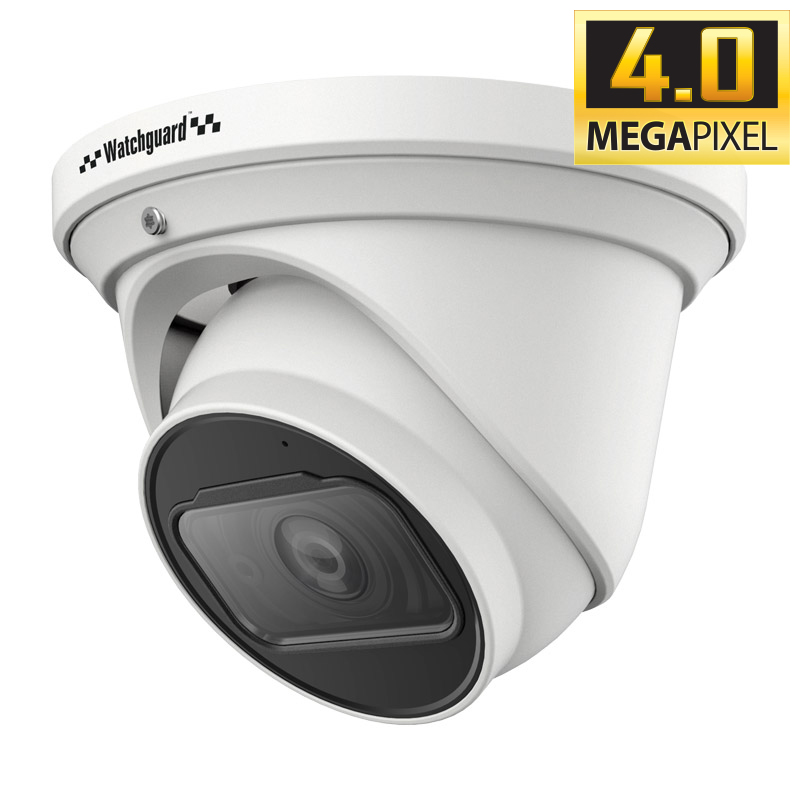

Compact Series 4.0MP Motorised Turret Dome

SKU VSIPC-4DIRMG

The VSIPC-4DIRMG boasts impressive performance at an affordable price point, delivering high image quality at a smooth framerate, intelligent video functions and the convenience of Power over Ethernet installation.

Camera features:
• Stream up to 4.0MP (2560 x 1440) at 20fps
• 2.8~12mm motorised varifocal lens (94°~33°)
• Up to 50m infrared range; true day/night (auto ICR)
• H.265 encoding for efficient storage & streaming
• 3D digital noise reduction & auto white balance
• Motion detection, region of interest and more
• Power via 12VDC or Power over Ethernet (802.3af)
• IP67 weather rated metal housing

Suggested Products

Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA130E
Suggested product image
Compact Series 4.0MP Motorised Dome
VSIPC-4DIRMD

Links and Downloads

Watchguard Compact Series Motorised Datasheet (PDF) 1.90 MB
Network Camera Web 3.0 Operation Manual V2.0.5 8.46 MB
Accessory Compatibility Guide - Q1 2021 (PDF) 1.75 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/3" 4.0MP Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2560 (H) x 1440 (V)
RAM / ROM
256MB / 16MB
Ultra Low Light Colour
No
Min Illumination
0.05 Lux/F1.8 (Color), 0 Lux/F1.8 (IR on)
S/N Ratio
> 50dB
Infrared
Yes
Infrared System
2 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
2.8mm~12mm F1.8 Motorised Varifocal Lens
Field of View
Horizontal: 94°~33°, Vertical: 51°~19° (4x Optical Zoom)
Focus
Fixed
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
66m (wide) / 200m (tele)
Observe (63px/m)
26m (wide) / 80m (tele)
Recognise (125px/m)
13m (wide) / 40m (tele)
Identify (250px/m)
7m (wide) / 20m (tele)
Video
Resolution
4.0MP (2560 x 1440) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 20fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
N/A
Video Compression
H.265+ / H.265 / H.264+ / H.264 / MJPEG
Bit Rate
H.265: 6 ~ 6144Kbps / H.264: 16 ~ 6144Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / Digital WDR
Smart Scene Adaptive (SSA)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)
IVS
IVS
No
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
HTTP; HTTPS; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPV4/V6; QoS; UPnP; NTP; Bonjour; IEEE 802.1X; Multicast; ICMP; IGMP; TLS; SSH
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
No
Interface
Video Interface
N/A
Audio Interface
N/A
Alarm Interface
N/A
RS485
N/A
Edge Storage
MicroSD Card (up to 128GB) / NAS / Local PC
Interoperability
ONVIF Profile S&G / API
Environmental
Power Supply
12VDC / PoE (802.3af) (Class 0)
Power Consumption
<2.2W / 6.5W (IR On)
Operating Conditions
-30° ~ +60° C / Less than 95% RH
Ingress Protection
IP67
Weather Resistance
Yes
Vandal Resistance
N/A
Series
Compact Series
Camera Type
Turret Dome
Housing
Metal
Pan/Tilt/Rotation

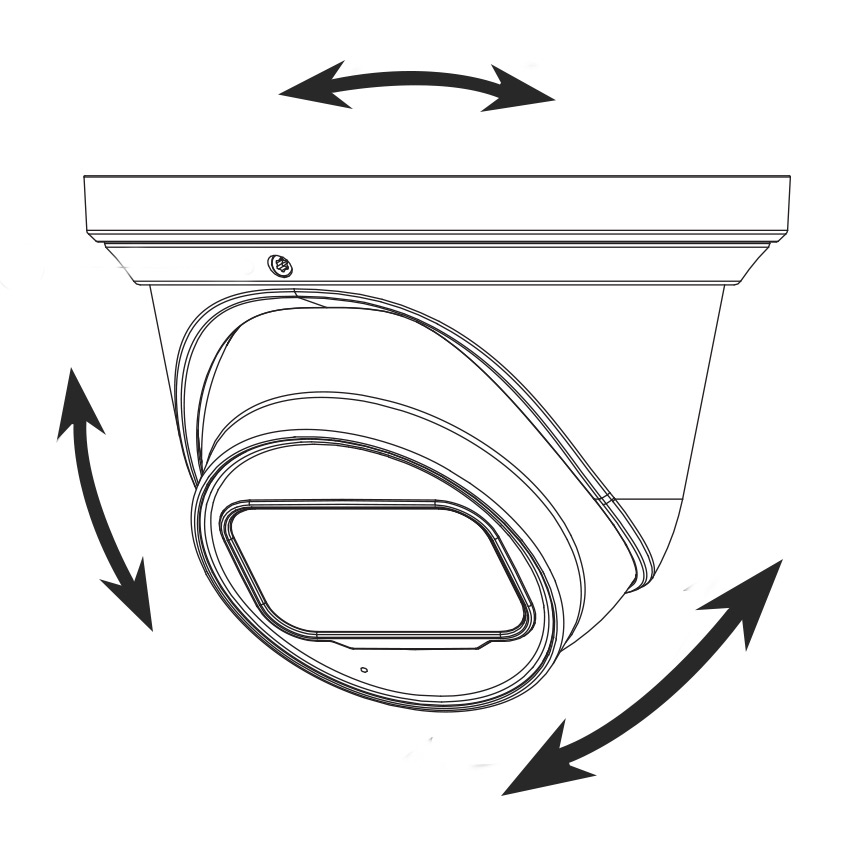

Pan: 0° ~360 °; Tilt: 0° ~90°; Rotation: 0° ~360°
Tri-Axis Mounting
Yes
ePoE
No
Dimensions

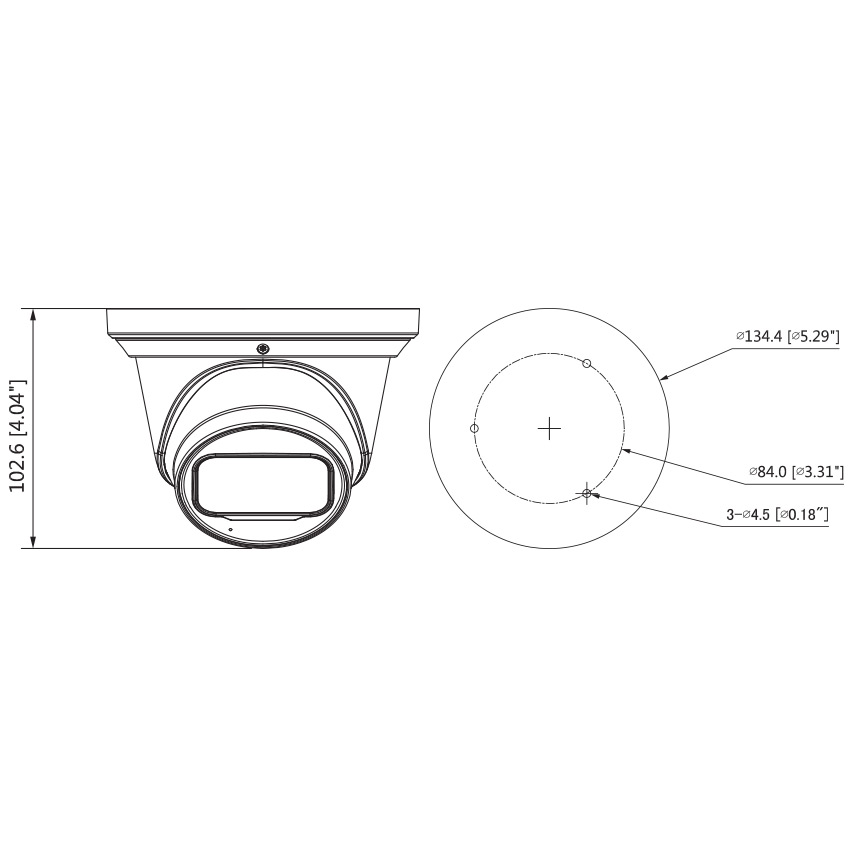

Ø134.4mm x 102.6mm
Net Weight
0.60kg
Other
Category
Network Surveillance
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
173 mm
Height
170 mm
Depth
172 mm
Weight
0.77 kg
