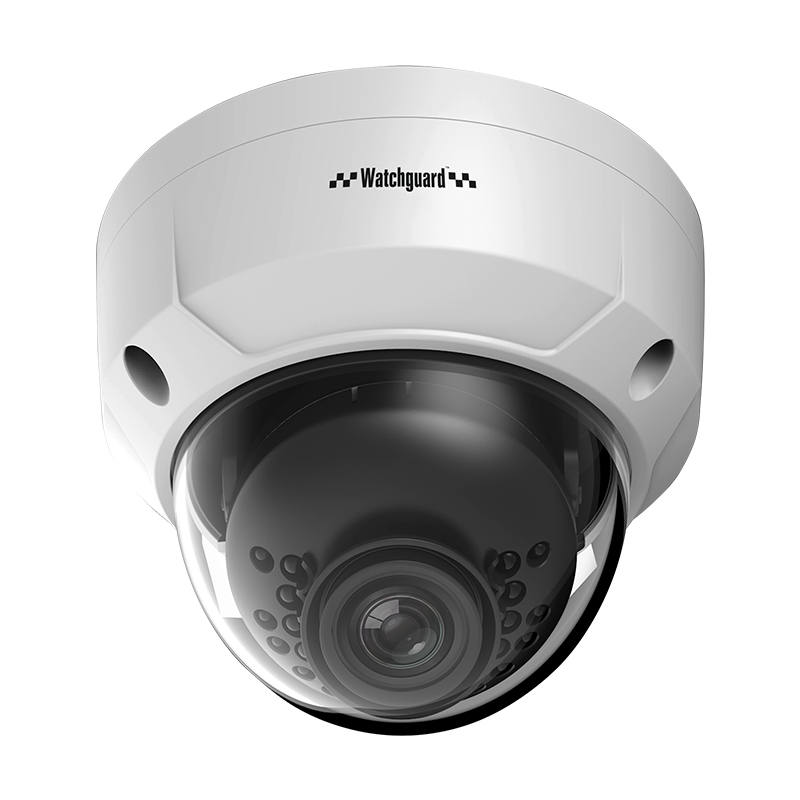

VSIPC-4DIRD: Compact Series 4.0MP Fixed Mini Dome

Specifications

Camera

Image Sensor

1/3" 4.0MP Progressive Scan CMOS

Max. Resolution

4.0 Megapixel

Effective Pixels

2560 (H) x 1440 (V)

RAM / ROM

256MB / 16MB

Ultra Low Light Colour

Min Illumination

0.09 Lux/F2.0 (Color), 0 Lux/F2.0 (IR on)

S/N Ratio

> 50dB

Infrared

Yes

Infrared System

24 x Infrared LED, 30m range, Auto/manual on/off control

Lens

Lens Type

Fixed

Lens / Iris

2.8mm F2.0 Fixed Lens

Field of View

Horizontal: 101°, Vertical: 54°

Focus

Fixed

DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Detect (25px/m)

56m

Observe (63px/m)

22m

Recognise (125px/m)

11m

Identify (250px/m)

Video

Resolution

4.0MP (2560 x 1440) to CIF (352 x 288)

Frame Rate (Main)

4.0MP (1 ~ 20fps)

Frame Rate (Sub)

D1 (1 ~ 20fps)

Frame Rate (Third)

N/A

Video Compression

H.265+ / H.265 / H.264+ / H.264 / MJPEG

Bit Rate

H.265: 12 ~ 6144Kbps / H.264: 32 ~ 6144Kbps

Bit Rate Control

Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night

Auto (ICR) / Color / B&W

Lighting Compensation

BLC / HLC / Digital WDR

Smart Scene Adaptive (SSA)

White Balance

Auto / Natural / Street Lamp / Outdoor / Manual

Gain Control

Auto / Manual

Noise Reduction

3D DNR

Picture Control

Mirror / Flip (0°, 90°, 180°, 270°)

IVS

Intelligent Functions

Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP; HTTPS; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPV4/V6; QoS; UPnP; NTP; Bonjour; IEEE 802.1X; Multicast; ICMP; IGMP; TLS; SSH

Streaming Method

Unicast / Multicast

Max. User Access

10 Users / 20 Users

RTMP Support

Interface

Video Interface

N/A

Audio Interface

N/A

Alarm Interface

N/A

RS485

N/A

Edge Storage

NAS / Local PC

Interoperability

ONVIF Profile S&G / API

Environmental

Power Supply

12VDC / PoE (802.3af) (Class 0)

Power Consumption

<3.9W

Operating Conditions

-30° ~ +60° C / Less than 95% RH

Ingress Protection

IP67

Weather Resistance

Yes

Vandal Resistance

IK10

Series

Compact Series

Camera Type

Dome

Housing

Metal

Pan/Tilt/Rotation

Pan: 0° ~360 °; Tilt: 0° ~90°; Rotation: 0° ~360°

Tri-Axis Mounting

ePoE

Dimensions

Ø110mm x 81mm

Net Weight

0.35kg

Warranty (Years)
