Professional Series 8.0MP WDR Infrared Motorised Dome

Brand logo
SKU VSIP8MPVDIRMD
Brand logo

Professional Series 8.0MP WDR Infrared Motorised Dome

SKU VSIP8MPVDIRMD

Available by special order only. Please contact us for lead times.

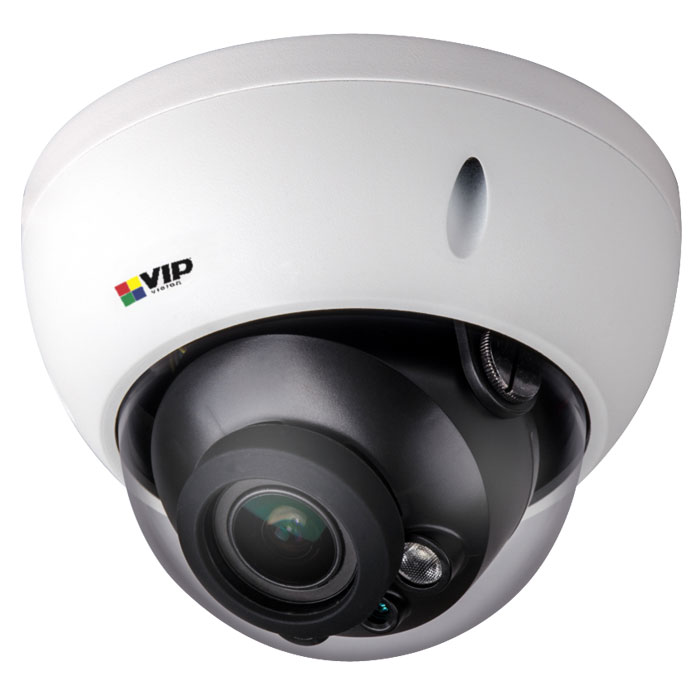

The VSIP8MPVDIRMD is a versatile dome camera that can fit any application. This camera features an array of tools to perform in just about any environment, with a vandal & weather rated housing, infrared, remote zoom control & more.

Product features:
• Stream up to 8.0MP (3840 x 2160) at 25fps
• 3.7 ~ 11mm motorised varifocal lens with fixed iris
• 112°~46°(H) - 60°~26°(V) field of view with 4x optical zoom
• Intrusion detection and Tripwire
• H.265 encoding for efficient storage & streaming
• 30m infrared range; true day/night (auto ICR)
• MicroSD slot for recording at the edge up to 400GB
• Back/highlight compensation & true WDR (120dB)
• 3D digital noise reduction & auto white balance
• IP67/IK10 weather/vandal rated dome housing

Suggested Products

Suggested product image
Adapter for Ceiling & Wall Mount Brackets
VSBKTA106
Suggested product image
780mm Extender for Ceiling Mount Bracket
VSBKTA117
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA123
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA137
Suggested product image
Triple Clamp Pole Mount Camera Bracket
VSBKTA150
Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152E
Suggested product image
Rain Cover Dome Camera Bracket
VSBKTA200W
Suggested product image
Recessed Ceiling Mount Bracket
VSBKTB200C
Suggested product image
Right Angle Wall Mount Camera Bracket
VSBKTB203W
Suggested product image
760mm Ceiling Mount Dome Bracket
VSBKTB220C
Suggested product image
Right Angle Wall Mount Dome Bracket
VSBKTB305W

Links and Downloads

VSIP4MPVDIRMD / VSIP8MPVDIRMD Datasheet (PDF) 4.20 MB
VIP Vision VDIRMD Quick Install Guide (PDF) 0.39 MB
Product Feature Guide - VIP Vision Corridor Mode (PDF) 1.56 MB
VSIP8MPXXIRMD- v2.622 - 2019-01-09.bin 32.14 MB
Accessory Compatibility Guide - Q1 2021 (PDF) 1.75 MB
Network Camera Web 3.0 Operation Manual V2.0.5 8.46 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/1.8” 8Megapixel progressive CMOS
Max. Resolution
8.0 Megapixel
Effective Pixels
3840 (H) x 2160 (V)
RAM / ROM
512MB/128MB
Ultra Low Light Colour
Yes
Min Illumination
0.004Lux/F1.9( Color,1/3s,30IRE) 0.09Lux/F1.9 Color,1/30s,30IRE) 0Lux/F1.9(IR on)
S/N Ratio
≥50dB
Infrared
Yes
Infrared System
2 x Infrared LED, 30m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
3.7mm~11mm
Field of View
H:112°~46°, V:60°~26°
Focus
Fixed
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
83m (wide) / 190m (tele)
Observe (63px/m)
33m (wide) / 76m (tele)
Recognise (125px/m)
17m (wide) / 38m (tele)
Identify (250px/m)
8m (wide) / 19m (tele)
Video
Resolution
8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate (Main)
8.0MP (1~25fps)
Frame Rate (Sub)
D1 (1~25fps)
Frame Rate (Third)
N/A
Video Compression
H.265+/H.265/H.264+/H.264
Bit Rate
H.265: 16Kbps~8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Colour/ B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
White Balance
Auto / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°) (Resolution must be at 4.0MP or lower for corridor mode)
IVS
IVS
Yes
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Tripwire, Intrusion
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
HTTP; HTTPS; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPV4/V6; QoS; UPnP; NTP; Bonjour; IEEE 802.1X; Multicast; ICMP; IGMP; TLS; NFS; SSH
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
RTMP Support
No
Interface
Video Interface
N/A
Audio Interface
N/A
Alarm Interface
N/A
RS485
N/A
Edge Storage
MicroSD Card (up to 128GB) / NAS / Local PC
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
12VDC / PoE (802.3af) (Class 0)
Power Consumption
<10.9W
Operating Conditions
-30° ~ +60° C / Less than 95% RH
Ingress Protection
IP67
Weather Resistance
Yes
Vandal Resistance
IK10
Series
Professional Series
Camera Type
Dome
Housing
Metal & Polycarbonate Dome
Pan/Tilt/Rotation
Pan: 0° ~355 ° ; Tilt: 0° ~ 70° ; Rotation: 0° ~ 355°
Tri-Axis Mounting
Yes
ePoE
No
Dimensions
Ø122mm x 89mm
Net Weight
0.49kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
156 mm
Height
156 mm
Depth
137 mm
Weight
0.60 kg
