Panorama Series 8.0MP 180° Panorama Camera

Brand logo
SKU VSIP8MPPAV2
Brand logo

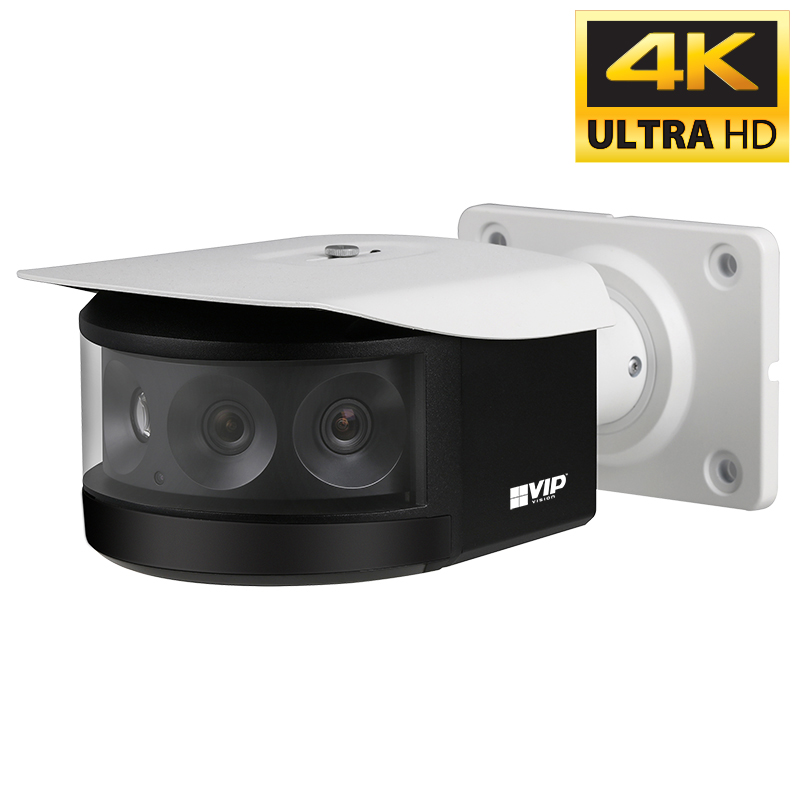

Panorama Series 8.0MP 180° Panorama Camera

SKU VSIP8MPPAV2

Stock may be limited. Please contact us for availability or for an alternative item.

Designed to perform the duties of multiple cameras, the VSIP8MPPAV2 from VIP Vision is a dedicated panoramic IP camera with 180° panorama stitching. Transform your surveillance experience through its unique four lens panoramic mode.

Camera features:
• Unique 4 x 1/2.8" 2.0MP Progressive Scan CMOS image sensor array
• 4096 x 1800 pixels maximum stitched resolution
• 4 x 3.0mm fixed lens, 180° horizontal / 80° vertical field of view
• Face detection, people counting, heat-map, e-PTZ and more
• 2 channel alarm input / 2 output, 1 channel audio input/output
• BLC / HLC / true WDR (120db), 3D digital noise reduction
• 8 x infrared LED array, 30m panoramic infrared distance
• Power via 24VAC or PoE+ (802.3at, Class 4)
• IK10 vandal / IP67 weather resistant housing
• MicroSD slot up to 128GB, ONVIF compliant

Displays as single camera channel with 180° panoramic view (no dewarp modes).

Suggested Products

Suggested product image
Adapter/Junction Box for PTZ Dome Cameras
VSBKTA120
Suggested product image
Triple Clamp Pole Mount Camera Bracket
VSBKTA150
Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151

Links and Downloads

VIP Vision PA Series Datasheet (PDF) 1.07 MB
VIP Vision PA Series Quick Install Guide (PDF) 1.09 MB
Network Camera Web 3.0 Operation Manual V2.0.5 8.46 MB
Accessory Compatibility Guide - Q1 2021 (PDF) 1.75 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
4 x 1/2.8’’ 2.0MP Progressive Scan CMOS
Max. Resolution
8.0 Megapixel
Effective Pixels
4096 (H) x 1800 (V)
RAM / ROM
1024MB / 128MB
Ultra Low Light Colour
Yes
Min Illumination
Colour: 0.007 Lux (F2.0, 1/3s) / 0 Lux/F2.0 (B/W)
S/N Ratio
> 50dB
Infrared
Yes
Infrared System
8 x Infrared LED, 30m range, Auto/Manual on/off control
Lens
Lens Type
Fixed
Lens / Iris
3.0mm F2.0 Fixed Lens
Field of View
Horizontal: 180°, Vertical: 80°
Focus
Fixed
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
41m
Observe (63px/m)
16m
Recognise (125px/m)
8m
Identify (250px/m)
4m
Video
Resolution
4096 x 1800 (approx. 7.3MP) to 1024 x 454 (approx. 0.5MP)
Frame Rate (Main)
4096 x 1800 (1~25fps)
Frame Rate (Sub)
1024 x 452 (1 ~ 25fps)
Frame Rate (Third)
1920 x 832 (1 ~ 25fps)
Video Compression
H.265+ / H.265 / H.264+ / H.264
Bit Rate
H.265: 9Kbps ~ 9472Kbps / H.264: 24Kbps ~ 15616Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
N/A
IVS
IVS
Yes
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, People Counting, Heat Map, E-PTZ
Network
Ethernet
RJ-45 (100/1000Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
No
Interface
Video Interface
1 Port (for adjustment only)
Audio Interface
1 Input, 1 Output / Compression: G.711a / G.711Mu / AAC / G.726
Alarm Interface
2 Inputs / 2 Output
RS485
N/A
Edge Storage
MicroSD Card (up to 128GB) / NAS / Local PC
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
24VAC / PoE+ (802.3at)
Power Consumption
< 25.5W
Operating Conditions
-40° ~ +60° C / Less than 95% RH
Ingress Protection
IP67
Weather Resistance
Yes
Vandal Resistance
IK10
Series
Panorama Series
Camera Type
Panorama
Housing
Metal
Pan/Tilt/Rotation
N/A
Tri-Axis Mounting
No
ePoE
No
Dimensions
298 x 173 x 121mm
Net Weight
2.70kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
330 mm
Height
220 mm
Depth
330 mm
Weight
3.41 kg
