Panorama Series 8.0MP 180° Panorama Dome

SKU VSIP8MPPADV2

Panorama Series 8.0MP 180° Panorama Dome

SKU VSIP8MPPADV2

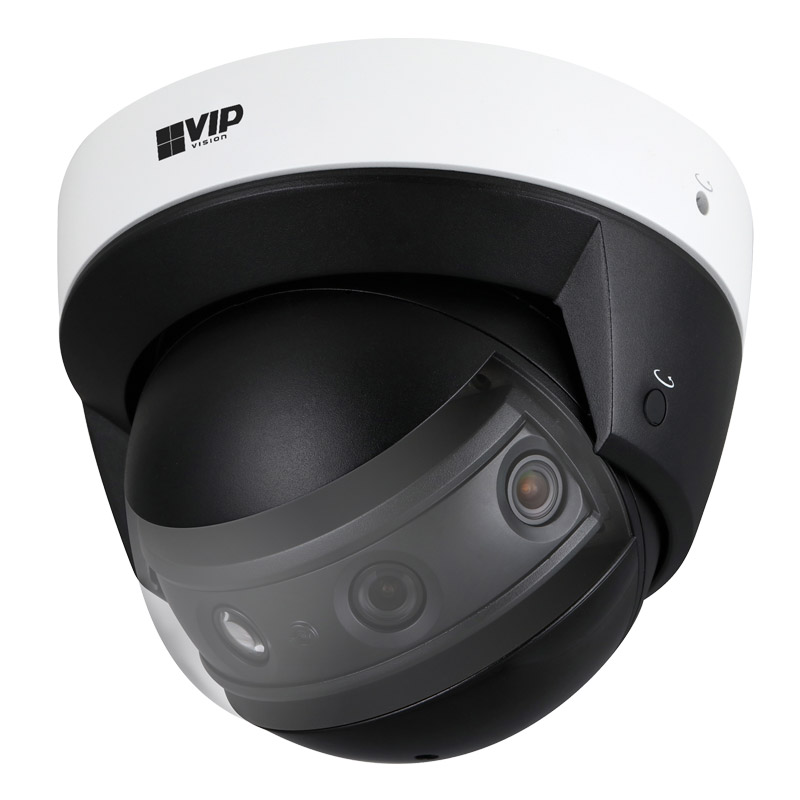

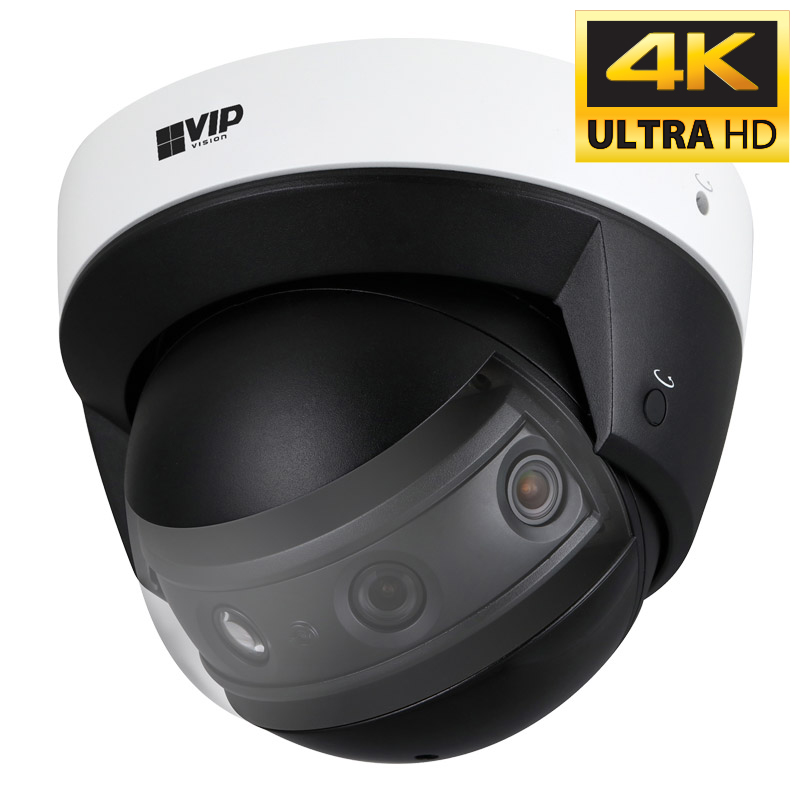

Designed to perform the duties of multiple cameras, the VSIP8MPPADV2 from VIP Vision is a dedicated panoramic IP camera with 180° panorama stitching. Transform your surveillance experience through its unique four lens panoramic view.

Camera features:
• Unique 4 x 1/2.8" 2.0MP Progressive Scan CMOS image sensor array
• 4096 x 1800 pixels maximum stitched resolution
• 4 x 2.8mm fixed lens, 180° horizontal / 80° vertical field of view
• Face detection, people counting, heat-map, e-PTZ and more
• 2 channel alarm input / 2 output, 1 channel audio input/output
• BLC / HLC / digital WDR, 3D digital noise reduction
• 6 x infrared LED array, 30m panoramic infrared distance
• Power via 24VAC or PoE+ (802.3at, Class 4)
• IK10 vandal / IP67 weather resistant housing
• MicroSD slot up to 128GB, ONVIF compliant

Displays as single camera channel with 180° panoramic view (no dewarp modes).

Bracket adapter included (VSBKTA111). This camera requires an additional ceiling/wall mount bracket to be mounted (sold separately).

Suggested Products

Ceiling/Wall Mount Adapter for PTZ Cameras
VSBKTA111

220mm Extender for Ceiling Mount Bracket
VSBKTA112

420mm Extender for Ceiling Mount Bracket
VSBKTA113

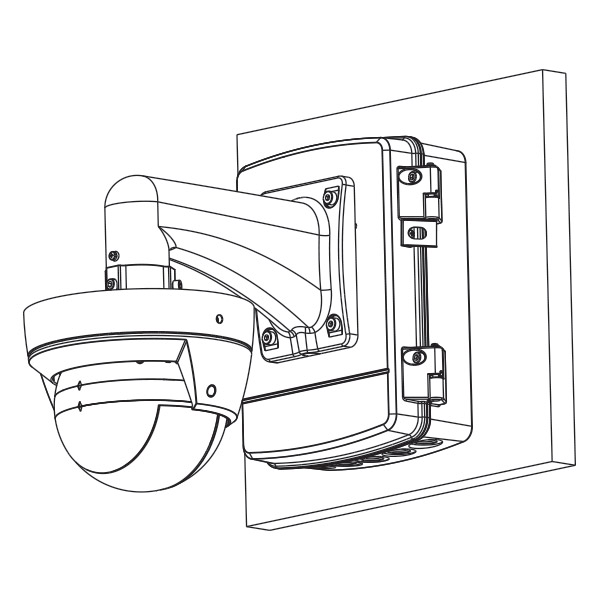

Adapter/Junction Box for PTZ Dome Cameras
VSBKTA120

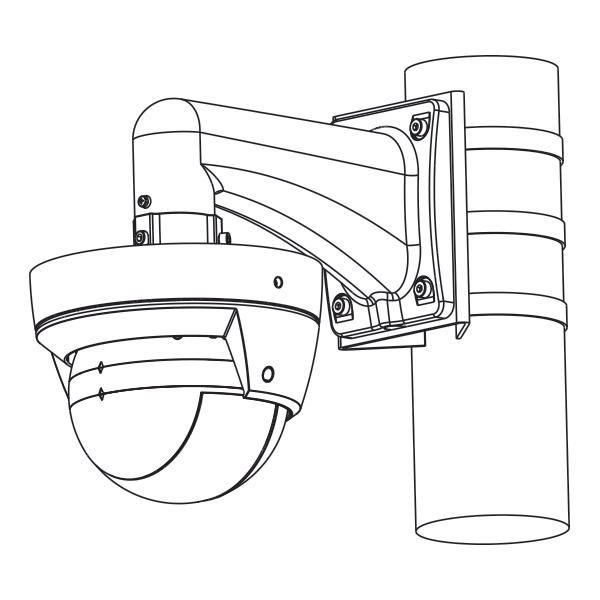

Triple Clamp Pole Mount Camera Bracket
VSBKTA150

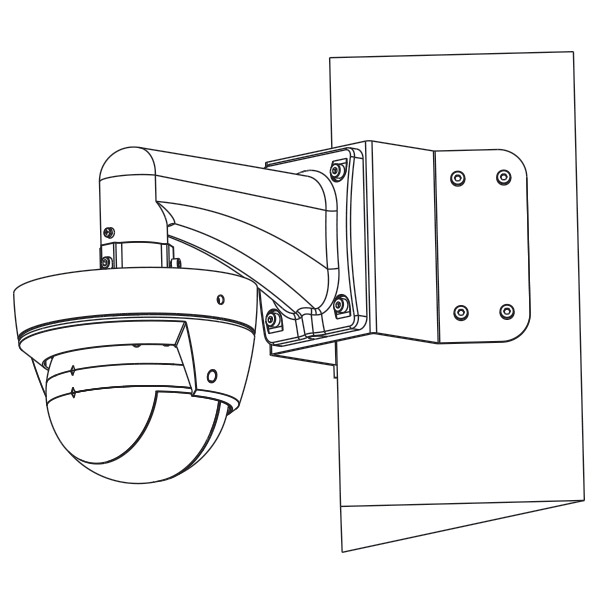

Corner Wall Mount Camera Bracket
VSBKTA151

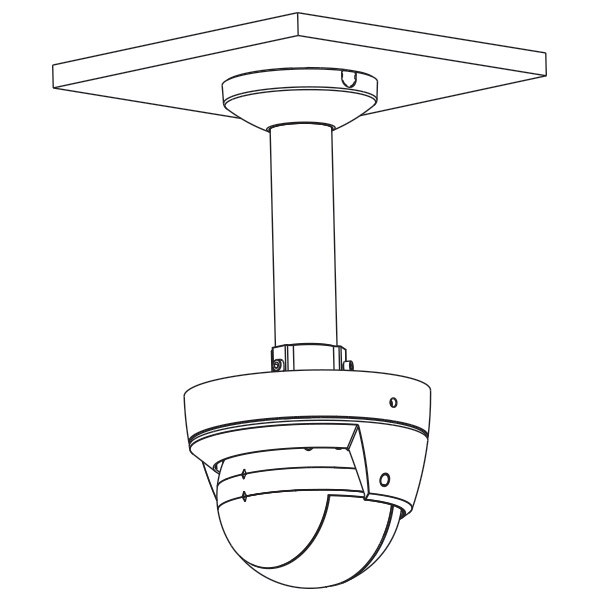

Ceiling Mount Camera Bracket
VSBKTB300C

Parapet Mount PTZ Camera Bracket
VSBKTB303S

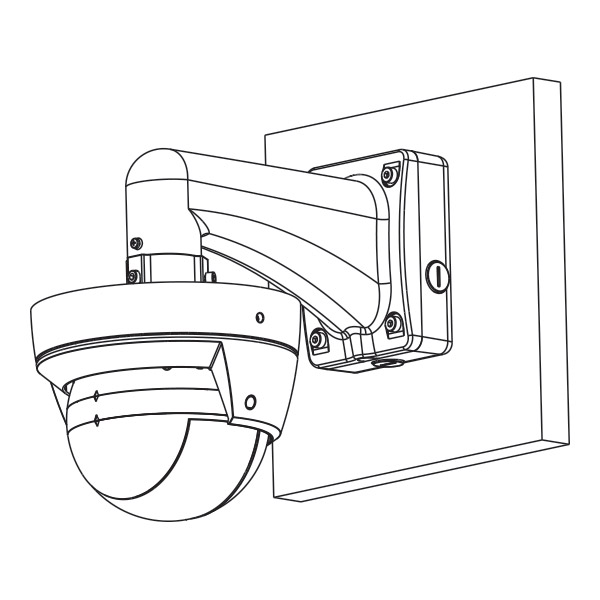

PTZ Right Angle Wall Mount Camera Bracket
VSBKTB303W

Specifications

Camera

Image Sensor

4 x 1/2.8’’ 2.0MP Progressive Scan CMOS

Max. Resolution

8.0 Megapixel

Effective Pixels

4096 (H) x 1800 (V)

RAM / ROM

1024MB / 128MB

Ultra Low Light Colour

Yes

Min Illumination

Colour: 0.007 Lux (F2.0, 1/3s) / 0.05 Lux (F2.0, 1/30s), 0 Lux/F2.0 (B/W)

S/N Ratio

> 50dB

Infrared

Yes

Infrared System

6 x Infrared LED, 30m range, Auto/Manual on/off control

Lens

Lens Type

Fixed

Lens / Iris

2.8mm F2.0 Fixed Lens

Field of View

Horizontal: 180°, Vertical: 80°

Focus

Fixed

DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Detect (25px/m)

41m

Observe (63px/m)

16m

Recognise (125px/m)

Identify (250px/m)

Video

Resolution

4096 x 1800 (approx. 7.4MP) to 1024 x 452 (approx. 0.5MP)

Frame Rate (Main)

4096 x 1800 (1~25fps)

Frame Rate (Sub)

1024 x 452 (1 ~ 25fps)

Frame Rate (Third)

1920 x 832 (1 ~ 25fps)

Video Compression

H.265 / H.264

Bit Rate

H.265: 9Kbps ~ 10Mbps / H.264: 24Kbps ~ 16Mbps

Bit Rate Control

Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night

Auto (ICR) / Color / B&W

Lighting Compensation

BLC / HLC / DWDR

Smart Scene Adaptive (SSA)

White Balance

Auto / Natural / Street Lamp / Outdoor / Manual

Gain Control

Auto / Manual

Noise Reduction

3D DNR

Picture Control

IVS

Yes

Intelligent Functions

Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, People Counting, Heat Map, E-PTZ

Network

Ethernet

RJ-45 (100/1000Base-T)

Protocol

HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP

Streaming Method

Unicast / Multicast

Max. User Access

10 Users / 20 Users

RTMP Support

Interface

Video Interface

1 Port (for adjustment only)

Audio Interface

1 Input, 1 Output / Compression: G.711a / G.711Mu / AAC / G.726

Alarm Interface

2 Inputs / 2 Output

RS485

N/A

Edge Storage

MicroSD Card (up to 128GB) / NAS / Local PC

Interoperability

ONVIF / PSIA / CGI

Environmental

Power Supply

24VAC / PoE+ (802.3at)

Power Consumption

<25.5W

Operating Conditions

-40° ~ +60° C / Less than 95% RH

Ingress Protection

IP67

Weather Resistance

Yes

Vandal Resistance

IK10

Series

Panorama Series

Camera Type

Panorama

Housing

Metal

Pan/Tilt/Rotation

Pan: 0˚~355˚ ; Tilt: 0˚~75˚ ; Rotation: ±20˚

Tri-Axis Mounting

Yes

ePoE

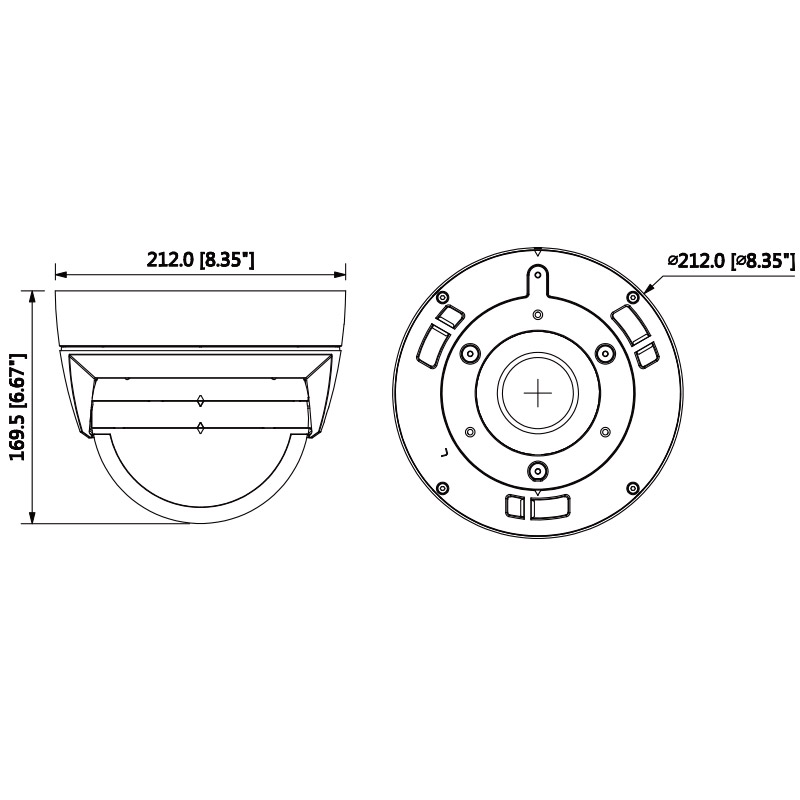

Dimensions

Φ212mm x 169.5mm

Net Weight

3.60kg

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

250 mm

Height

200 mm

Depth

200 mm

Weight

4.60 kg
