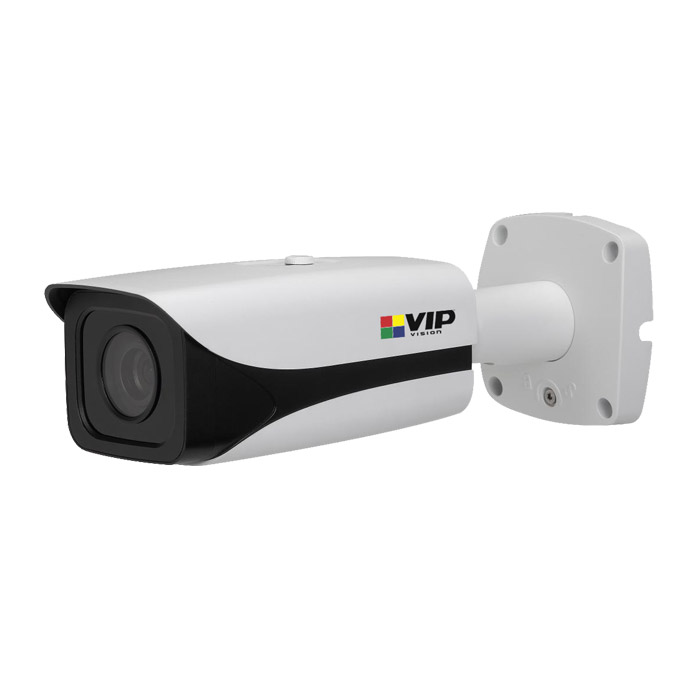

VSIP8MPFBIRM: Ultimate Series 8.0MP Infrared Motorised Bullet

Specifications

Camera

Image Sensor

1/2.5’’ 8.0MP Progressive Scan CMOS

Max. Resolution

8.0 Megapixel

Effective Pixels

3840 (H) x 2160 (V)

RAM / ROM

512MB / 32MB

Ultra Low Light Colour

Min Illumination

0.05 Lux/F1.6 (Color), 0 Lux/F1.6 (IR on)

S/N Ratio

> 50dB

Infrared

Yes

Infrared System

4 x Infrared LED, 50m range, Auto/manual on/off control

Lens

Lens Type

Motorised Varifocal

Lens / Iris

2.7 ~ 12mm F1.6 Motorised Varifocal Lens with Auto Iris

Field of View

Horizontal: 102°~39°, Vertical: 55°~22° (4x Optical Zoom)

Focus

Auto Focus / 0.3m Min. Focus Distance

DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Detect (25px/m)

91m (wide)/ 228m (tele)

Observe (63px/m)

36m (wide)/ 91m (tele)

Recognise (125px/m)

18m (wide)/ 46m (tele)

Identify (250px/m)

9m (wide)/ 23m (tele)

Video

Resolution

8.0MP (3840 x 2160) to CIF (352 x 288)

Frame Rate (Main)

8.0MP (1 ~ 15fps) / 3.0MP (1 ~ 25fps)

Frame Rate (Sub)

D1 (1 ~ 25fps)

Frame Rate (Third)

1080p (1~25fps)

Video Compression

H.265 / H.264

Bit Rate

H.265: 14 ~ 9984Kbps / H.264: 24 ~ 10240Kbps

Bit Rate Control

Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night

Auto (ICR) / Color / B&W

Lighting Compensation

BLC / HLC / Digital WDR

Smart Scene Adaptive (SSA)

White Balance

Auto / Natural / Street Lamp / Outdoor / Manual

Gain Control

Auto / Manual

Noise Reduction

3D DNR

Picture Control

Mirror / Flip (0°, 90°, 180°, 270°)

IVS

Yes

Intelligent Functions

Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared

Network

Ethernet

RJ-45 (10/100 Base-T)

Protocol

HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP

Streaming Method

Unicast / Multicast

Max. User Access

10 Users / 20 Users

RTMP Support

Interface

Video Interface

Video Tester Composite Output

Audio Interface

1 Input, 1 Output / Compression: G.711a, G.711Mu, AAC, G.726

Alarm Interface

2 Input / 1 Output

RS485

N/A

Edge Storage

MicroSD Card Slot (up to 128GB) / NAS / Local PC

Interoperability

ONVIF / PSIA / CGI

Environmental

Power Supply

12VDC / PoE (802.3af) (Class 0)

Power Consumption

<11.5W

Operating Conditions

-30° ~ +60° C / Less than 95% RH

Ingress Protection

IP67

Weather Resistance

Yes

Vandal Resistance

N/A

Series

Ultimate Series

Camera Type

Bullet

Housing

Metal

Pan/Tilt/Rotation

Pan: 0° ~ 360 ° ; Tilt: 0° ~ 90° ; Rotation: 0° ~ 360°

Tri-Axis Mounting

ePoE

Dimensions

Ø273mm x 95mm x 96mm

Net Weight

1.07kg

Warranty (Years)
