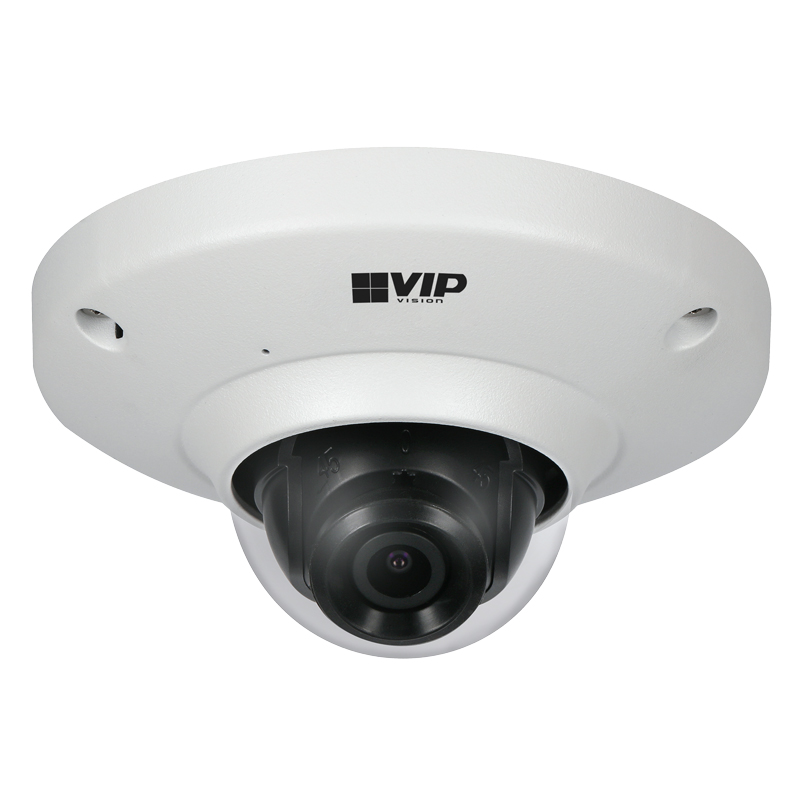

Fisheye Series 5.0MP 360° Fisheye Dome

Brand logo
SKU VSIP5MPFEV2
Brand logo

Fisheye Series 5.0MP 360° Fisheye Dome

SKU VSIP5MPFEV2

Available by special order only. Please contact us for lead times.

Designed to perform the duties of multiple cameras, the VSIP5MPFEV2 fisheye dome transforms your surveillance experience through panoramic and virtual PTZ modes.

Camera features:
• Stream up to 5.0MP (2560 x 1920) at 25fps
• 1.4mm F1.6 circular fisheye lens with 180° (H/V/D) viewing angle
• Five fisheye image dewarp modes including ePTZ & panorama
• Efficient H.265 video compression technology
• Intelligent video functions, including motion detection
• Auto digital day/night & 3D digital noise reduction
• True WDR (120dB) & back/highlight compensation
• MicroSD card slot for at-the-edge recording, up to 128GB
• IP67/IK08 weather/vandal resistant housing
• Power via 12VDC or Power over Ethernet
• ONVIF, PSIA and CGI compliance

*Please note: Fish eye, dewarping functionality requires one of the following network video recorders:
• All NVRs from VIP Vision Ultimate Series (NVRxULTNP or later)
• Select NVRs from VIP Vision Professional Series (NVR8PRO4, NVR16PRO5/NP, NVR32PRO16P/NP, or later)

Suggested Products

Suggested product image
Adapter for Ceiling & Wall Mount Brackets
VSBKTA106
Suggested product image
780mm Extender for Ceiling Mount Bracket
VSBKTA117
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA136
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152E
Suggested product image
Right Angle Wall Mount Camera Bracket
VSBKTB203W
Suggested product image
760mm Ceiling Mount Dome Bracket
VSBKTB220C

Links and Downloads

VIP Vision FE Fisheye Dome Datasheet (PDF) 0.63 MB
VIP Vision FE Fisheye Dome Compatibility Guide (PDF) 0.88 MB
Network Camera Web 3.0 Operation Manual V2.0.5 8.46 MB
Accessory Compatibility Guide - Q1 2021 (PDF) 1.75 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/2.7’’ 5.0MP Progressive Scan CMOS
Max. Resolution
5.0 Megapixel
Effective Pixels
2592 (H) x 1944 (V)
RAM / ROM
512MB / 32MB
Ultra Low Light Colour
No
Min Illumination
Colour: 0.02 Lux (F1.6), 0.05 Lux/F1.6 (B/W)
S/N Ratio
> 50dB
Infrared
No
Infrared System
N/A
Lens
Lens Type
Fixed
Lens / Iris
1.4mm F1.6 Fixed Circular Fisheye Lens
Field of View
Horizontal: 180°, Vertical: 180°
Focus
Fixed
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
28m
Observe (63px/m)
11m
Recognise (125px/m)
6m
Identify (250px/m)
3m
Video
Resolution
5.0MP (2560 x 1920) to CIF (352 x 288)
Frame Rate (Main)
5.0MP (1~25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
N/A
Video Compression
H.265+ / H.265 / H.264+ / H.264
Bit Rate
H.265: 24 ~ 10240Kbps / H.264: 14 ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (Electronic) / Color / B&W
Lighting Compensation
BLC / HLC / True WDR (120dB)
Smart Scene Adaptive (SSA)
White Balance
Auto / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Dewarping Modes: Original / 360° Panorama / Dual 180° Panorama / Overview + 3 Views / Quad View / Virtual PTZ
IVS
IVS
Yes
Intelligent Functions
Tripwire, Intrusion, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Defog, Heat Map
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
RTMP Support
No
Interface
Video Interface
N/A
Audio Interface
1 Input (Built-in microphone), 1 Output / Compression: G.711a/G.711Mu/AAC/G.726
Alarm Interface
N/A
RS485
N/A
Edge Storage
MicroSD Card (up to 128GB)
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
<3.4W
Operating Conditions
-30° ~ +60° C / Less than 95% RH
Ingress Protection
IP67
Weather Resistance
Yes
Vandal Resistance
IK08
Series
Fisheye Series
Camera Type
Fisheye Dome
Housing
Metal
Pan/Tilt/Rotation
N/A
Tri-Axis Mounting
No
ePoE
No
Dimensions
Ø110mm x 56mm
Net Weight
0.38kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
138 mm
Height
139 mm
Depth
116 mm
Weight
0.40 kg
