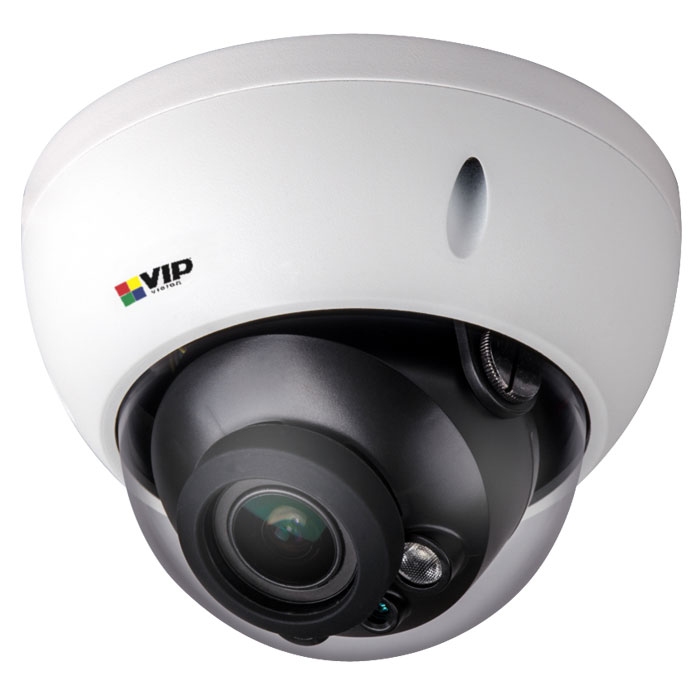

Professional Series 4.0MP WDR Infrared Motorised Dome

Brand logo
SKU VSIP4MPVDIRM2.8-12
Brand logo

Professional Series 4.0MP WDR Infrared Motorised Dome

SKU VSIP4MPVDIRM2.8-12

Stock may be limited. Please contact us for availability or for an alternative item.

The versatile dome camera that can fit any application: the VSIP4MPVDIRM2.8-12 professional IP dome camera features an array of tools to perform in just about any environment, with a vandal & weather rated housing, infrared, remote zoom control, true WDR & more.

Camera features:
• Stream up to 4.0MP (2688 x 1520, 16:9 ratio) at 20fps
• Motorised lens & fixed iris for up to 4x optical zoom
• 30m infrared range; true day/night (auto ICR)
• MicroSD slot for recording at the edge up to 128GB
• Back/highlight compensation & true WDR (120dB)
• 3D digital noise reduction & auto white balance
• IP67/IK10 weather/vandal rated dome housing
• ONVIF, PSIA and CGI compliance

Suggested Products

Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA123
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA137
Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152
Suggested product image
Rain Cover Dome Camera Bracket
VSBKTA200W
Suggested product image
Recessed Ceiling Mount Bracket
VSBKTB200C
Suggested product image
Right Angle Wall Mount Camera Bracket
VSBKTB203W

Links and Downloads

Professional Series - Motorised Domes Product Brochure (PDF) 0.50 MB
Product Feature Guide - VIP Vision Corridor Mode (PDF) 1.56 MB
Bracket Compatibility Guide 06-2017 (PDF) 0.83 MB
Network Camera Web 3.0 Operation Manual V2.0.5 8.46 MB
VSIP4MPVDIRM2.8-12 Firmware 2021-09-07 12.98 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/3” 4.0 Megapixel Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
Ultra Low Light Colour
No
Min Illumination
0.1 Lux at F1.4 (Colour) / 0 Lux at F1.4 (IR on)
S/N Ratio
> 50dB
Infrared
Yes
Infrared System
30m range
Lens
Lens Type
Motorised Varifocal
Lens / Iris
2.8 ~ 12mm F1.4 Motorised Lens
Field of View
100° (wide) ~ 35° (tele)
Focus
N/A
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
Observe (63px/m)
Recognise (125px/m)
Identify (250px/m)
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1~20fps) / 2.0MP (1~25/30fps)
Frame Rate (Sub)
D1 (1~25/30fps)
Frame Rate (Third)
N/A
Video Compression
H.264+ / H.264
Bit Rate
H264: 24K ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Colour / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
White Balance
Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
N/A
IVS
IVS
No
Intelligent Functions
Motion Detection, Region of Interest, Privacy Masking, Smart Infrared
Network
Ethernet
RJ-45 (10/100 Base-T)
Protocol
Streaming Method
Unicast / Multicast
Max. User Access
N/A
RTMP Support
Interface
Video Interface
N/A
Audio Interface
N/A
Alarm Interface
N/A
RS485
N/A
Edge Storage
MicroSD slot up to 128GB
Interoperability
ONVIF, PSIA, CGI
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
<10W
Operating Conditions
-30° to 60°C / RH95% (max)
Ingress Protection
IP67
Weather Resistance
Yes
Vandal Resistance
IK10
Series
Professional Series
Camera Type
Dome
Housing
Metal & Polycarbonate Dome
Pan/Tilt/Rotation
N/A
Tri-Axis Mounting
Yes
ePoE
Dimensions
Ø122 x 89mm
Net Weight
0.40kg
Other
DORI (Detect)
Wide: 68m/ Tele: 193m
DORI (Identify)
Wide: 7m / Tele: 19m
DORI (Observe)
Wide: 27m/ Tele: 77m
DORI (Recognise)
Wide: 14m/ Tele: 39m
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
173 mm
Height
167 mm
Depth
170 mm
Weight
0.80 kg
