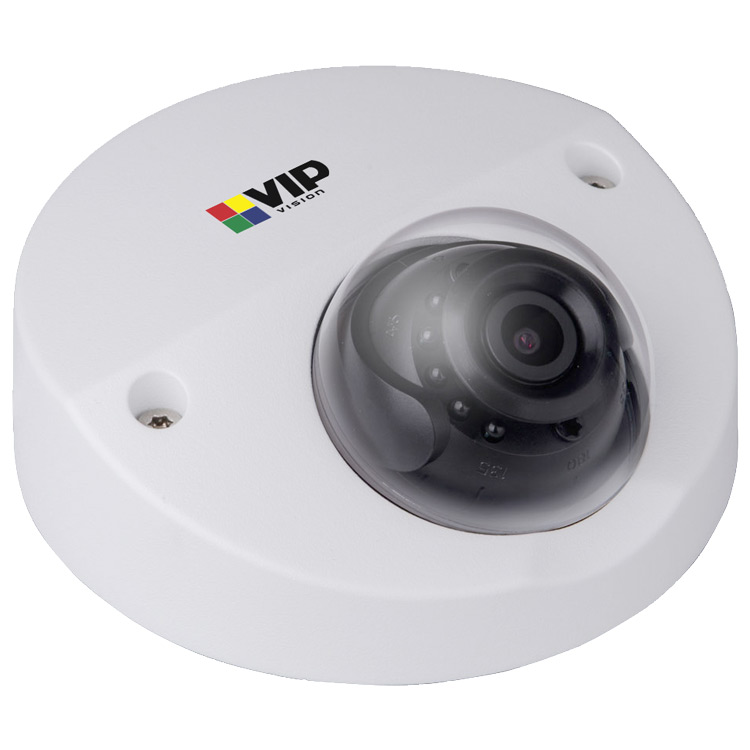

Professional Series 4.0MP WDR Infrared Fixed Wedge Dome

Brand logo
SKU VSIP4MPVDIRF
Brand logo

Professional Series 4.0MP WDR Infrared Fixed Wedge Dome

SKU VSIP4MPVDIRF

Uniquely powerful and compact, this dome delivers a wide range of features in a housing that is only 50mm tall. Experience double Full HD 1080p resolution, infrared, true WDR and more in robust vandal & weather resistant housing.

Camera features:
• Stream up to 4.0 megapixel (2688 x 1520) at 20fps
• 2.8mm F1.8 fixed lens with 106° viewing angles
• Day/night (auto ICR) with 20m maximum infrared range
• Wide dynamic range (120db) with back/highlight compensation
• 3D digital noise reduction and auto white balance
• MicroSD card slot for at-the-edge recording, up to 128GB
• Audio input/output and alarm input/output interfaces
• Supports triple stream and smart detection technologies
• IP67/IK10 weather/vandal resistant housing for external use
• ONVIF, PSIA and CGI compliance

Suggested Products

Suggested product image

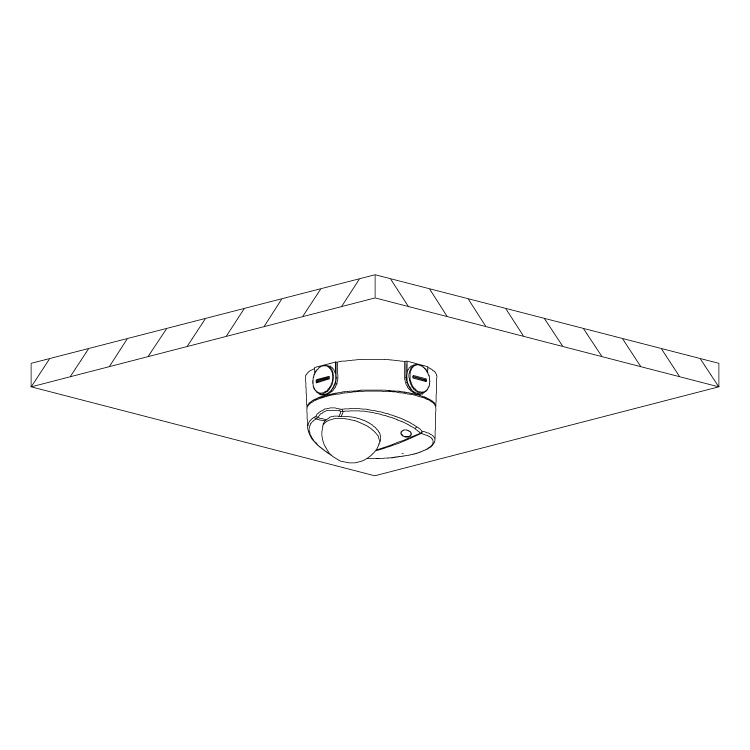

Adapter/Junction Box for Surveillance Cameras
VSBKTA139
Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image

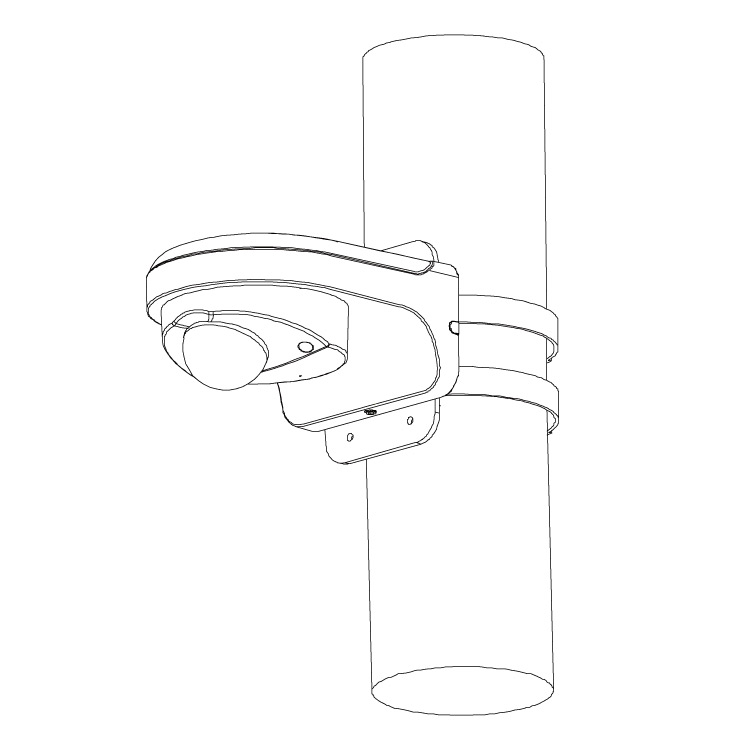

Dual Clamp Pole Mount Camera Bracket
VSBKTA152
Suggested product image
Auto Guard Mobile Dome Camera Bracket
VSBKTA201W
Suggested product image

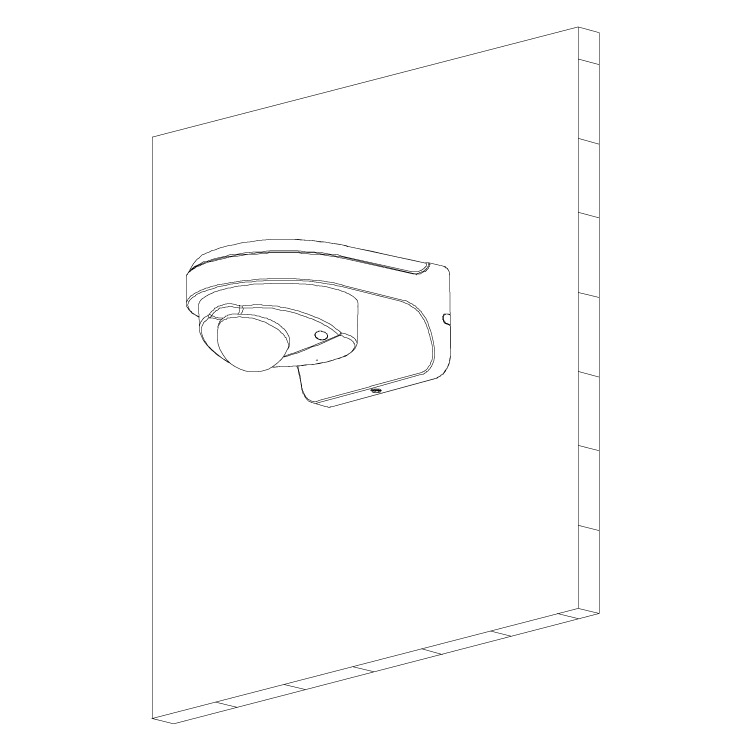

Right Angle Wall Mount Camera Bracket
VSBKTB204W

Links and Downloads

VSIP4MPVDIRF Product Brochure (PDF) 0.69 MB
Product Feature Guide - VIP Vision Corridor Mode (PDF) 1.56 MB
Quick Install Guide (PDF) 1.32 MB
Network Camera Web 3.0 Operation Manual V2.0.5 8.46 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/3” 4.0 Megapixel Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
Ultra Low Light Colour
No
Min Illumination
0.01 Lux at F2.0 (Colour) / 0 Lux at F2.0 (IR on)
S/N Ratio
> 50dB
Infrared
Yes
Infrared System
20m range
Lens
Lens Type
Fixed
Lens / Iris
2.8mm F1.8 Fixed Lens
Field of View
106°
Focus
N/A
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
Observe (63px/m)
Recognise (125px/m)
Identify (250px/m)
Video
Resolution
Configurable from 4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1~20fps) / 3.0MP and lower (1~25fps)
Frame Rate (Sub)
D1 and lower (1 ~ 25fps)
Frame Rate (Third)
720p and lower (1 ~ 20fps)
Video Compression
H.264 / H.264B / H.264H / MJPEG
Bit Rate
H.264: 32K ~ 10Mbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Colour / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
White Balance
Auto / Sunny / Night / Outdoor / Customised
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
N/A
IVS
IVS
No
Intelligent Functions
Scene Change / Face Detection
Network
Ethernet
RJ-45 (10/100 Base-T)
Protocol
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
Interface
Video Interface
N/A
Audio Interface
Built-in Microphone / Compression: G.711a / G.711u / AAC
Alarm Interface
1 ch. Input / 1 ch. Output
RS485
N/A
Edge Storage
MicroSD slot up to 128GB
Interoperability
ONVIF, PSIA, CGI Compliant
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
< 5W
Operating Conditions
-30° to 60°C / RH95% (max)
Ingress Protection
IP67
Weather Resistance
Yes
Vandal Resistance
IK10
Series
Professional Series
Camera Type
Dome
Housing
Metal & Polycarbonate Wedge Dome
Pan/Tilt/Rotation
N/A
Tri-Axis Mounting
Yes
ePoE

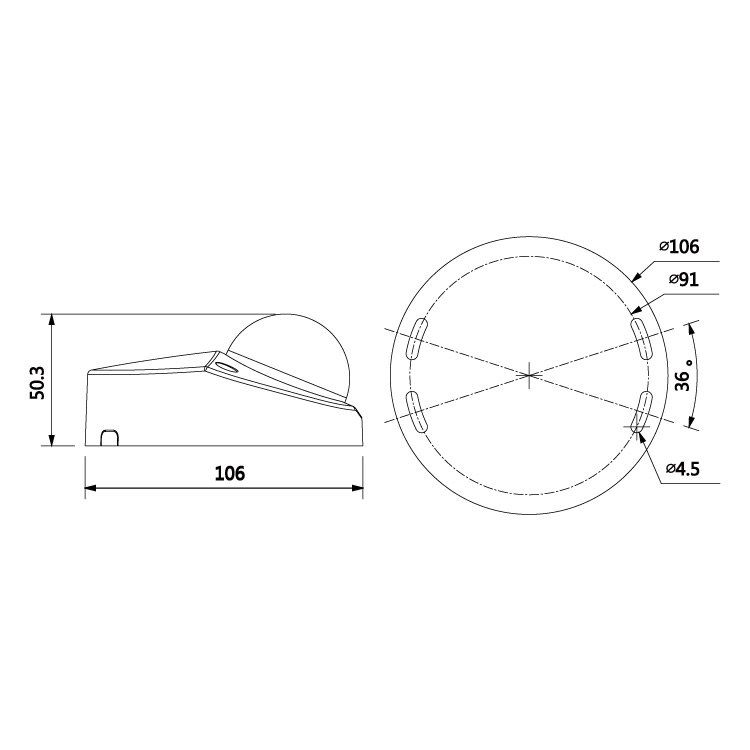

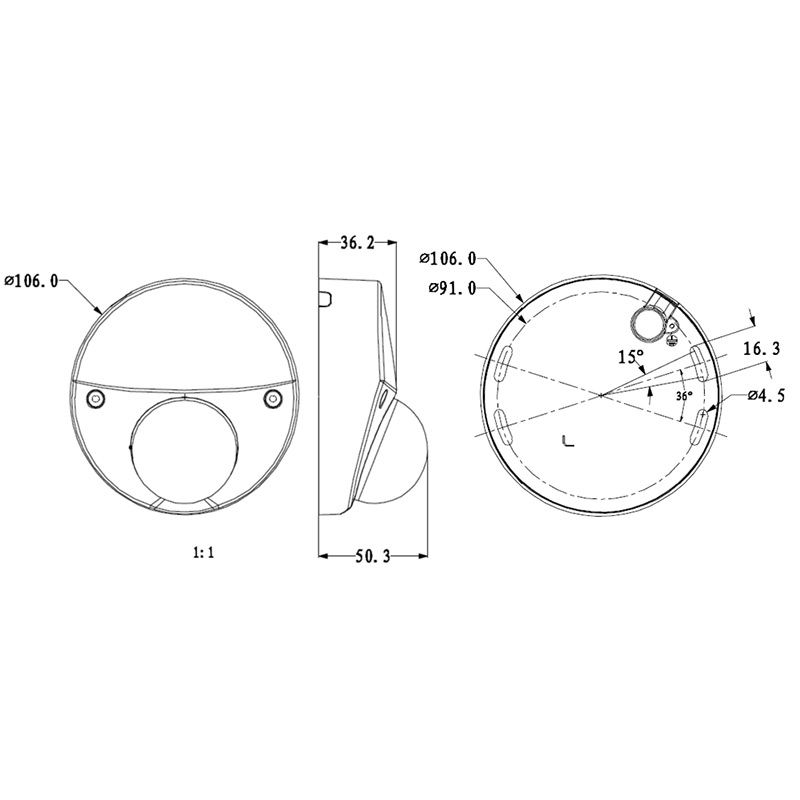

Dimensions
Ø106 x 50mm
Net Weight
0.35kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
194 mm
Height
192 mm
Depth
205 mm
Weight
1.10 kg
