Camera
Image Sensor
1/3’’ 4.0MP Progressive Scan CMOS Effective Pixels
Max. Resolution
4.0 Megapixel
Effective Pixels
2592 (H) x 1520 (V)
RAM / ROM
1024MB / 128MB
Ultra Low Light Colour
No
Min Illumination
0.05 Lux/F1.6 (Color), 0.005 Lux/F1.6 (B/W)
S/N Ratio
> 55dB
Infrared
No
Infrared System
N/A
Lens
Lens Type
Motorised Varifocal
Lens / Iris
4.5 ~ 135mm F1.6 ~ F4.4 Motorised Lens
Field of View
Horizontal: 60° ~ 2.2° (30x Optical Zoom)
Focus
Auto/Manual / 1m Min. Focus Distance
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
2700m
Observe (63px/m)
1080m
Recognise (125px/m)
540m
Identify (250px/m)
270m
PTZ
Pan / Tilt Range
Pan: 0° ~ 360° (endless) / Tilt: 0° ~ 90° / Auto-flip 180°
PTZ Speed
Preset: Pan: 500°/s; Tilt: 500°/s / Manual: Pan: 350°/s; Tilt: 250°/s
Modes / Presets
Up to 300 presets / 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Start-up Action
Auto-restore to previous PTZ/lens status
Auto Tracking
Support
Video
Resolution
4.0MP (2592 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265 / H.264 / MJPEG
Bit Rate
H.265/H.264: 448 ~ 8192Kbps / MJPEG: 5120 ~ 10240Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto / ATW / Indoor / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
Ultra DNR 2D/3D
Picture Control
Flip 180°
IVS
IVS
Yes
Intelligent Functions
Tripwire, Intrusion, Abandoned/Missing Object, Face Detection, Motion Detection, Region of Interest, Privacy Masking (24 zones), Defog
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
Interface
Video Interface
N/A
Audio Interface
1 Input, 1 Output / Compression: G.711a, G.711mu, G.726, AAC
Alarm Interface
2 Inputs / 1 Output
RS485
N/A
Edge Storage
MicroSD Card (up to 128GB) / NAS / Local PC
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
24VDC/1.5A / PoE+ (802.3at)
Power Consumption
<13W
Operating Conditions
-30° ~ +60° C / Less than 90% RH
Ingress Protection
N/A
Weather Resistance
No
Vandal Resistance
IK10
Series
Professional Series

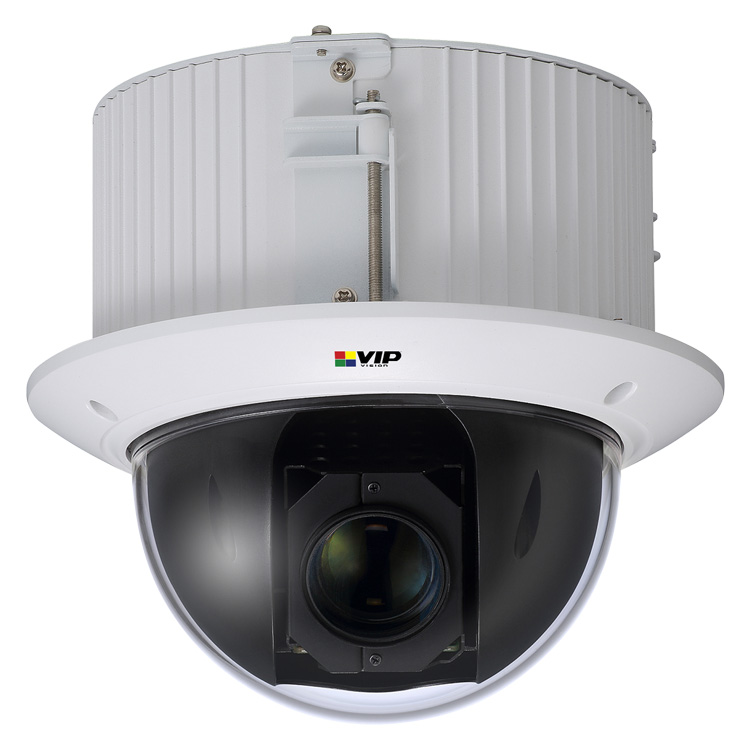

Camera Type
PTZ Dome
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~ 360 ° ; Tilt: 0° ~ 90° ; Rotation: 0° ~ 360°
Tri-Axis Mounting
Yes
ePoE
No

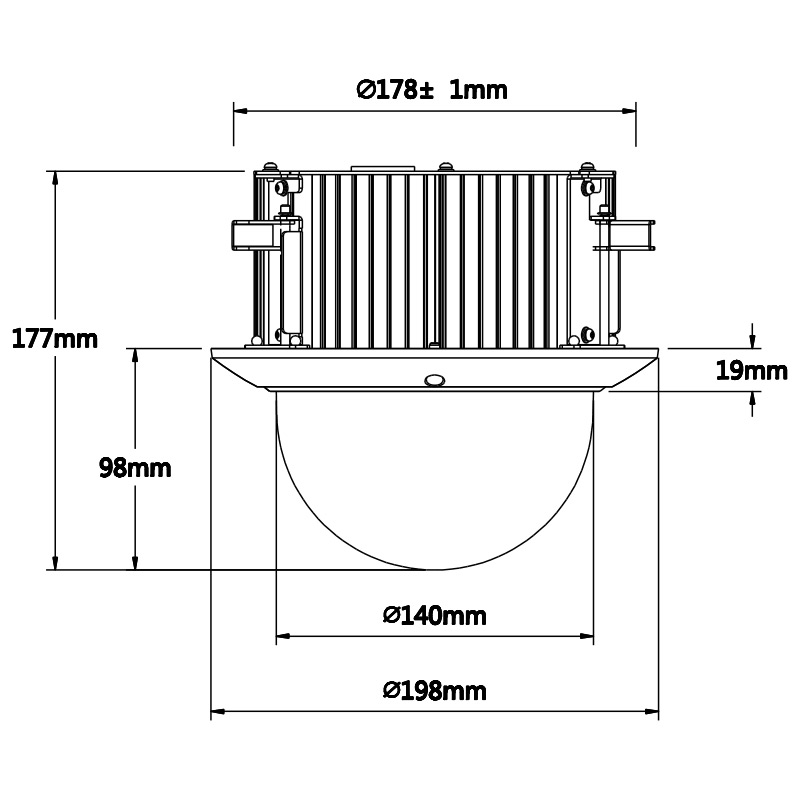

Dimensions
Ø198mm x 177mm
Net Weight
2.20kg
Warranty (Years)
4
