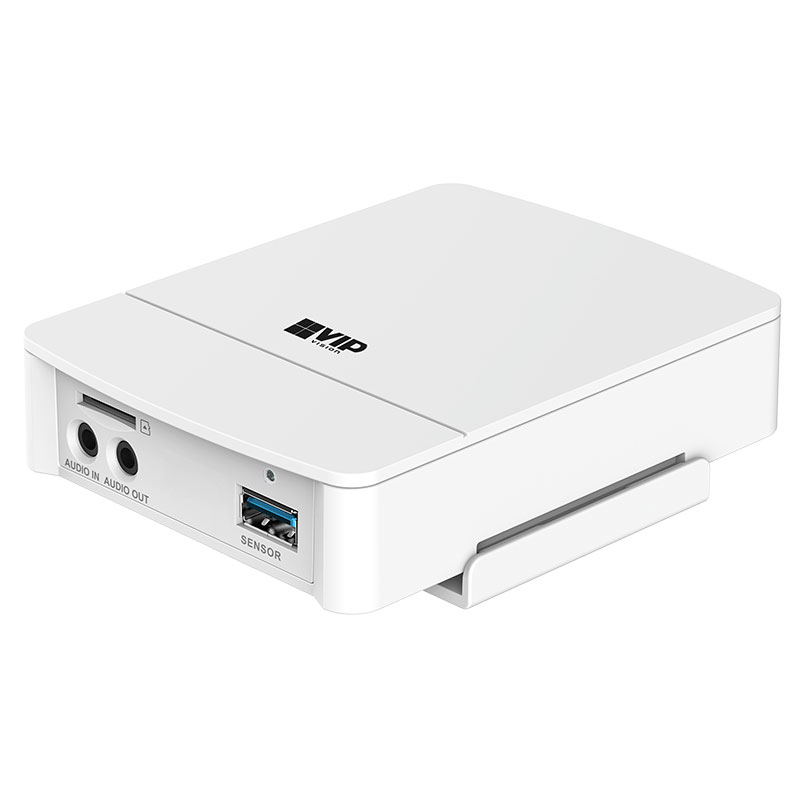

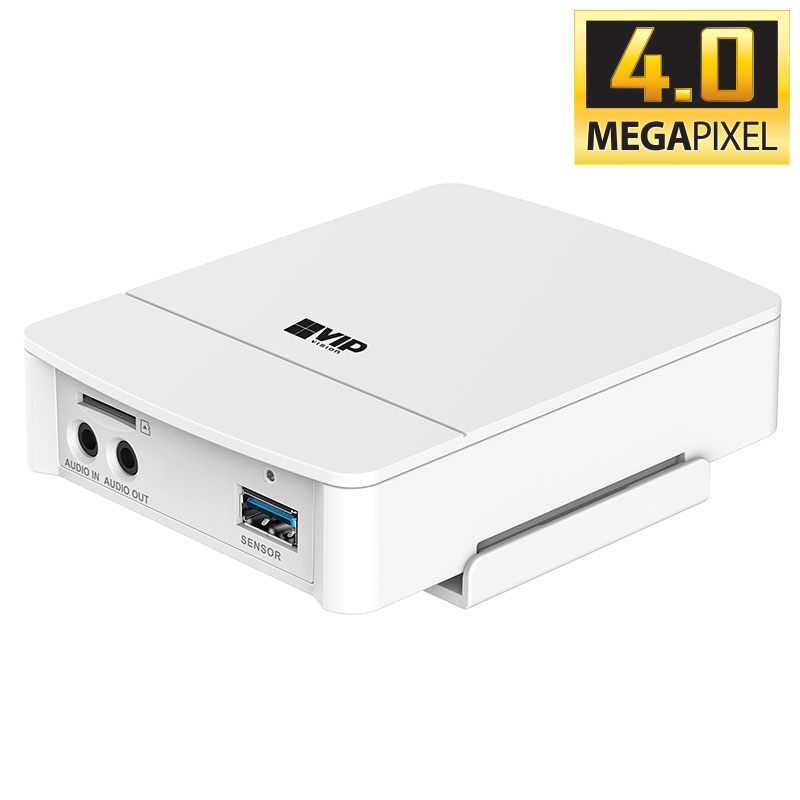

Pinhole Series 4.0MP Pinhole Camera Main Box

Brand logo
SKU VSIP4MPPHM
Brand logo

Pinhole Series 4.0MP Pinhole Camera Main Box

SKU VSIP4MPPHM

Stock may be limited. Please contact us for availability or for an alternative item.

The VSIP4MPPHM is a pinhole camera main control unit, requiring a VIP Vision pinhole camera lens. Performs discreet surveillance operations at beyond HD resolution, with true WDR and backlight/highlight compensation to ensure a clear image.

Camera features:
• Stream up to 4.0MP (2688 x 1520) at 25fps
• 2.8mm fixed lens with 83° viewing angle
• Backlight/highlight compensation with true WDR (120dB)
• Day/night (electronic), 3D noise reduction & auto white balance
• Smart detection support including face detection
• MicroSD card slot for at-the-edge recording, up to 128GB
• Power via 12VDC or Power over Ethernet (802.3af)

Requires the VSIP4MPPHC camera lens.

Suggested Products

Suggested product image
Pinhole Series 4.0MP Fixed Pinhole Camera Lens
VSIP4MPPHC

Links and Downloads

VIP Vision MPPH / PINHOLE Camera Datasheet (PDF) 1.09 MB
Network Camera Web 3.0 Operation Manual V2.0.5 8.46 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
-
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
512MB / 32MB
Ultra Low Light Colour
No
Min Illumination
-
S/N Ratio
> 50dB
Infrared
No
Infrared System
-
Lens
Lens Type
Fixed
Lens / Iris
-
Field of View
-
Focus
-
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
56m
Observe (63px/m)
22m
Recognise (125px/m)
11m
Identify (250px/m)
5m
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
720p (1 ~ 25fps)
Video Compression
H.265 / H.264
Bit Rate
H.265: 14 ~ 9984Kbps / H.264: 24 ~ 10240Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (Electronic) / Colour / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
No
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)
IVS
IVS
Yes
Intelligent Functions
Face Detection, Tripwire, Intrusion, Abandoned/Missing Object, Motion Detection (4 Zone), Region of Interest (4 Zone), Privacy Masking (4 Zone)
Network
Ethernet
RJ45 (10/100 Base-T)
Protocol
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
No
Interface
Video Interface
N/A
Audio Interface
1 Input, 1 Output / Compression: G.711a, G.711mu, G.726, AAC
Alarm Interface
2 Inputs / 2 Output
RS485
N/A
Edge Storage
MicroSD Card (up to 128GB) / NAS / Local PC
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
<6W
Operating Conditions
-30° ~ +60° C / Less than 95% RH
Ingress Protection
N/A
Weather Resistance
No
Vandal Resistance
N/A
Series
Pinhole Series
Camera Type
Pinhole
Housing
Metal
Pan/Tilt/Rotation
N/A
Tri-Axis Mounting
No
ePoE
No

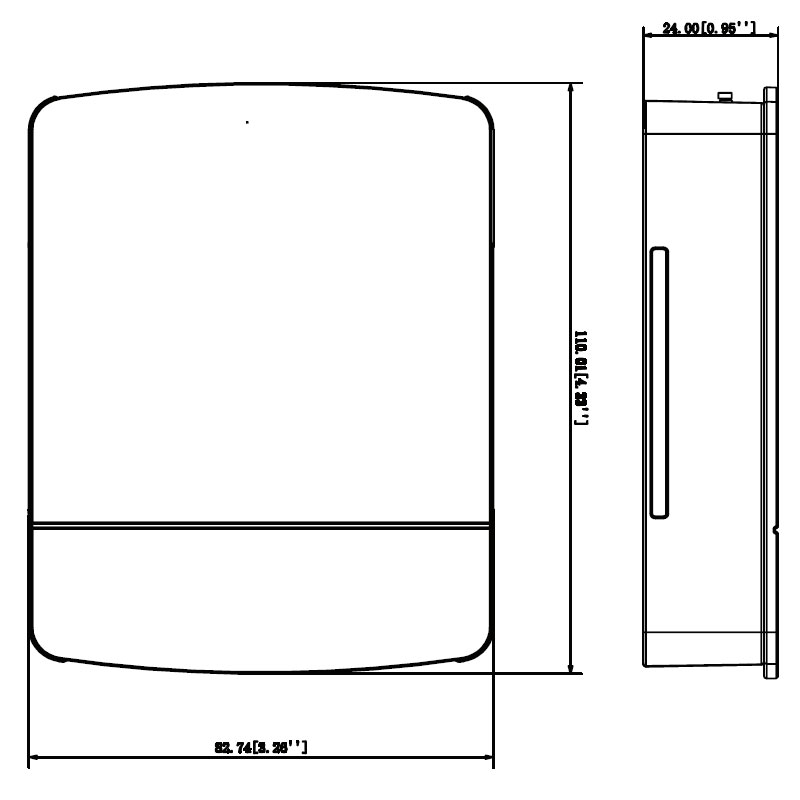

Dimensions
110 x 83 x 24mm
Net Weight
0.21kg
Other
RS232
1 Port
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
182 mm
Height
70 mm
Depth
147 mm
Weight
0.30 kg
