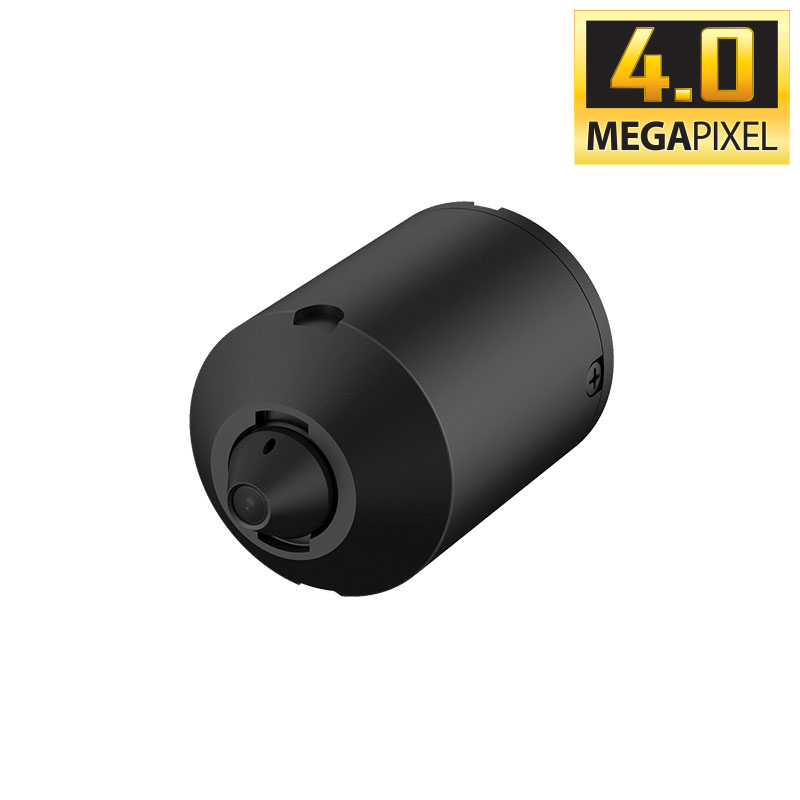

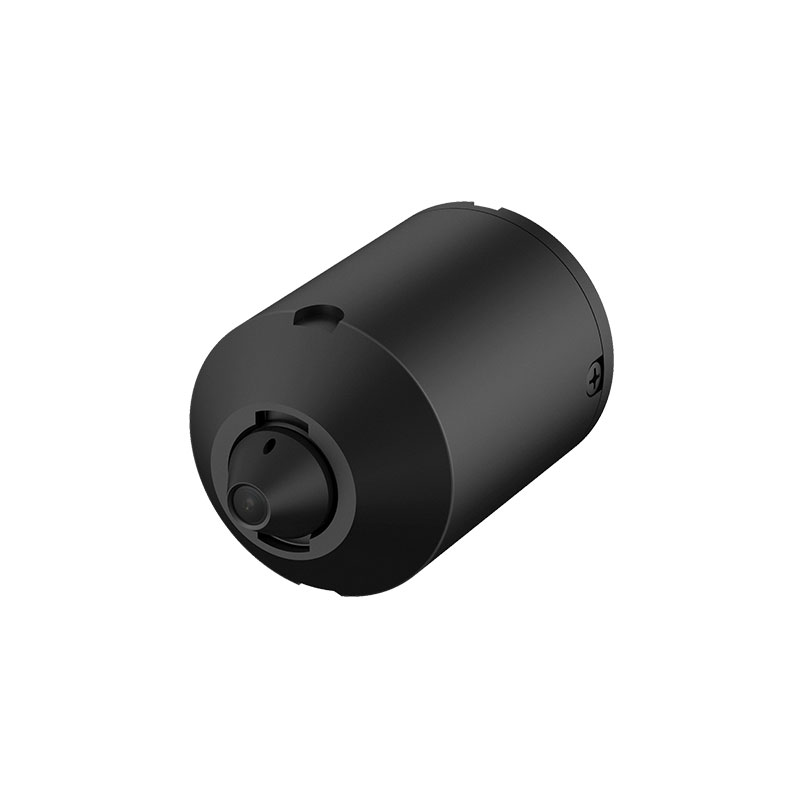

Pinhole Series 4.0MP Fixed Pinhole Camera Lens

Brand logo
SKU VSIP4MPPHC
Brand logo

Pinhole Series 4.0MP Fixed Pinhole Camera Lens

SKU VSIP4MPPHC

The VSIP4MPPHC is a 4.0MP IP pinhole camera lens for the VSIP4MPPHM designed for discreet and covert surveillance applications, such as controlled ingress points, shelf surveillance, in-vehicles, ATMs and more.

Camera features:
• Stream up to 4.0MP (2688 x 1520) at 25fps
• 2.8mm fixed lens with 83° viewing angle
• Colour at 0.02 Lux minimum illumination
• Compact Ø31 x 49mm design

Requires the VSIP4MPPHM main box.

Suggested Products

Suggested product image
Pinhole Series 4.0MP Pinhole Camera Main Box
VSIP4MPPHM

Links and Downloads

VIP Vision MPPH / PINHOLE Camera Datasheet (PDF) 1.09 MB
Network Camera Web 3.0 Operation Manual V2.0.5 8.46 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/2.7” 4.0 Megapixel Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
-
Ultra Low Light Colour
No
Min Illumination
0.02 Lux at F2.4 (Colour) / 0.04 Lux at F2.4 (B&W)
S/N Ratio
-
Infrared
No
Infrared System
N/A
Lens
Lens Type
Fixed
Lens / Iris
2.8mm F2.4 Fixed Lens
Field of View
Horizontal: 83.4°, Vertical: 44.9°
Focus
Detect: 61m / Observe: 24m / Recognise: 12m / ID: 6m
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
61m
Observe (63px/m)
24m
Recognise (125px/m)
12m
Identify (250px/m)
6m
Video
Resolution
-
Frame Rate (Main)
-
Frame Rate (Sub)
-
Frame Rate (Third)
-
Video Compression
-
Bit Rate
-
Bit Rate Control
-
Day/Night
-
Lighting Compensation
-
Smart Scene Adaptive (SSA)
No
White Balance
-
Gain Control
-
Noise Reduction
-
Picture Control
-
IVS
IVS
No
Intelligent Functions
-
Network
Ethernet
-
Protocol
-
Streaming Method
-
Max. User Access
-
RTMP Support
No
Interface
Video Interface
-
Audio Interface
-
Alarm Interface
-
RS485
-
Edge Storage
-
Interoperability
-
Environmental
Power Supply
-
Power Consumption
-
Operating Conditions
-30° ~ +60° C / Less than 95% RH
Ingress Protection
N/A
Weather Resistance
No
Vandal Resistance
N/A
Series
Pinhole Series
Camera Type
Pinhole
Housing
Metal
Pan/Tilt/Rotation
N/A
Tri-Axis Mounting
No
ePoE
No

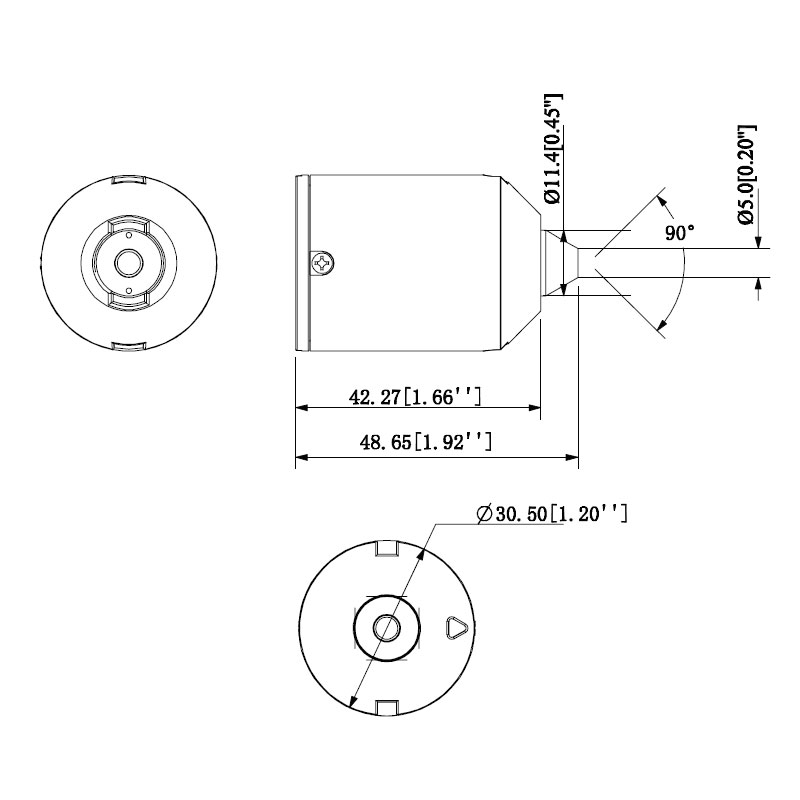

Dimensions
Ø31 x 49mm
Net Weight
0.40kg
Other
Category
Network Surveillance
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
182 mm
Height
70 mm
Depth
147 mm
Weight
0.05 kg
