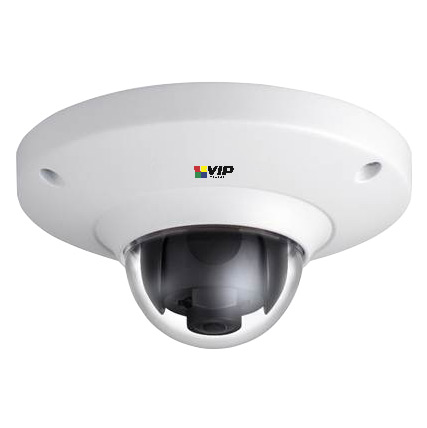

4.0 Megapixel 360° Fisheye Dome

Brand logo
SKU VSIP4MPFE
Brand logo

4.0 Megapixel 360° Fisheye Dome

SKU VSIP4MPFE

Stock may be limited. Please contact us for availability or for an alternative item.

Designed to perform the duties of multiple cameras, the Fisheye range from VIP Vision transforms your surveillance experience through panoramic and virtual PTZ modes.

Camera Features:
• Stream up to 4.0 megapixel (2592 x 1520) at 15 frames per second.
• 1.18mm F2.0 Circular Fisheye lens with 180° (H/V/D) viewing angle
• Five fisheye image dewarp modes including ePTZ & panorama
• 3D digital noise reduction and auto white balance
• MicroSD card slot for at-the-edge recording, up to 64GB
• Audio and alarm interface input/outputs
• Power via 12VDC or Power over Ethernet (802.3af)
• IK10 vandal resistant housing
• ONVIF, PSIA and CGI compliance


*Please note: Fish eye, dewarping functionality requires one of the following network video recorders:
• All NVRs from VIP Vision Ultimate Series (NVRxULTNP or later)
• Select NVRs from VIP Vision Professional Series (NVR8PRO4, NVR16PRO5/NP, NVR32PRO16P/NP, or later)

Suggested Products

Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA123
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA131
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152
Suggested product image
Right Angle Wall Mount Camera Bracket
VSBKTB203W

Links and Downloads

VSIP4MPFE Product Brochure (PDF) 0.21 MB
Bracket Compatibility Guide 06-2017 (PDF) 0.83 MB
Network Camera Web 3.0 Operation Manual V2.0.5 8.46 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Alarm Interface
1 ch. input / 1 ch. output
Angle of View
180°
Audio Compression
G.711a / G.711u / PCM
Audio Input
1 ch. Input / 1ch. Output (built-in mic)
Backlight Compensation
BLC / HLC / DWDR
Bit Rate
H.264: 20K ~ 8192Kbps
Camera Style
Vandal Resistant Fisheye Dome
Camera Type
Fisheye Dome
Day/Night
Electronic / Colour / B&W
Dewarping Modes
Original / 360° Panorama / Dual 180° Panorama / Overview + 3 Views / Quad View / Virtual PTZ

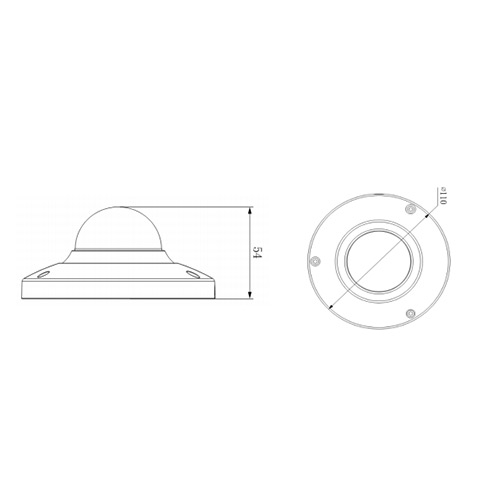

Dimensions
Ø110 x 54mm
Effective Pixels
2592 (H) x 1520 (V)
Electronic Shutter
Auto / Manual (1/3 ~ 1/10000s)
Fisheye Correction Modes
TBA
Frame Rate - Main
4.0MP (1~15fps) / 3.0MP and lower (1~25fps)
Frame Rate - Sub
D1 and lower (1 ~ 25fps)
Frame Rate - Third
N/A
Gain Control
Auto / Manual
Image Sensor
1/3” 4.0 Megapixel Progressive Scan CMOS
Ingress Protection
N/A
Lens
1.18mm F2.0 Fixed Circular Fisheye Lens
Lens Type
Fixed
Max. Resolution
4.0 Megapixel
Maximum Infrared Range
N/A
Memory Slot
MicroSD slot up to 64GB
Minimum Illumination
0.01 Lux at F2.0 (Colour) / 0.001 Lux at F2.0 (B&W)
Network Interface
RJ45 (10/100 Base-T)
Noise Reduction
3D Digital Noise Reduction
ONVIF Conformance
ONVIF, PSIA, CGI Compliant
Operating Environment
-30° to 60°C / RH95% (max)
Power Consumption
< 6W
Power Input
12VDC / PoE (802.3af)
Signal Noise Ratio
> 50dB
Smart Functions
N/A
Tri-Axis Mounting
No
Vandal Resistant
IK10
Video Compression
H.264 / MJPEG
Video Output
N/A
Video Resolution
Configurable from 4.0MP (2592 x 1520) to CIF (352 x 288)
Weight
0.25kg
White Balance
Auto / Manual
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
138 mm
Height
139 mm
Depth
116 mm
Weight
0.40 kg
