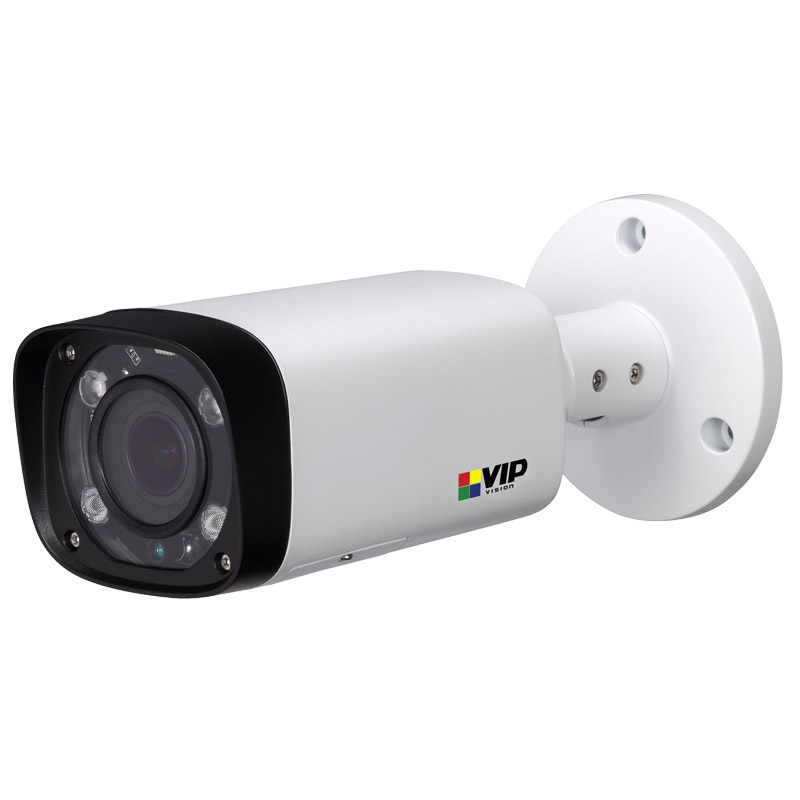

VSIP4MPFBIRMD: Professional Series 4.0MP WDR Infrared Motorised Bullet

Specifications

Camera

Image Sensor

1/3’’ 4.0MP Progressive Scan Exmor CMOS

Max. Resolution

4.0 Megapixel

Effective Pixels

2688 (H) x 1520 (V)

RAM / ROM

512MB / 32MB

Ultra Low Light Colour

Min Illumination

0.03 Lux/F1.4 (Color), 0 Lux/F1.4 (IR on)

S/N Ratio

> 45dB

Infrared

Yes

Infrared System

4 x Infrared LED, 60m range, Auto/manual on/off control

Lens

Lens Type

Motorised Varifocal

Lens / Iris

2.7 ~ 13.5mm F1.4 Motorised Varifocal Lens with Fixed Iris

Field of View

Horizontal: 104°~28°, Vertical: 55°~16° (5x Optical Zoom)

Focus

Auto Focus / 0.2m Min. Focus Distance

DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Detect (25px/m)

64m (wide) / 222m (tele)

Observe (63px/m)

26m (wide) / 89m (tele)

Recognise (125px/m)

13m (wide) / 44m (tele)

Identify (250px/m)

6m (wide) / 22m (tele)

Video

Resolution

4.0MP (2688 x 1520) to CIF (352 x 288)

Frame Rate (Main)

4.0MP (1 ~ 20fps) / 3.0MP (1 ~ 25fps)

Frame Rate (Sub)

D1 (1 ~ 25fps)

Frame Rate (Third)

N/A

Video Compression

H.265 / H.264

Bit Rate

H.265: 12 ~ 8448Kbps / H.264: 32 ~ 10240Kbps

Bit Rate Control

Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night

Auto (ICR) / Color / B&W

Lighting Compensation

BLC / HLC / WDR (120dB)

Smart Scene Adaptive (SSA)

White Balance

Auto / Natural / Street Lamp / Outdoor / Manual

Gain Control

Auto / Manual

Noise Reduction

3D DNR

Picture Control

Mirror / Flip (0°, 90°, 180°, 270°)

IVS

Intelligent Functions

Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP

Streaming Method

Unicast / Multicast

Max. User Access

10 Users / 20 Users

RTMP Support

Interface

Video Interface

N/A

Audio Interface

N/A

Alarm Interface

N/A

RS485

N/A

Edge Storage

MicroSD Card (up to 128GB) / NAS / Local PC

Interoperability

ONVIF / PSIA / CGI

Environmental

Power Supply

12VDC / PoE (802.3af) (Class 0)

Power Consumption

<13W

Operating Conditions

-30° ~ +60° C / Less than 95% RH

Ingress Protection

IP67

Weather Resistance

Yes

Vandal Resistance

N/A

Series

Professional Series

Camera Type

Bullet

Housing

Metal

Pan/Tilt/Rotation

Pan: 0° ~ 360 °; Tilt: 0° ~ 90°; Rotation: 0° ~ 360°

Tri-Axis Mounting

ePoE

Dimensions

Ø72mm x 80mm x 213mm

Net Weight

0.685kg

Warranty (Years)
