Professional Series 4.0MP WDR Infrared Motorised Bullet

Brand logo
SKU VSIP4MPFBIRM2.8-12
Brand logo

Professional Series 4.0MP WDR Infrared Motorised Bullet

SKU VSIP4MPFBIRM2.8-12

Stock may be limited. Please contact us for availability or for an alternative item.

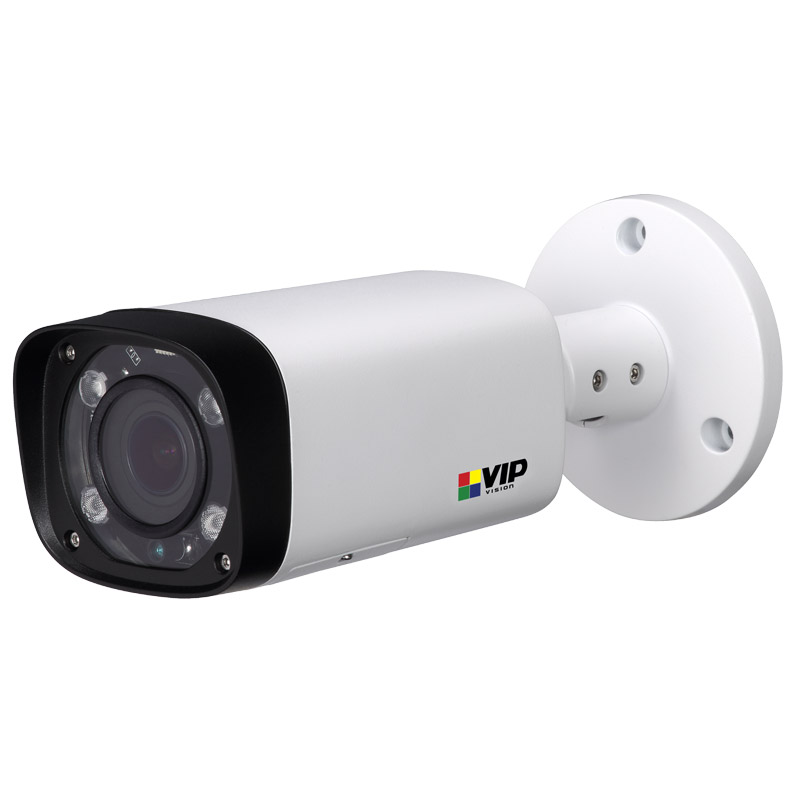

The VSIP4MPFBIRM2.8-12 professional bullet camera features a motorised varifocal lens for remote configuration of focal length, allowing you to enjoy hassle free surveillance installation and adjustment should your surveillance requirements or environment change.

Camera features:
• Stream up to 4.0MP (2688 x 1520, 16:9 ratio) at 20fps
• Motorised lens & fixed iris for up to 4x optical zoom
• Long 60m infrared range; true day/night (auto ICR)
• MicroSD slot for recording at the edge up to 128GB
• Back/highlight compensation & true WDR (120dB)
• 3D digital noise reduction & auto white balance
• IP67 weather rated housing for outdoor use
• ONVIF, PSIA and CGI compliance

Suggested Products

Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA122
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA135
Suggested product image

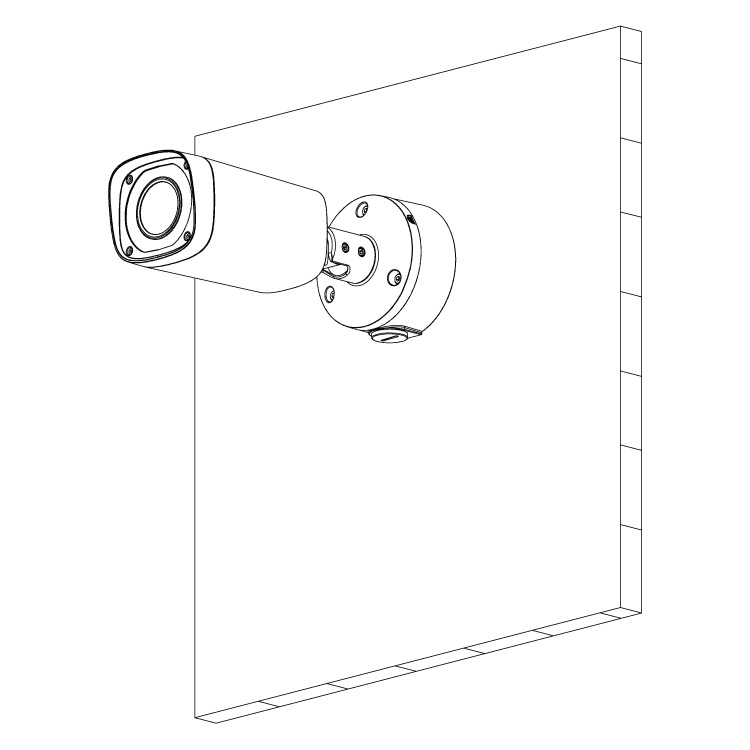

Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image

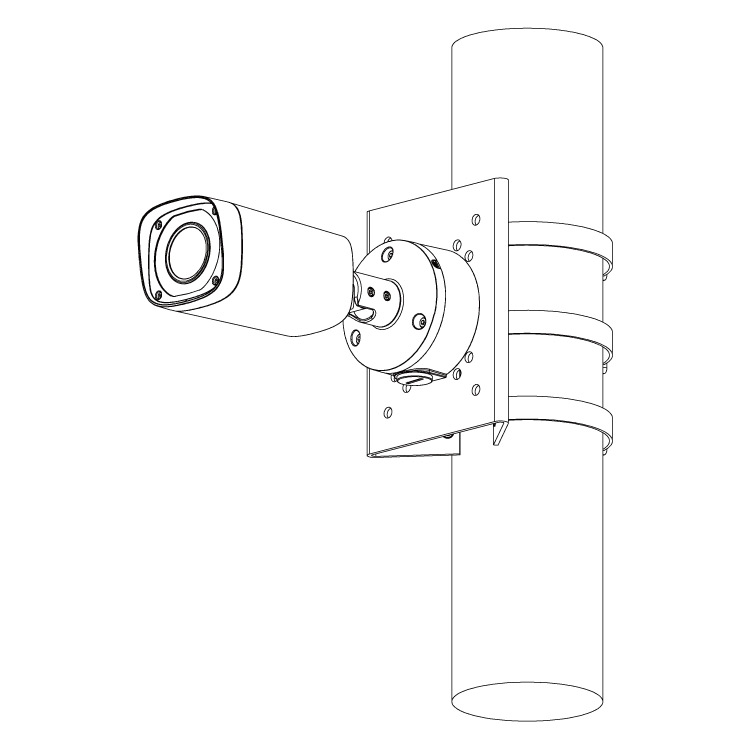

Dual Clamp Pole Mount Camera Bracket
VSBKTA152

Links and Downloads

PRO Series - Motorised Bullets Product Brochure (PDF) 0.51 MB
Product Feature Guide - VIP Vision Corridor Mode (PDF) 1.56 MB
Bracket Compatibility Guide 06-2017 (PDF) 0.83 MB
Network Camera Web 3.0 Operation Manual V2.0.5 8.46 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/3” 4.0 Megapixel Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
Ultra Low Light Colour
Min Illumination
0.1 Lux at F1.4 (Colour) / 0 Lux at F1.4 (IR on)
S/N Ratio
> 50dB
Infrared
Infrared System
60m range
Lens
Lens Type
Motorised Varifocal
Lens / Iris
2.8 ~ 12mm F1.4 Motorised Lens with Fixed Iris
Field of View
100° (wide) ~ 35° (tele)
Focus
Auto Focus
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
Observe (63px/m)
Recognise (125px/m)
Identify (250px/m)
Video
Resolution
Configurable from 4.0MP (2560 x 1440) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1~20fps) / 3.0MP (1~25/30fps)
Frame Rate (Sub)
D1 (1~25/30fps)
Frame Rate (Third)
N/A
Video Compression
H.264 / H.264+
Bit Rate
H.264: 24K ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Colour / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)
IVS
IVS
No
Intelligent Functions
Motion Detection, Region of Interest, Privacy Masking, Smart Infrared
Network
Ethernet
RJ-45 (10/100 Base-T)
Protocol
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
Interface
Video Interface
N/A
Audio Interface
N/A
Alarm Interface
N/A
RS485
Edge Storage
MicroSD slot up to 128GB
Interoperability
ONVIF, PSIA, CGI
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
< 13W
Operating Conditions
-30° to 60°C / RH95% (max)
Ingress Protection
IP67
Weather Resistance
Vandal Resistance
N/A
Series
Professional Series
Camera Type
Bullet
Housing
Metal
Pan/Tilt/Rotation
Pan:0° ~360 °; Tilt:0° ~90°; Rotation:0° ~360°
Tri-Axis Mounting
No
ePoE
Dimensions

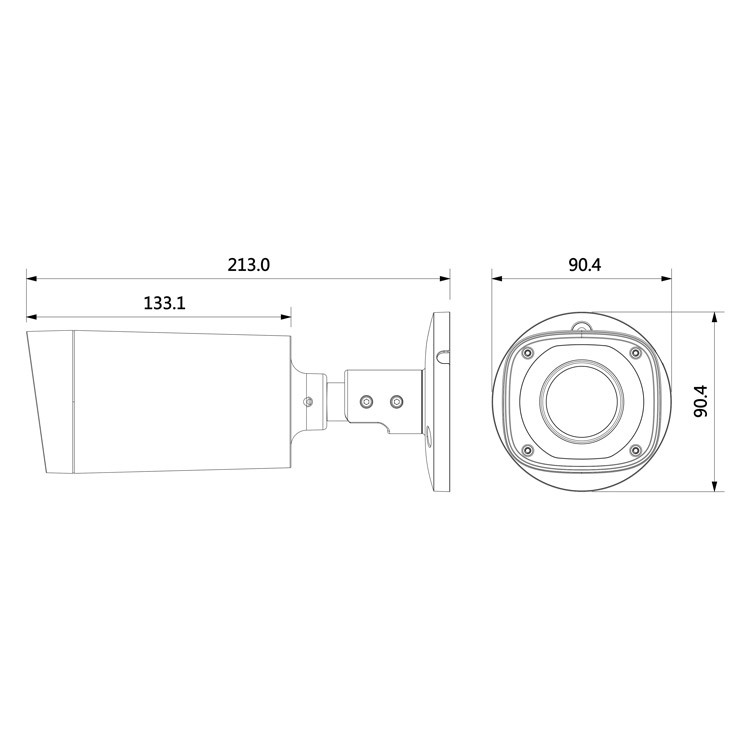

213 x 72 x 80mm
Net Weight
0.685kg
Other
DORI (Detect)
Wide: 68m/ Tele: 193m
DORI (Identify)
Wide: 7m/ Tele: 19m
DORI (Observe)
Wide: 27m/ Tele: 77m
DORI (Recognise)
Wide: 14m/ Tele: 39m
Max. Infrared Range
60m
Ultra Low Light
No
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
300 mm
Height
130 mm
Depth
150 mm
Weight
0.90 kg
