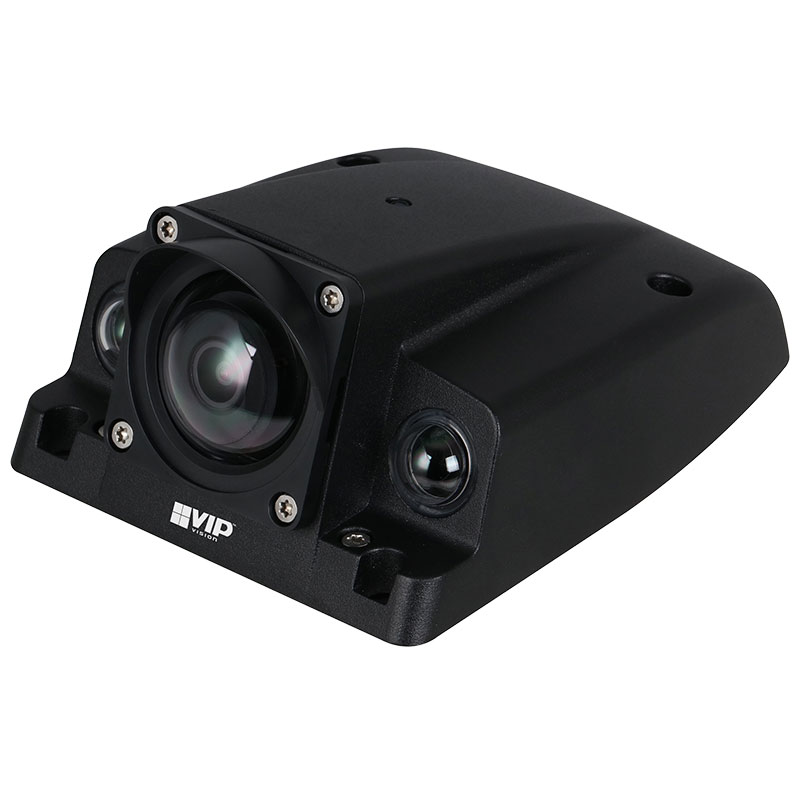

Mobile Series 4.0MP Heavy Duty Vehicle Camera

Brand logo
SKU VSIP4MPEIRAT
Brand logo

Mobile Series 4.0MP Heavy Duty Vehicle Camera

SKU VSIP4MPEIRAT

Designed for surveillance in buses, trains and other large vehicles, the VSIP4MPEIRAT delivers high quality footage with true WDR and back/highlight compensation, all in a highly durable casing resilient against water, dust and vandalism.

Camera features:
• Streams up to 4.0MP (2688 x 1520) at 25fps
• 2.8mm F2.0 fixed lens with 104° viewing angle
• Smart infrared illumination up to 30m range
• Back/highlight compensation & true WDR (120dB)
• H.265 encoding for efficient storage & streaming
• 3D digital noise reduction & auto white balance
• MicroSD slot up to 128GB & Power over Ethernet
• Shock resistant housing withstands heavy vibration
• IP6K9K rated to withstand high pressure / steam jet spray and prevents dust and dirt egress

Suggested Products

Suggested product image
Professional 4 Channel Mobile NVR with GPS, 4G & WiFi
MNVR-GPS4GW
Suggested product image
Professional 8 Channel Mobile NVR with GPS, 4G & WiFi
MNVR-GPS8GW

Links and Downloads

VIP Vision VSIP4MPEIRAT Datasheet (PDF) 0.51 MB
Network Camera Web 3.0 Operation Manual V2.0.5 8.46 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/3" 4.0 Megapixel Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
512MB / 32MB
Ultra Low Light Colour
No
Min Illumination
0.3 Lux at F2.0 (Colour) / 0 Lux at F2.0 (IR On)
S/N Ratio
> 50dB
Infrared
Yes
Infrared System
2 x Infrared LED, 30m range, Auto/Manual on/off control
Lens
Lens Type
Fixed
Lens / Iris
2.8mm F2.0 Fixed Lens
Field of View
Horizontal: 104°, Vertical: 55°
Focus
Fixed
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
Observe (63px/m)
Recognise (125px/m)
Identify (250px/m)
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
720p (1 ~ 25fps)
Video Compression
H.265 / H.264
Bit Rate
H.265: 14 ~ 9984Kbps / H.264: 24 ~ 10240Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (IRC) / Colour / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
N/A
IVS
IVS
Yes
Intelligent Functions
Face Detection, Tripwire, Intrusion, Abandoned/Missing Object, Motion Detection (4 Zone), Region of Interest (4 Zone), Privacy Masking (4 Zone)
Network
Ethernet
RJ45 (10/100 Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
Interface
Video Interface
N/A
Audio Interface
1 Input / 1 Output
Alarm Interface
1 Input / 1 Output
RS485
N/A
Edge Storage
MicroSD Card (up to 128GB) / NAS / Local PC
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
<6.5W
Operating Conditions
-40° ~ +70° C / Less than 95% RH
Ingress Protection
IP6K9K
Weather Resistance
Yes
Vandal Resistance
IK10
Series
Mobile Series
Camera Type
Vehicle
Housing
Metal
Pan/Tilt/Rotation
N/A
Tri-Axis Mounting
No
ePoE
No
Dimensions

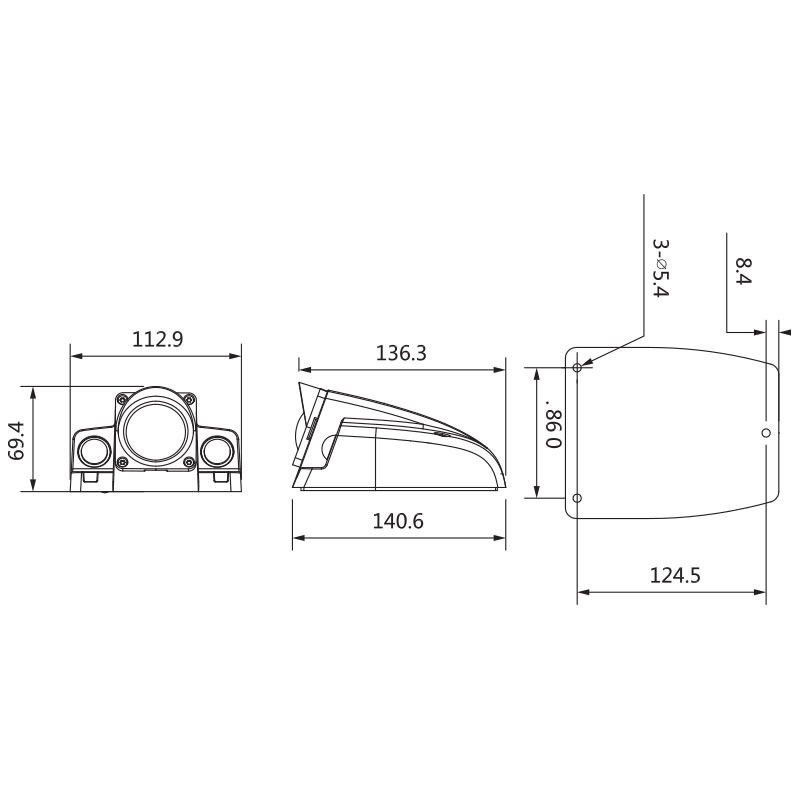

141 x 113 x 69mm
Net Weight
0.59kg
Other
DORI Distance
Distance: 56m / Observe: 22m / Recognise: 11m / Identify: 6m
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
160 mm
Height
235 mm
Depth
128 mm
Weight
0.82 kg
