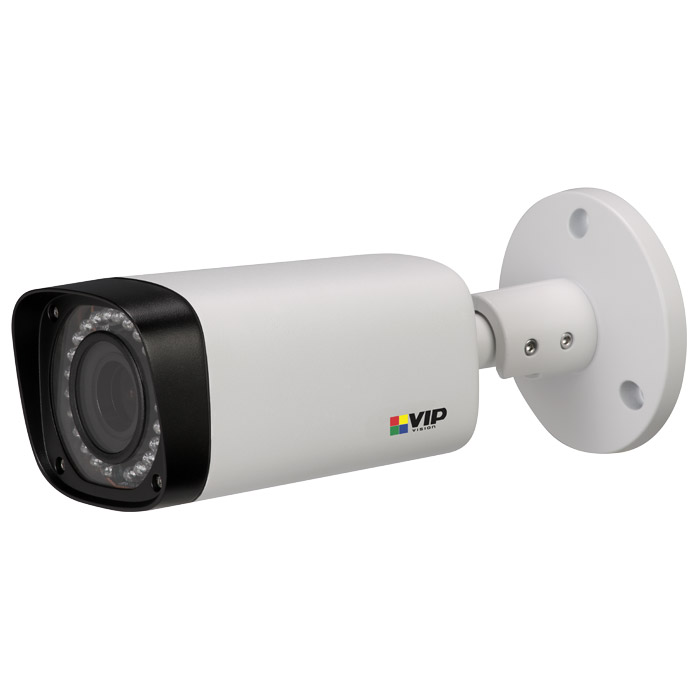

Professional Series 3.0MP Infrared Motorised Bullet

Brand logo
SKU VSIP3MPFBIRM2.8-12
Brand logo

Professional Series 3.0MP Infrared Motorised Bullet

SKU VSIP3MPFBIRM2.8-12

Available by special order only. Please contact us for lead times.

Megapixel resolution your customers demand, with the convenience of easy installation you desire. Achieve more for less with the VIP Vision motorised varifocal surveillance range.

Camera features:
• Stream up to 3.0 megapixel (2304 x 1296) at 20fps
• 2.8 ~ 12mm motorised lens with 92 ~ 28° viewing angles
• Day/night (auto ICR) with 30m maximum infrared range
• Backlight/highlight compensation with digital WDR
• 3D digital noise reduction and auto white balance
• MicroSD card slot for at-the-edge recording, up to 128GB
• Power via 12VDC or Power over Ethernet (802.3af)
• IP66 rated housing for external use
• ONVIF, PSIA and CGI compliance

Suggested Products

Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA122
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA135
Suggested product image
Triple Clamp Pole Mount Camera Bracket
VSBKTA150
Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152

Links and Downloads

VSIP3MPFBIRM2.8-12 Product Brochure (PDF) 0.69 MB
Bracket Compatibility Guide 06-2017 (PDF) 0.83 MB
3.0MP Quick Install Guide (PDF) 1.39 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Alarm Interface
N/A
Audio Interface
N/A
Bit Rate
H.264: 40K ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Camera Type
Bullet
Day/Night
Auto (ICR) / Colour / B&W
Dimensions
72 x 80 x 213mm
DORI (Detect)
Wide: 62m / Tele: 175m
DORI (Identify)
Wide: 6m/ Tele: 18m
DORI (Observe)
Wide: 25m / Tele: 70m
DORI (Recognise)
Wide: 12m/ Tele: 35m
Edge Storage
MicroSD slot up to 128GB
Effective Pixels
2048 (H) x 1536 (V)
Ethernet
RJ-45 (10/100 Base-T)
Field of View
92° (wide) ~ 28° (tele)
Focus
Auto Focus
Frame Rate (Main)
3.0MP (1 ~ 20fps) / 1080p and lower (1 ~ 25fps)
Frame Rate (Sub)
D1 and lower (1 ~ 25fps)
Frame Rate (Third)
N/A
Gain Control
Auto / Manual
Housing
Metal
Image Sensor
1/3” 3.0 Megapixel Progressive Scan Aptina CMOS
Infrared System
30m range
Ingress Protection
IP66
Intelligent Functions
N/A
Interoperability
ONVIF, PSIA, CGI
IVS
No
Lens / Iris
2.8 ~ 12mm F1.4 Motorised Lens with Fixed Iris
Lens Type
Motorised Varifocal
Lighting Compensation
BLC / HLC / DWDR
Max. Infrared Range
30m
Max. Resolution
3.0 Megapixel
Max. User Access
10 Users / 20 Users
Min Illumination
0.01 Lux at F1.4 (Colour) / 0 Lux at F1.4 (IR on)
Net Weight
0.65kg
Noise Reduction
3D DNR
Operating Conditions
-30° to 60°C / RH95% (max)
Pan/Tilt/Rotation
N/A
Picture Control
N/A
Power Consumption
< 8.5W
Power Supply
12VDC / PoE (802.3af)
Resolution
Configurable from 3.0MP (2048 x 1536) to CIF (352 x 288)
S/N Ratio
> 50dB
Series
Professional Series
Streaming Method
Unicast / Multicast
Tri-Axis Mounting
No
Ultra Low Light
No
Vandal Resistance
N/A
Video Compression
H.264 / H.264H / MJPEG
Video Interface
N/A
White Balance
Auto / Manual
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
300 mm
Height
130 mm
Depth
150 mm
Weight
0.90 kg
