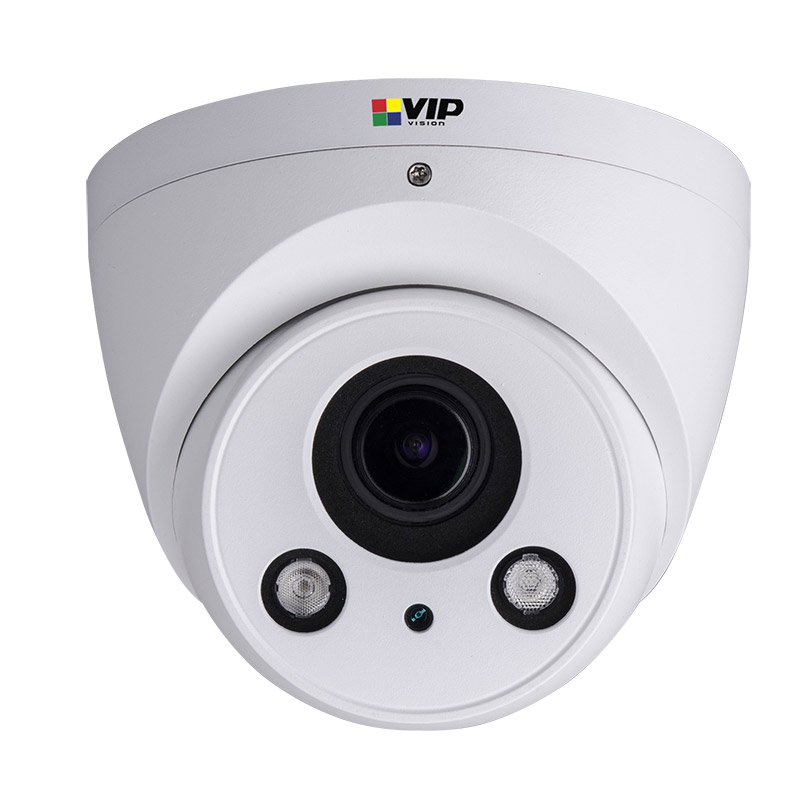

Professional Series 2.0MP Ultra Low Light Motorised Dome

Brand logo
SKU VSIP2MPVDIRME
Brand logo

Professional Series 2.0MP Ultra Low Light Motorised Dome

SKU VSIP2MPVDIRME

Stock may be limited. Please contact us for availability or for an alternative item.

With a flat glass plane between lens and subject, this dome delivers superb clarity images, day or night. Enjoy crystal clear images with the convenience of a motorised varifocal lens for remote zoom adjustments.

Product features:
• Stream up to 2.0MP (1920 x 1080) at 25fps
• 2.7 ~ 13.5mm motorised lens with 109 ~ 29° viewing angles
• Great low light colour performance
• H.265 encoding for efficient storage & streaming
• 50m infrared range; true day/night (auto ICR)
• MicroSD slot for recording at the edge up to 128GB
• Back/highlight compensation & true WDR (120dB)
• 3D digital noise reduction & auto white balance
• IP67 weather rated full metal dome housing

Links and Downloads

Bracket Compatibility Guide 06-2017 (PDF) 0.83 MB
VIP Vision VDIRME / VDIRMG Turret Dome Quick Install Guide (PDF) 0.59 MB
Network Camera Web 3.0 Operation Manual V2.0.5 8.46 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Alarm Interface
N/A
Audio Interface
N/A
Bit Rate
H.265: 12 ~ 6400Kbps / H.264: 32 ~ 10240Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Camera Type
Dome
Day/Night Auto
(ICR) / Color / B&W
Dimensions
Ø122mm x 105mm
Edge Storage
MicroSD Card (up to 128GB) / NAS / Local PC
Effective Pixels
1920 (H) x 1080 (V)
Ethernet
RJ-45 (10/100 Base-T)
Field of View
Horizontal: 109°~29°, Vertical: 57°~16° (5x Optical Zoom)
Focus
Auto Focus / 0.2m Min. Focus Distance
Frame Rate (Main)
1080p (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
N/A
Gain Control
Auto / Manual
Housing
Metal
Image Sensor
1/2.8’’ 2.0MP Progressive Scan CMOS
Infrared System
2 x Infrared LED, 50m range, Auto/manual on/off control
Ingress Protection
IP67
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Interoperability
ONVIF / PSIA / CGI
IVS
No
Lens / Iris
2.7 ~ 13.5mm F1.4 Motorised Varifocal Lens with Fixed Iris
Lens Type
Motorised Varifocal
Lighting Compensation
BLC / HLC / WDR (120dB)
Max. Resolution
2.0 Megapixel
Max. User Access
10 Users / 20 Users
Maximum Infrared Range
50m
Min Illumination
0.006 Lux/F1.4 (Color), 0 Lux/F1.4 (IR on)
Net Weight
0.60kg
Noise Reduction
3D DNR
Operating Conditions
-30° ~ +60° C / Less than 95% RH
Pan/Tilt/Rotation
Pan: 0° ~ 360°; Tilt: 0° ~ 78° ; Rotation: 0° ~ 360°
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)
Power Consumption
<11.5W
Power Supply
12VDC / PoE (802.3af) (Class 0)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
RAM / ROM
256MB / 32MB
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
RS485
N/A
S/N Ratio
> 45dB
Series
Professional Series
Streaming Method
Unicast / Multicast
Tri-Axis Mounting
No
Ultra Low Light
Yes
Vandal Resistance
N/A
Video Compression
H.265 / H.264
Video Interface
N/A
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
0 mm
Height
0 mm
Depth
0 mm
Weight
0.00 kg
