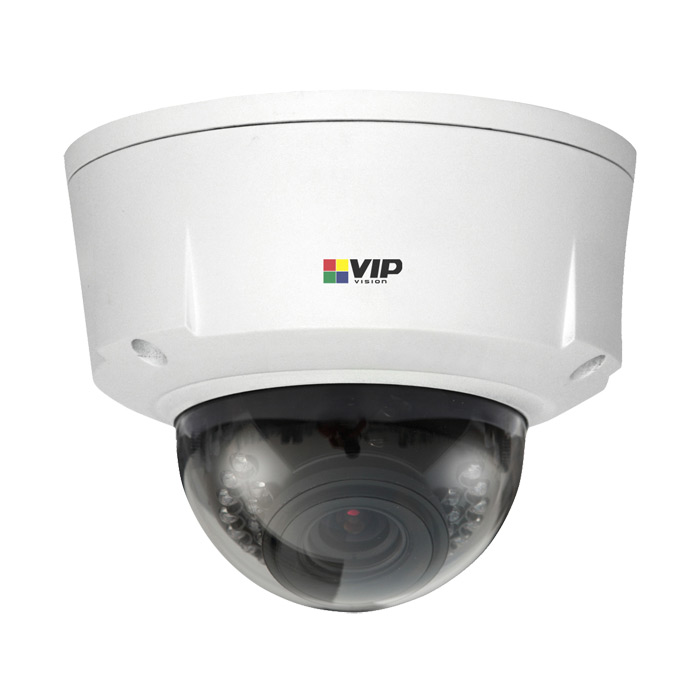

Ultimate Series 2.0MP Ultra Low Light Infrared Motorised Dome

Brand logo
SKU VSIP2MPVDIRL
Brand logo

Ultimate Series 2.0MP Ultra Low Light Infrared Motorised Dome

SKU VSIP2MPVDIRL

The ultimate in low-light and wide dynamic range. This camera’s large sensor and WDR provide impressive detail retention in colour in even the most challenging of lighting conditions.

Camera features:
• Stream up to 2.0 megapixel (1920 x 1080) at 50fps
• Excellent low light colour performance 0.005 Lux at F/1.65
• 4 ~ 8mm motorised lens with 105 ~ 56° viewing angles
• Electronic image stabilisation, defog and 4 area privacy masking
• Day/night (auto ICR) with 30m maximum infrared range
• Wide dynamic range (120db) with back/highlight compensation
• MicroSD card slot for at-the-edge recording, up to 64GB
• Supports triple stream and smart detection technologies
• Audio and alarm interface input/output; BNC video output
• ONVIF, PSIA and CGI compliance

Suggested Products

Suggested product image
Adapter for Ceiling & Wall Mount Brackets
VSBKTA100
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA132
Suggested product image
Triple Clamp Pole Mount Camera Bracket
VSBKTA150
Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152
Suggested product image
Ceiling Mount Camera Bracket
VSBKTB300C
Suggested product image
Right Angle Wall Mount Camera Bracket
VSBKTB302S

Links and Downloads

VSIP2MPVDIRL Product Brochure (PDF) 0.56 MB
Network Camera Web 3.0 Operation Manual V2.0.5 8.46 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/1.9” 2.0 Megapixel Progressive Scan CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1920 (H) x 1080 (V)
RAM / ROM
Ultra Low Light Colour
Yes
Min Illumination
0.005 Lux at F1.65 (Colour) / 0 Lux at F1.65 (IR on)
S/N Ratio
> 50dB
Infrared
Yes
Infrared System
30m range
Lens
Lens Type
Motorised Varifocal
Lens / Iris
4 ~ 8mm F1.65 Motorised Lens with Auto Iris (DC)
Field of View
105° (wide) ~ 56° (tele)
Focus
Auto Focus
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
Observe (63px/m)
Recognise (125px/m)
Identify (250px/m)
Video
Resolution
Configurable from 2.0MP (1920 x 1080) to CIF (352 x 288)
Frame Rate (Main)
1080p and lower (1 ~ 50fps)
Frame Rate (Sub)
D1 and lower (1 ~ 25fps)
Frame Rate (Third)
1080p and lower (1 ~ 25fps)
Video Compression
H.264 / MJPEG
Bit Rate
H.264: 32K ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Colour / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
White Balance
Auto / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
N/A
IVS
IVS
No
Intelligent Functions
Scene Change / Face Detection
Network
Ethernet
RJ-45 (10/100 Base-T)
Protocol
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
Interface
Video Interface
1 channel, BNC (1.0Vp-p, 75 ohm)
Audio Interface
Built-in Microphone / Compression: G.711a / G.711u
Alarm Interface
1 ch. input / 1 ch. output
RS485
N/A
Edge Storage
MicroSD slot up to 128GB
Interoperability
ONVIF, PSIA, CGI
Environmental
Power Supply
12VDC / 24VAC / PoE (802.3af)
Power Consumption
< 12W
Operating Conditions
-30° to 60°C / RH90% (max)
Ingress Protection
IP66
Weather Resistance
Yes
Vandal Resistance
IK10
Series
Professional Series
Camera Type
Dome
Housing
Metal, Polycarbonate
Pan/Tilt/Rotation
N/A
Tri-Axis Mounting
Yes
ePoE
No
Dimensions
Ø151 x 119mm
Net Weight
1.25kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
194 mm
Height
192 mm
Depth
205 mm
Weight
1.50 kg
