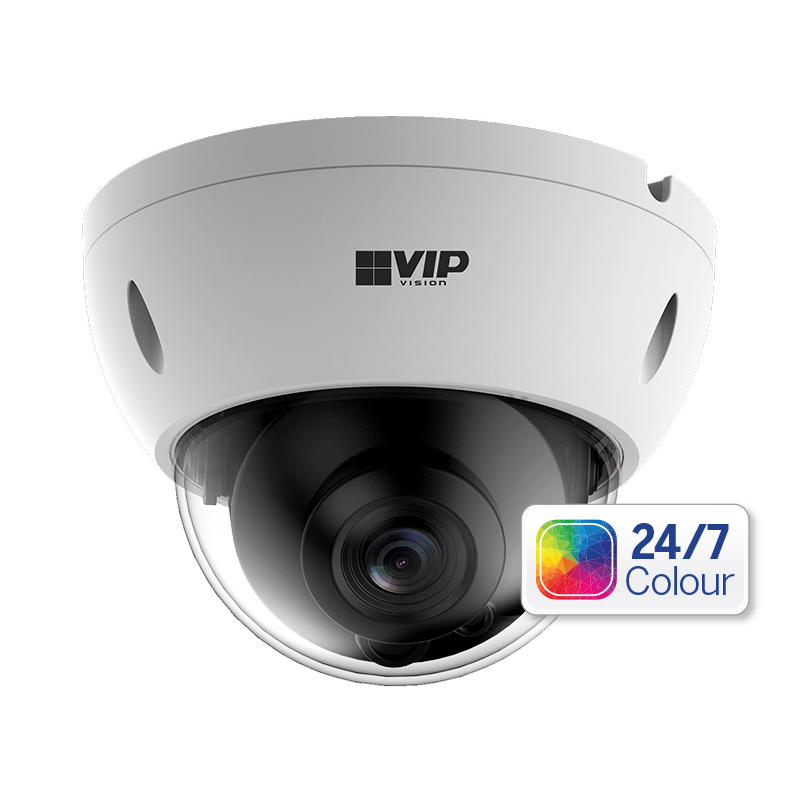

VSIP2MPVDFC: Professional Series 2.0MP 24/7 Colour Fixed Dome

Specifications

Camera

Image Sensor

1/2.8" 2.0MP Progressive Scan CMOS

Max. Resolution

2.0 Megapixel

Effective Pixels

1920 (H) x 1080 (V)

RAM / ROM

256MB / 32MB

Ultra Low Light Colour

Yes

Min Illumination

0.001 Lux/F1.0 (Color)

S/N Ratio

> 50dB

Infrared

Infrared System

N/A

Lens

Lens Type

Fixed

Lens / Iris

3.6mm F1.0 Fixed Lens

Field of View

Horizontal: 87°, Vertical: 54°

Focus

Fixed

DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Detect (25px/m)

53m

Observe (63px/m)

21m

Recognise (125px/m)

11m

Identify (250px/m)

Video

Resolution

1080p (1920 x 1080) to CIF (352 x 288)

Frame Rate (Main)

1080p (1 ~ 25fps)

Frame Rate (Sub)

D1 (1 ~ 25fps)

Frame Rate (Third)

1080p (1 ~ 25fps)

Video Compression

H.265+ / H.265 / H.264+ / H.264

Bit Rate

H.265: 14 ~ 9984Kbps / H.264: 24 ~ 10240Kbps

Bit Rate Control

Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night

Colour (Default) / Auto (Electronic) / B&W

Lighting Compensation

BLC / HLC / WDR (120dB)

Smart Scene Adaptive (SSA)

White Balance

Auto / Natural / Street Lamp / Outdoor / Manual

Gain Control

Auto / Manual

Noise Reduction

3D DNR

Picture Control

Mirror / Flip (0°, 90°, 180°, 270°)

IVS

Yes

Intelligent Functions

Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones)

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP; HTTPS; TCP; ARP; RTSP; RTP; RTCP; UDP; PPPOE; IEEE802.1X; SMTP; SNMP; FTP; DHCP; DNS; DDNS; PPPoE; IPV4/V6; QoS; UPnP; NTP; Bonjour; IEEE 802.1X; Multicast; ICMP; IGMP; TLS; SSH; NFS

Streaming Method

Unicast / Multicast

Max. User Access

10 Users / 20 Users

RTMP Support

Interface

Video Interface

N/A

Audio Interface

1 Input, 1 Output / Compression: G.711a, G.711Mu, AAC, G.726

Alarm Interface

1 Input (5mA 5VDC) / 1 Output (300mA 12VDC)

RS485

N/A

Edge Storage

MicroSD Card (up to 128GB) / NAS / Local PC

Interoperability

ONVIF / PSIA / CGI

Environmental

Power Supply

12VDC / PoE (802.3af) (Class 0)

Power Consumption

<3.7W

Operating Conditions

-30° ~ +60° C / Less than 95% RH

Ingress Protection

IP67

Weather Resistance

Yes

Vandal Resistance

IK10

Series

Professional Series

Camera Type

Dome

Housing

Metal

Pan/Tilt/Rotation

Pan: 0° ~360 °; Tilt: 0° ~78°; Rotation: 0° ~360°

Tri-Axis Mounting

Yes

ePoE

Yes

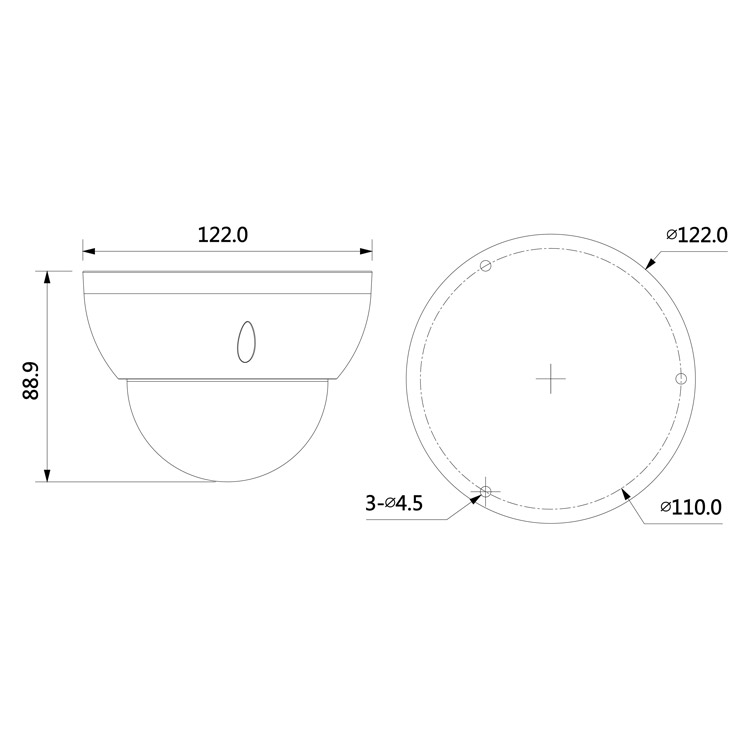

Dimensions

Ø122mm x 89mm

Net Weight

0.58kg

Warranty (Years)
