Camera
Image Sensor
1/2.8” 2.0 Megapixel Progressive Scan Exmor CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1944 (H) x 1092 (V)
RAM / ROM
512MB / 32MB
Ultra Low Light Colour
No
Min Illumination
0.05 Lux at F1.6 (Colour) / 0.005 Lux at F1.6 (B&W)
S/N Ratio
> 55dB
Infrared
Yes
Infrared System
500m range
Lens
Lens Type
Motorised Varifocal
Lens / Iris
7.9 ~ 316mm F1.6 ~ F6.1 Motorised Lens
Field of View
41.5° (wide) ~ 1.1° (tele)
Focus
Auto/Manual
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
3571m
Observe (63px/m)
1429m
Recognise (125px/m)
714m
Identify (250px/m)
257m
Video
Resolution
Configurable from 2.0MP (1920 x 1080) to CIF (352 x 288)
Frame Rate (Main)
1080p and lower (1 ~ 25fps) / 720p (1 ~ 50fps)
Frame Rate (Sub)
D1 and lower (1 ~ 25fps)
Frame Rate (Third)
720p and lower (1 ~ 25fps)
Video Compression
H.264 / MJPEG
Bit Rate
H.264: 56K ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Colour / B&W
Lighting Compensation
BLC / HLC / DWDR
Smart Scene Adaptive (SSA)
White Balance
Auto / Manual / ATW / Indoor / Outdoor
Gain Control
Auto / Manual
Noise Reduction
2D / 3D Ultra DNR
Picture Control
Flip 180°
IVS
IVS
Yes
Intelligent Functions
Auto Tracking (Single, Multiple & Panorama Scenes) / Warning Zone / Perimeter Protection / Loitering Detection / Illegal Parking / Fast Object Detection
Network
Ethernet
RJ-45 (10/100 Base-T)
Protocol
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
No
Interface
Video Interface
1 channel, BNC (1.0Vp-p, 75 ohm)
Audio Interface
Built-in Microphone / Compression: G.711a / G.711u / PCM
Alarm Interface
7 ch. input / 2 ch. output
RS485
N/A
Edge Storage
MicroSD slot up to 64GB
Interoperability
ONVIF, PSIA, CGI
Environmental
Power Supply
24VAC / Hi-PoE
Power Consumption
20W / 43W (IR & Heater on)
Operating Conditions
-40°C to 70°C / RH90% (max)
Ingress Protection
IP67
Weather Resistance
Yes
Vandal Resistance
N/A
Series
Ultimate Series
Camera Type

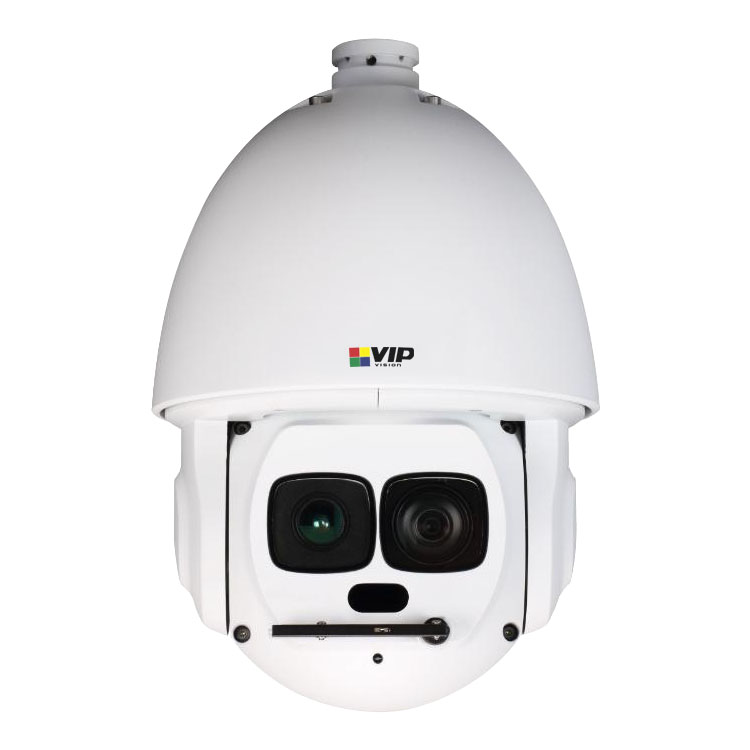

PTZ Dome
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~ 360 ° ; Tilt: -10° ~ 90° ; Rotation: 0° ~ 360°
Tri-Axis Mounting
No
ePoE
No

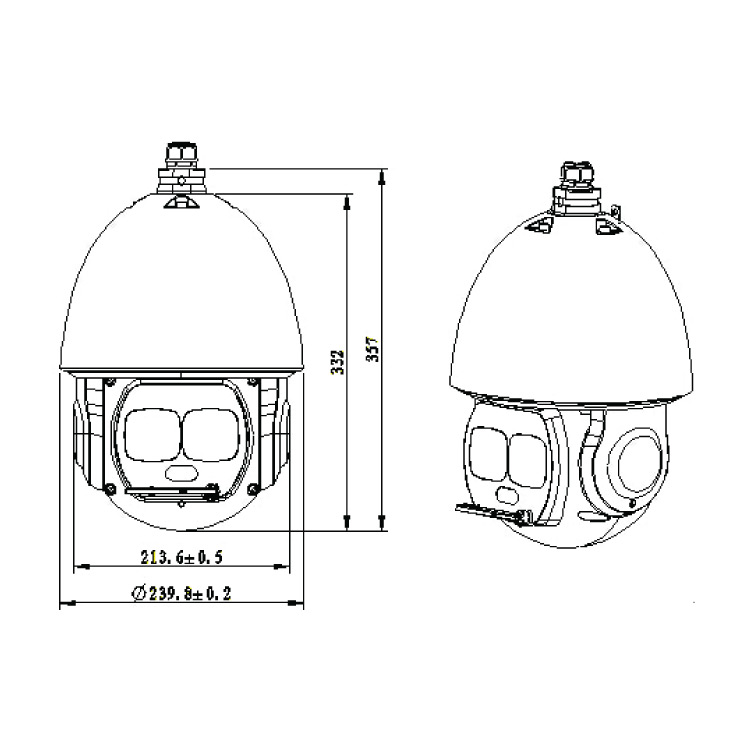

Dimensions
Ø240 x 357mm
Net Weight
6.75kg
Other
Auto Tracking
Support
Pan / Tilt Range
Pan: 0 ~ 360° (endless) / Tilt: -10 ~ 90° / Auto-flip 180°
PTZ Speed
Preset: Pan: 240°/s; Tilt: 200°/s Manual: Pan: 240°/s; Tilt: 200°/s
Start-up Action
Auto-restore to previous PTZ/lens status
Warranty (Years)
4
