Mobile Series 2.0MP IP Mobile PTZ Camera

Brand logo
SKU VSIP2MPPTZIRM
Brand logo

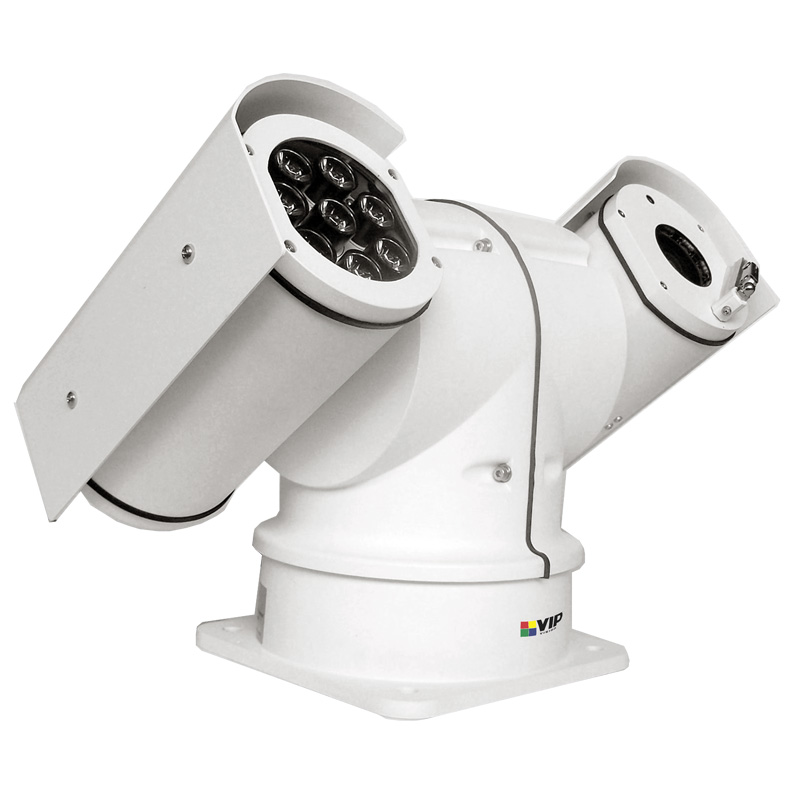

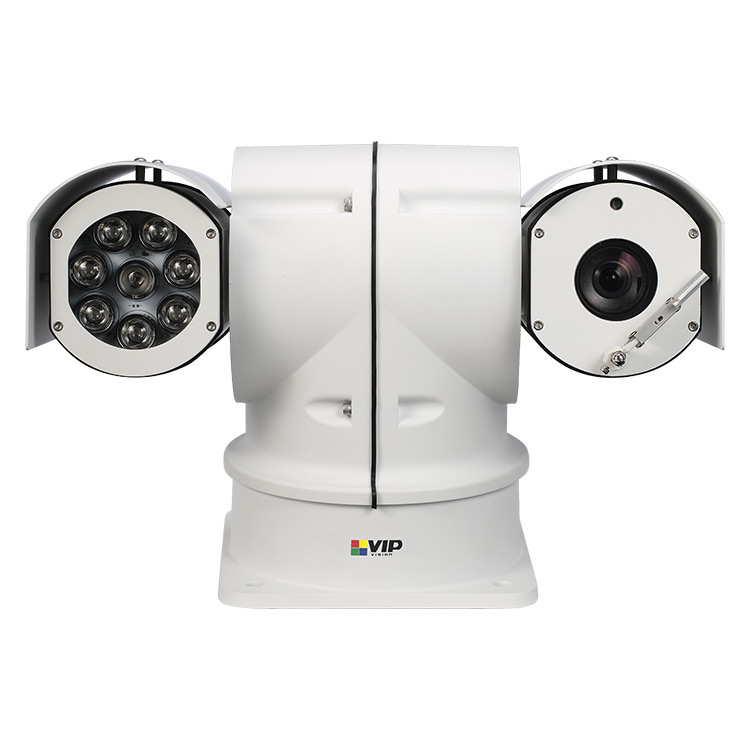

Mobile Series 2.0MP IP Mobile PTZ Camera

SKU VSIP2MPPTZIRM

Stock may be limited. Please contact us for availability or for an alternative item.

Purpose built to be integrated into large vehicles such as earth moving equipment, the mobility of the VIP Vision Mobile PTZ offers a truly versatile vehicle surveillance experience.

Camera features:
• Stream up to 2.0 megapixel (1920 x 1080) at 25fps
• 5.5 ~ 110mm 20x optical zoom lens with 51 ~ 2.6° viewing angles
• Versatile power supply: compatible with 8 ~ 36VDC vehicles
• Features up to 150m maximum infrared distance & lens wiper
• Day/night (auto ICR) with back/highlight compensation
• Durable, IP66 rated all-metal aluminium alloy construction
• Endless 360° panning with ultra-versatile -90 ~ 90° tilt adjust
• Configure PTZ patterns, tours and auto-scanning
• 6000V anti-lightning surge protection
• ONVIF profile S compliant

Suggested Products

Suggested product image
Professional 4 Channel Mobile NVR with GPS
MNVR-GPS
Suggested product image
VIP Vision IP PTZ Control Keyboard
VSIPPTZKBV2
Suggested product image
NetComm Industrial 4G Wifi Router
VSWAN4G

Links and Downloads

VSIP2MPPTZIRM Product Brochure (PDF) 0.44 MB
VSIP2MPPTZIRM Sample Footage (Stationary) 66.71 MB
VSIP2MPPTZIRM Sample Footage (Driving) 174.04 MB
Bracket Compatibility Guide - 09-2015 (PDF) 0.51 MB
General Surveillance API Documentation v2.10 (PDF) 12.94 MB
Network PTZ Camera Web 3.0 User Manual V2.0.031 10.13 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/2.8” 2.0 Megapixel Progressive Scan Exmor CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1944 (H) x 1092 (V)
RAM / ROM
Ultra Low Light Colour
No
Min Illumination
0.05 Lux at F1.6 (Colour) / 0.005 Lux at F1.6 (B&W)
S/N Ratio
> 50dB
Infrared
Yes
Infrared System
150m range
Lens
Lens Type
Motorised Varifocal
Lens / Iris
5.5 ~ 110mm F1.6 ~ F3.5 Motorised Lens
Field of View
51° (wide) ~ 2.6° (tele)
Focus
Auto/Manual
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
Observe (63px/m)
Recognise (125px/m)
Identify (250px/m)
Video
Resolution
Configurable from 2.0MP (1920 x 1080) to CIF (352 x 288)
Frame Rate (Main)
1080p and lower (1 ~ 25fps)
Frame Rate (Sub)
D1 and lower (1 ~ 25fps)
Frame Rate (Third)
N/A
Video Compression
H.264 / MJPEG
Bit Rate
H.264: 56K ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Colour / B&W
Lighting Compensation
BLC / HLC / DWDR
Smart Scene Adaptive (SSA)
White Balance
Auto / Manual / ATW / Indoor / Outdoor
Gain Control
Auto / Manual
Noise Reduction
2D / 3D Digital Noise Reduction
Picture Control
N/A
IVS
IVS
No
Intelligent Functions
N/A
Network
Ethernet
RJ-45 (10/100 Base-T)
Protocol
Streaming Method
Max. User Access
10 Users / 20 Users
RTMP Support
Interface
Video Interface
N/A
Audio Interface
N/A
Alarm Interface
N/A
RS485
Edge Storage
N/A
Interoperability
ONVIF
Environmental
Power Supply
8 ~ 36VDC
Power Consumption
< 60W
Operating Conditions
-30°C to 65°C / RH90% (max)
Ingress Protection
IP66
Weather Resistance
Yes
Vandal Resistance
N/A
Series
Mobile Series
Camera Type
PTZ Dome
Housing
Metal
Pan/Tilt/Rotation
Pan: 0 ~ 360° (endless) / Tilt: -90 ~ 90°
Tri-Axis Mounting
No
ePoE

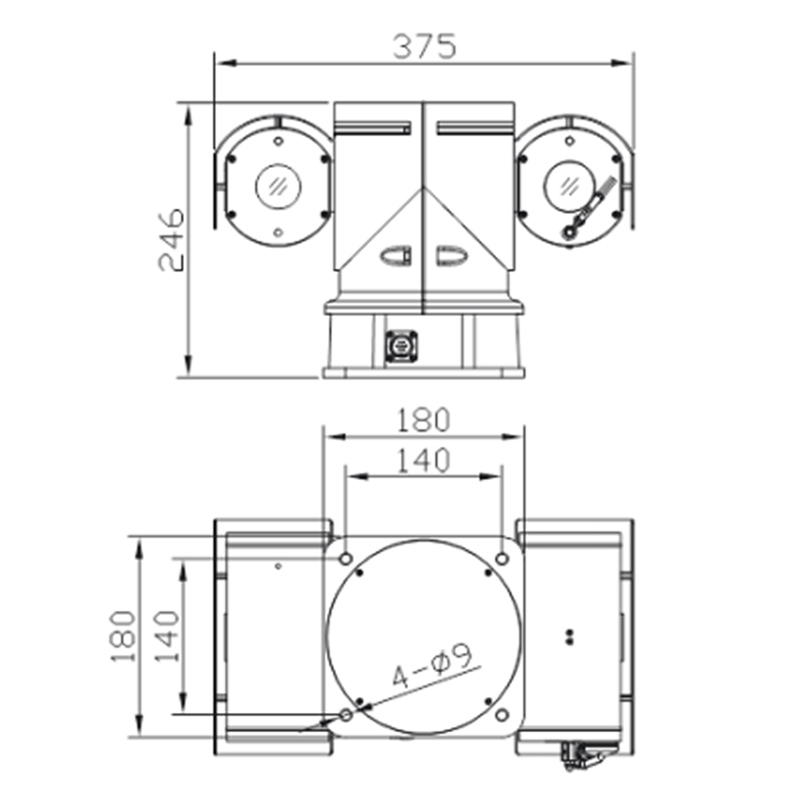

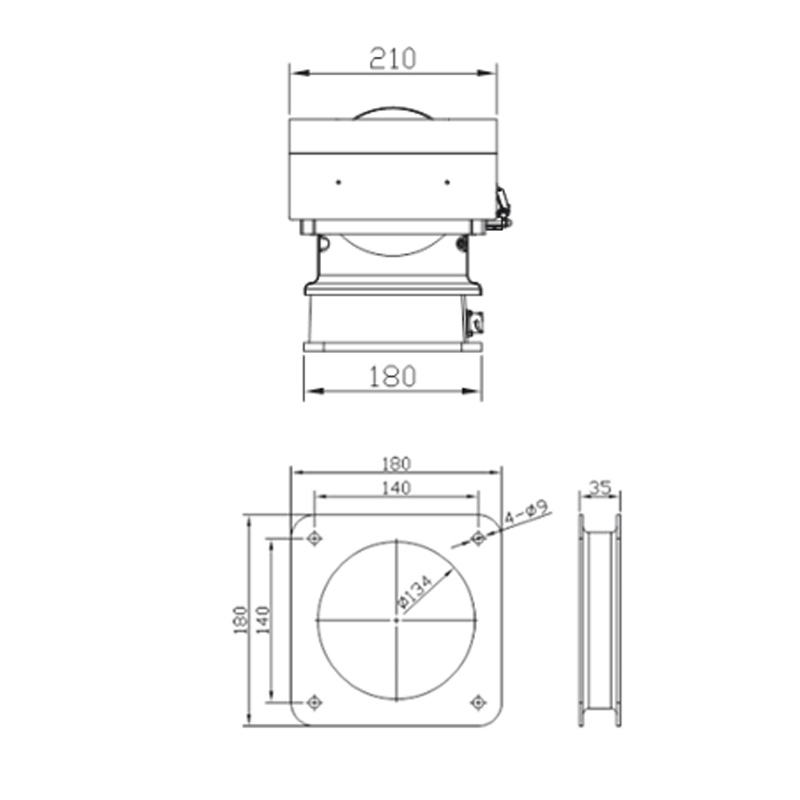

Dimensions
375 x 246 x 210mm
Net Weight
8.50kg
Other
Auto Tracking
N/A
Pan / Tilt Range
Pan: 0 ~ 360° (endless) / Tilt: -90 ~ 90°
PTZ Speed
Preset: Pan: 60°/s; Tilt: 30°/s / Manual: Pan: 60°/s; Tilt: 30°/s
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
305 mm
Height
310 mm
Depth
505 mm
Weight
10.30 kg
