2.0 Megapixel Infrared 30x Zoom PTZ Dome

Brand logo
SKU VSIP2MPPTZDV2
Brand logo

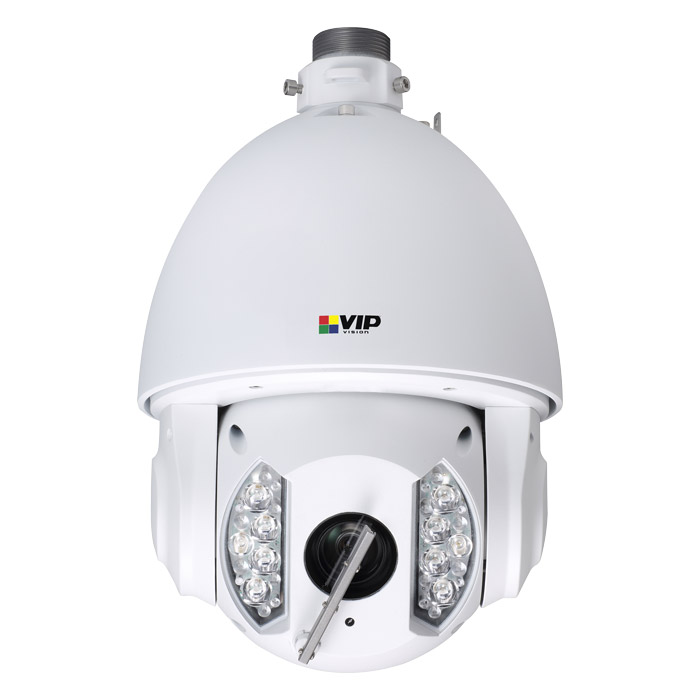

2.0 Megapixel Infrared 30x Zoom PTZ Dome

SKU VSIP2MPPTZDV2

Stock may be limited. Please contact us for availability or for an alternative item.

With intelligent auto-tracking, 30x optical zoom and up to 150m infrared, this PTZ dome camera performs well in a variety of environments and is ideal for long distance surveillance applications.

Camera Features:
• Stream up to 2.0 megapixel (1920 x 1080) at 25fps
• 4.3 ~ 129mm 30x optical zoom lens with 65 ~ 2.3° viewing angles
• Auto tracking with 8 intelligent video analytics functions
• Day/night (auto ICR) with back/highlight compensation
• MicroSD card slot for at-the-edge recording, up to 64GB
• Endless 360° panning with -10 ~ 90° tilt adjust; auto-flip 180°
• Configure PTZ patterns, tours, auto-panning/scanning
• Audio and alarm interface input/output
• Features lens wiper, ultra DNR and defog functionality
• IP66 weather resistant housing for external use

Suggested Products

Suggested product image
Adapter/Junction Box for PTZ Dome Cameras
VSBKTA140
Suggested product image
Triple Clamp Pole Mount Camera Bracket
VSBKTA150
Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image
Ceiling Mount Camera Bracket
VSBKTB300C

Links and Downloads

VSIP2MPPTZDV2 Product Brochure (PDF) 0.50 MB
Bracket Compatibility Guide - 09-2015 (PDF) 0.51 MB
General Surveillance API Documentation v2.10 (PDF) 12.94 MB
Network PTZ Camera Web 3.0 User Manual V2.0.031 10.13 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Alarm Interface
7 ch. input / 2 ch. output
Angle of View
65.1° (wide) ~ 2.34° (tele)
Audio Compression
G.711a / G.711u / PCM
Audio Input
1 ch. Input / 1ch. Output
Backlight Compensation
BLC / HLC / DWDR
Bit Rate
H.264: 56K ~ 8192Kbps
Camera Style
Weather Resistant Auto-Tracking PTZ Dome
Camera Type
PTZ Dome
Day/Night
Auto (ICR) / Colour / B&W
Dimensions
Ø252 x 385mm
Effective Pixels
1944 (H) x 1092 (V)
Electronic Shutter
Auto / Manual (1/1 ~ 1/30000s)
Frame Rate - Main
1080p and lower (1 ~ 25fps)
Frame Rate - Sub
D1 and lower (1 ~ 25fps)
Frame Rate - Third
720p and lower (1 ~ 25fps)
Gain Control
Auto / Manual
Image Sensor
1/2.8” 2.0 Megapixel Progressive Scan Exmor CMOS
Ingress Protection
IP66
Lens
4.3 ~ 129mm F1.6 ~ F4.7 Motorised Lens
Maximum Infrared Range
150m
Memory Slot
MicroSD slot up to 64GB
Minimum Illumination
0.05 Lux at F1.6 (Colour) / 0.005 Lux at F1.6 (B&W)
Network Interface
RJ45 (10/100 Base-T)
Noise Reduction
2D / 3D Ultra Digital Noise Reduction
ONVIF Conformance
Profile S Compliant
Operating Environment
-40° to 70°C / RH90% (max)
Power Consumption
20W / 43W (IR & Heater on)
Power Input
24VAC/3A
PTZ Manual Speed
Pan: 0.1 ~ 200°/s; Tilt: 0.1 ~ 120°/s
PTZ Mode
5 Pattern, 8 Tour, Auto Pan, Auto Scan
PTZ Pan / Tilt Range
Pan: 0 ~ 360° (endless) / Tilt: -10 ~ 90° / Auto-flip 180°
PTZ Preset Speed
Pan: 240°/s; Tilt: 200°/s
PTZ Presets
Up to 80
PTZ Speed Setup
Human oriented speed & focal length adaptation
PTZ Start-up Action
Auto-restore to previous PTZ/lens status
Signal Noise Ratio
> 50dB
Smart Functions
Auto Tracking (Single, Multiple & Panorama Scenes) / Tripwire / Warning Zone / Perimeter Protection / Loitering Detection / Abandoned Object / Missing Object / Illegal Parking / Fast Object Detection
Vandal Resistant
N/A
Video Compression
H.264 / MJPEG
Video Output
1 channel, BNC (1.0Vp-p, 75 ohm)
Video Resolution
Configurable from 2.0MP (1920 x 1080) to CIF (352 x 288)
Weight
6.75kg
White Balance
Auto / ATW / Indoor / Outdoor / Manual
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
310 mm
Height
305 mm
Depth
505 mm
Weight
0.80 kg
