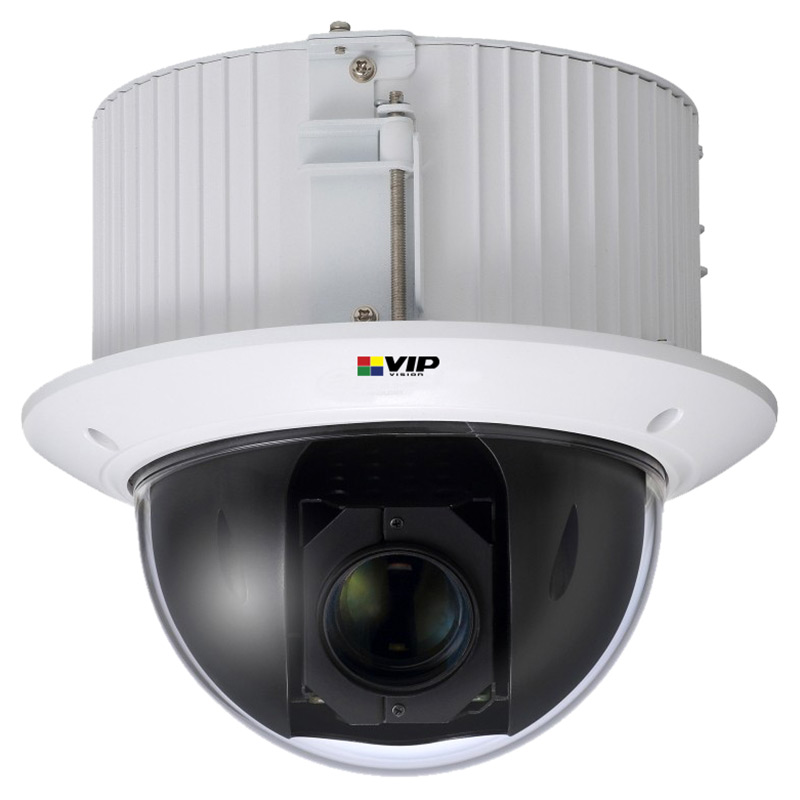

Professional Series 2.0MP IK10 IP Mini PTZ Dome (Recessed Mount)

Brand logo
SKU VSIP2MPPTZCV2
Brand logo

Professional Series 2.0MP IK10 IP Mini PTZ Dome (Recessed Mount)

SKU VSIP2MPPTZCV2

This recessed mount compact PTZ is ideal for in ceiling installation and offers professional features such as edge recording and alarm integration.

Camera features:
• Stream up to 2.0 megapixel (1920 x 1080) at 25fps
• 4.7 ~ 94.0mm 20x optical zoom lens, 56.1 ~ 3.1° viewing angles
• Day/night (auto ICR) with back/highlight compensation
• MicroSD card slot for at-the-edge recording, up to 128GB
• Endless 360° panning with 0° ~ 90° tilt adjust; auto-flip 180°
• Configure PTZ patterns, tours, auto-panning/scanning
• Audio and alarm interface input/output
• ONVIF, PSIA and CGI compliance
• IK10 vandal resistant housing for in ceiling use

Suggested Products

Suggested product image
VIP Vision IP PTZ Control Keyboard
VSIPPTZKBV2

Links and Downloads

VSIP2MPPTZCV2 Product Brochure (pdf) 0.29 MB
General Surveillance API Documentation v2.10 (PDF) 12.94 MB
Network PTZ Camera Web 3.0 User Manual V2.0.031 10.13 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Alarm Interface
2 ch. input / 1 ch. output
Audio Interface
1 ch. Input / 1ch. Output / Compression: G.711a / G.711u / PCM
Auto Tracking
Support
Bit Rate
H.264: 48K ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Camera Type
PTZ Dome
Day/Night
Auto (ICR) / Colour / B&W

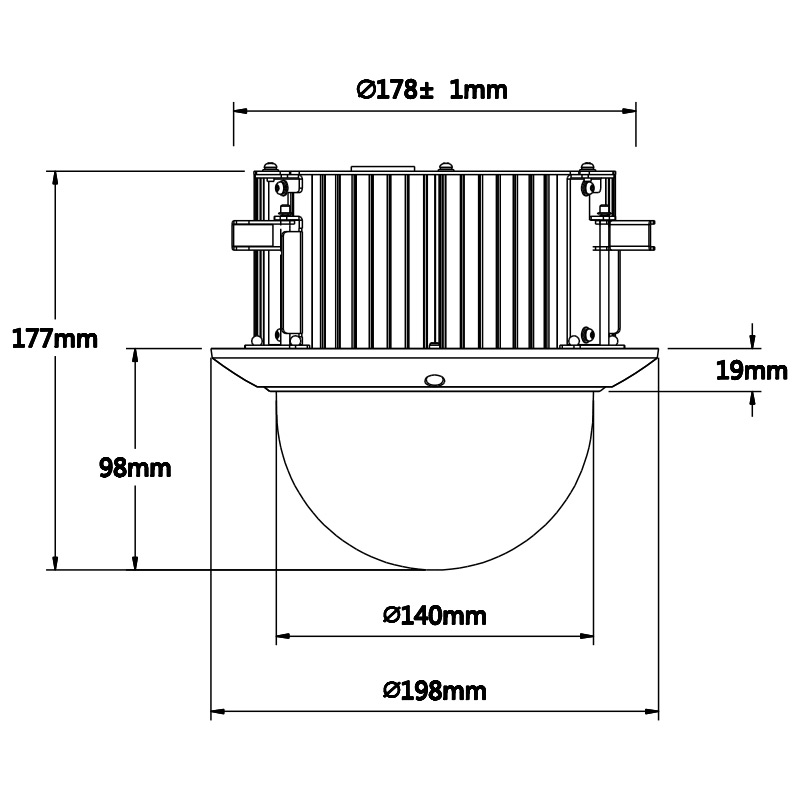

Dimensions
Ø198 x 177mm
Edge Storage
MicroSD slot up to 128GB
Effective Pixels
1920 (H) x 1080 (V)
Ethernet
RJ-45 (10/100 Base-T)
Field of View
56.1° (wide) ~ 3.1° (tele)
Focus
Auto/Manual / 1m Min. Focus Distance
Frame Rate (Main)
1080p and lower (1 ~ 25fps) / 720p (1 ~ 50fps)
Frame Rate (Sub)
D1 and lower (1 ~ 25fps)
Frame Rate (Third)
720p and lower (1 ~ 25fps)
Gain Control
Auto / Manual
Housing
Metal
Image Sensor
1/2.8” 2.0 Megapixel Progressive Scan CMOS
Infrared System
N/A
Ingress Protection
N/A
Intelligent Functions
Face Detection
Interoperability
ONVIF, PSIA, CGI
IVS
No
Lens / Iris
4.7 ~ 94.0mm F1.4 ~ F2.6 Motorised Lens
Lens Type
Motorised Varifocal
Lighting Compensation
BLC / HLC / DWDR
Max. Infrared Range
N/A
Max. Resolution
2.0 Megapixel
Max. User Access
10 Users / 20 Users
Min Illumination
0.05 Lux at F1.4 (Colour) / 0.005 Lux at F1.4 (B&W)
Modes / Presets
Up to 300 presets / 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Net Weight
2.2kg
Noise Reduction
2D / 3D Ultra DNR
Operating Conditions
-20° to 60°C / RH90% (max)
Pan / Tilt Range
Pan: 0° ~ 360° (endless) / Tilt: -2° ~ 90° / Auto-flip 180°
Pan/Tilt/Rotation
Pan: 0° ~ 360 ° ; Tilt: -2° ~ 90° ; Rotation: 0° ~ 360°
Picture Control
Flip 180°
Power Consumption
<13W
Power Supply
24VAC / PoE+ (802.3at)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
PTZ Speed
Preset: Pan: 500°/s; Tilt: 500°/s / Manual: Pan: 350°/s; Tilt: 250°/s
Resolution
Configurable from 2.0MP (1920 x 1080) to CIF (352 x 288)
S/N Ratio
> 55dB
Series
Professional Series
Start-up Action
Auto-restore to previous PTZ/lens status
Streaming Method
Unicast / Multicast
Tri-Axis Mounting
No
Ultra Low Light
No
Vandal Resistance
IK10
Video Compression
H.264 / MJPEG
Video Interface
N/A
White Balance
Auto / ATW / Indoor / Outdoor / Manual
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
258 mm
Height
255 mm
Depth
255 mm
Weight
2.60 kg
