Mobile Series 2.0MP Fixed Pinhole Camera

Brand logo
SKU VSIP2MPPH
Brand logo

Mobile Series 2.0MP Fixed Pinhole Camera

SKU VSIP2MPPH

This IP pinhole camera is designed for discreet/covert surveillance applications and is ideal for use at controlled ingress points, in shelf surveillance, in-vehicles, ATMs and more.

Camera features:
• Stream up to 2.0 megapixel (1920 x 1080) at 25fps
• 2.8mm fixed lens with 104° viewing angle
• Day/night (electronic), 3D noise reduction & auto white balance
• Backlight/highlight compensation
• Discreet pinhole profile: 11mm diameter / 5mm depth
• Smart detection support incl. face detection
• MicroSD card slot for at-the-edge recording, up to 128GB
• Power via 12VDC or Power over Ethernet (802.3af)
• ONVIF, PSIA and CGI compliance

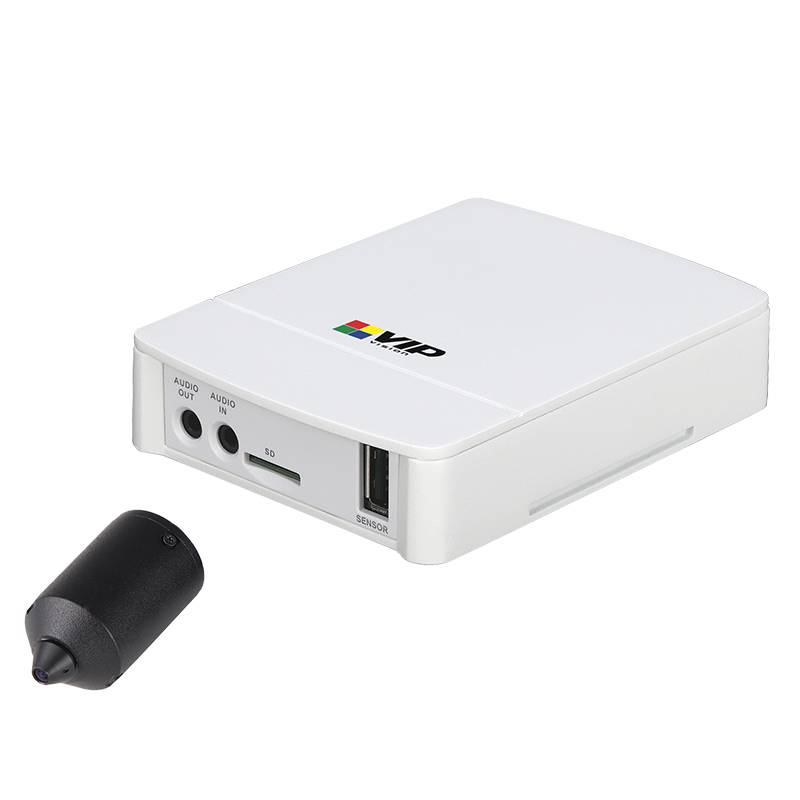

This camera features an image sensor/lens separated by an 8m cable connected to a control unit and is connected via USB port. The VSIP1MPPHS comes standard with:
- 1 x Adhesive-fastened flush mount bracket for pinhole mounting
- 1 x Screw-on kit with cover for pinhole surface mount
- 1 x Mounting kit for control unit with wall-plugs & screws

Links and Downloads

VIP Vision MPPH / PINHOLE Camera Datasheet (PDF) 1.09 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/2.8” 2.0 Megapixel Progressive Scan CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1920 (H) x 1080 (V)
RAM / ROM
256MB / 32MB
Ultra Low Light Colour
No
Min Illumination
0.07 Lux at F2.4 (Colour) / 0.007 Lux at F2.4 (B&W)
S/N Ratio
> 50dB
Infrared
No
Infrared System
N/A
Lens
Lens Type
Fixed
Lens / Iris
2.8mm F2.4 Fixed Lens
Field of View
Horizontal: 104°, Vertical: 57°
Focus
Fixed
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
38m
Observe (63px/m)
15m
Recognise (125px/m)
8m
Identify (250px/m)
4m
Video
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate (Main)
1080p (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265 / H.264
Bit Rate
H.265: 14 ~ 5632Kbps / H.264: 24 ~ 9472Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (Electronic) / Colour / B&W
Lighting Compensation
/ HLC / Digital WDR
Smart Scene Adaptive (SSA)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
N/A
IVS
IVS
Yes
Intelligent Functions
Face Detection, Tripwire, Intrusion, Abandoned/Missing Object, Motion Detection (4 Zone), Region of Interest (4 Zone), Privacy Masking (4 Zone)
Network
Ethernet
RJ45 (10/100 Base-T)
Protocol
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
Interface
Video Interface
N/A
Audio Interface
1 Input, 1 Output / Compression: G.711a, G.711mu, G.726, AAC
Alarm Interface
2 Inputs / 2 Output
RS485
N/A
Edge Storage
MicroSD Card (up to 128GB) / NAS / Local PC
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
<6W
Operating Conditions
-30° ~ +60° C / Less than 95% RH
Ingress Protection
N/A
Weather Resistance
No
Vandal Resistance
N/A
Series
Mobile Series
Camera Type
Pinhole
Housing
Metal
Pan/Tilt/Rotation
N/A
Tri-Axis Mounting
No
ePoE
No
Dimensions
Camera: Ø26 x 47mm / Control Unit: 110 x 83 x 24mm / Cable: 8m
Net Weight
Camera: 0.13kg / Control Unit: 0.20kg
Other
RS232
1 Port
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
174 mm
Height
84 mm
Depth
149 mm
Weight
0.33 kg
