Professional Series 1.3MP WDR Fixed Pinhole Camera (Square Mount)

Brand logo
SKU VSIP1MPPHS
Brand logo

Professional Series 1.3MP WDR Fixed Pinhole Camera (Square Mount)

SKU VSIP1MPPHS

This wide-dynamic IP pinhole camera is designed for discreet/covert surveillance applications and is ideal for use at controlled ingress points, in shelf surveillance, in-vehicles, ATMs and more.

Camera features:
• Stream up to 1.3 megapixel (1280 x 960) at 25fps
• 3.7mm fixed lens with 77° viewing angle
• Day/night (electronic), 3D noise reduction & auto white balance
• Wide dynamic range (100dB) with back/highlight compensation
• Discreet pinhole profile: 11mm diameter / 5mm depth
• Smart detection support incl. face detection and scene change
• MicroSD card slot for at-the-edge recording, up to 64GB
• Power via 12VDC or Power over Ethernet (802.3af)
• ONVIF, PSIA and CGI compliance

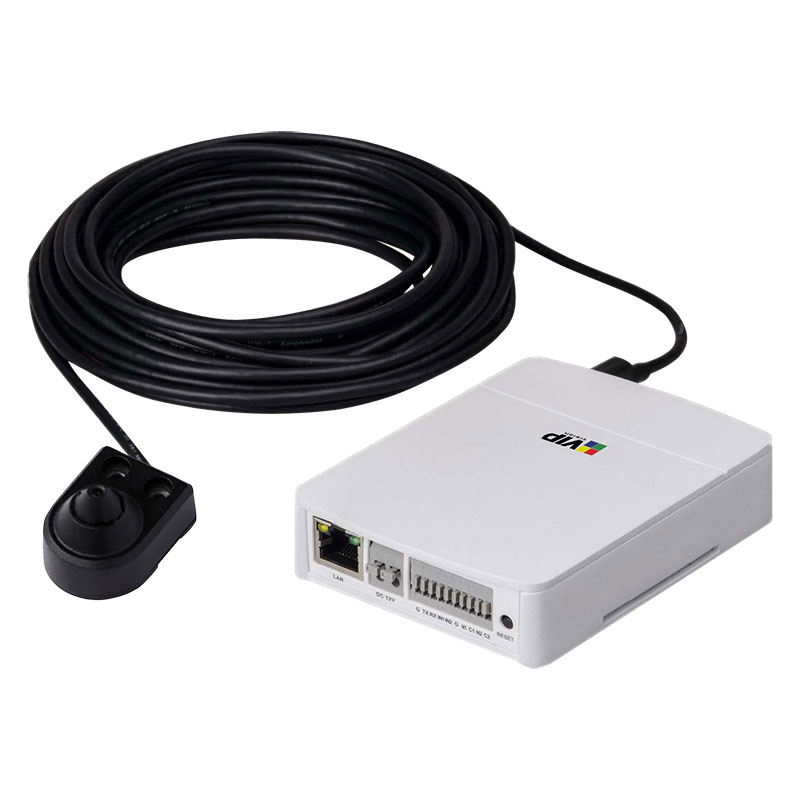

This camera features an image sensor/lens separated by an 8m cable connected to a control unit and is connected via USB port. The VSIP1MPPHS comes standard with:
- 1 x Adhesive-fastened flush mount bracket for pinhole mounting
- 1 x Screw-on kit with cover for pinhole surface mount
- 1 x Mounting kit for control unit with wall-plugs & screws

Suggested Products

Suggested product image
Professional Series 1.3MP WDR Fixed Pinhole Camera (Bullet)
VSIP1MPPH

Links and Downloads

VSIP1MPPH Product Brochure (PDF) 0.31 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/3” 1.3 Megapixel Progressive Scan CMOS
Max. Resolution
1.3 Megapixel
Effective Pixels
1280 (H) x 960 (V)
RAM / ROM
256MB / 32MB
Ultra Low Light Colour
No
Min Illumination
0.01 Lux at F2.8 (Colour) / 0.001 Lux at F2.8 (B&W)
S/N Ratio
> 50dB
Infrared
No
Infrared System
N/A
Lens
Lens Type
Fixed
Lens / Iris
3.7mm F2.8 Fixed Lens
Field of View
77°
Focus
Fixed
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
Observe (63px/m)
Recognise (125px/m)
Identify (250px/m)
Video
Resolution
Configurable from 1.3MP (1280 x 960) to CIF (352 x 288)
Frame Rate (Main)
1.3MP and lower (1 ~ 25fps)
Frame Rate (Sub)
D1 and lower (1 ~ 25fps)
Frame Rate (Third)
N/A
Video Compression
H.264 / MJPEG
Bit Rate
H.264: 48K ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (electronic) / Colour / B&W
Lighting Compensation
BLC / HLC / WDR (100dB)
Smart Scene Adaptive (SSA)
White Balance
Auto / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
IVS
IVS
No
Intelligent Functions
Scene Change / Face Detection
Network
Ethernet
RJ-45 (10/100/1000 Base-T)
Protocol
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
Interface
Video Interface
N/A
Audio Interface
1 ch. Input / 1ch. Output / Compression: G.711a / G.711u / PCM
Alarm Interface
1 ch. input / 1 ch. output
RS485
Edge Storage
MicroSD slot up to 64GB
Interoperability
ONVIF, PSIA, CGI
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
< 7W
Operating Conditions
-30° to 60°C / RH95% (max)
Ingress Protection
N/A
Weather Resistance
No
Vandal Resistance
N/A
Series
Professional Series
Camera Type
Pinhole
Housing
Metal
Pan/Tilt/Rotation
N/A
Tri-Axis Mounting
No
ePoE

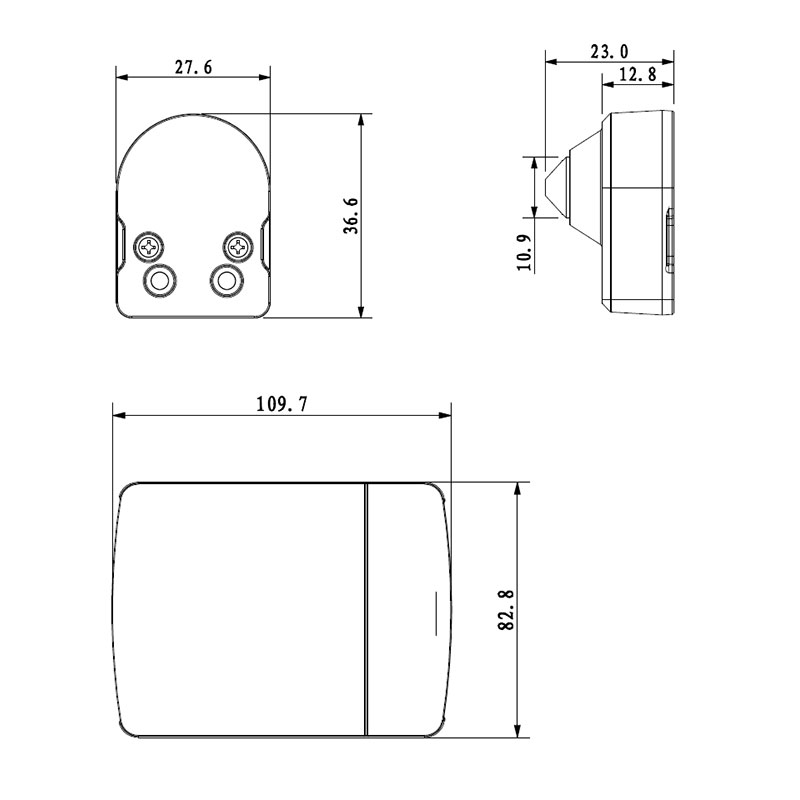

Dimensions
Controller 110 x 83 x 24mm / Camera 28 x 37 x 23mm
Net Weight
0.46kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
83 mm
Height
110 mm
Depth
24 mm
Weight
0.46 kg
