Professional Series 1.3MP WDR Fixed Pinhole Camera (Bullet)

Brand logo
SKU VSIP1MPPH
Brand logo

Professional Series 1.3MP WDR Fixed Pinhole Camera (Bullet)

SKU VSIP1MPPH

This wide-dynamic IP pinhole camera is designed for discreet/covert surveillance applications and is ideal for use at controlled ingress points, in shelf surveillance, in-vehicles, ATMs and more.

Camera features:
• Stream up to 1.3 megapixel (1280 x 960) at 25fps
• 3.7mm fixed lens with 77° viewing angle
• Day/night (electronic), 3D noise reduction & auto white balance
• Wide dynamic range (100dB) with back/highlight compensation
• Discreet pinhole profile: 12mm diameter / 5mm depth
• Smart detection support incl. face detection and scene change
• MicroSD card slot for at-the-edge recording, up to 64GB
• Power via 12VDC or Power over Ethernet (802.3af)
• ONVIF, PSIA and CGI compliance

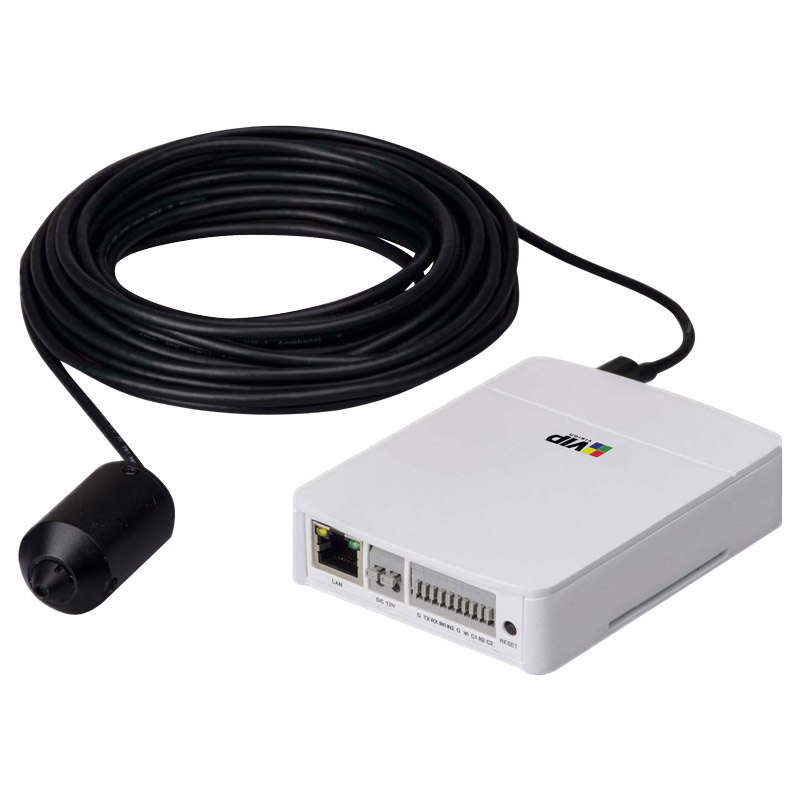

This camera features an image sensor/lens separated by an 8m cable connected to a control unit and is connected via USB port. The VSIP1MPPH comes standard with:
- 1 x Adhesive-fastened flush mount bracket for pinhole mounting
- 1 x Screw-on clamp to secure pinhole camera
- 1 x Mounting kit for control unit with wall-plugs & screws

Suggested Products

Suggested product image
Professional Series 1.3MP WDR Fixed Pinhole Camera (Square Mount)
VSIP1MPPHS

Links and Downloads

VSIP1MPPH Product Brochure (PDF) 0.31 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Alarm Interface
1 ch. input / 1 ch. output
Angle of View
77°
Audio Compression
G.711a / G.711u / PCM
Audio Input
1 ch. Input / 1ch. Output
Backlight Compensation
BLC / HLC / WDR (100dB)
Bit Rate
H.264: 48K ~ 8192Kbps
Camera Style
Pinhole Bullet
Camera Type
Pinhole
Day/Night
Auto (electronic) / Colour / B&W
Dimensions
110 x 83 x 24mm
Effective Pixels
1280 (H) x 960 (V)
Electronic Shutter
Auto/Manual, 1/3 ~ 1/10000s
Frame Rate - Main
1.3MP and lower (1 ~ 25fps)
Frame Rate - Sub
D1 and lower (1 ~ 25fps)
Frame Rate - Third
N/A
Gain Control
Auto / Manual
Image Sensor
1/3” 1.3 Megapixel Progressive Scan CMOS
Ingress Protection
N/A
IVS
No
Lens
3.7mm F2.8 Fixed Lens
Lens Type
Fixed
Max. Infrared Range
N/A
Max. Resolution
1.3 Megapixel
Memory Slot
MicroSD slot up to 64GB
Minimum Illumination
0.01 Lux at F2.8 (Colour) / 0.001 Lux at F2.8 (B&W)
Network Interface
RJ45 (10/100/1000 Base-T)
Noise Reduction
3D Digital Noise Reduction
ONVIF Conformance
ONVIF, PSIA, CGI Compliant
Operating Environment
-30° to 60°C / RH95% (max)
Power Consumption
< 7W
Power Input
12VDC / PoE (802.3af)
Series
Professional Series
Signal Noise Ratio
> 50dB
Smart Functions
Scene Change / Face Detection
Tri-Axis Mounting
No
Ultra Low Light
No
Vandal Resistance
N/A
Video Compression
H.264 / MJPEG
Video Output
N/A
Video Resolution
Configurable from 1.3MP (1280 x 960) to CIF (352 x 288)
Weight
0.46kg
White Balance
Auto / Manual
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
83 mm
Height
110 mm
Depth
24 mm
Weight
0.46 kg
