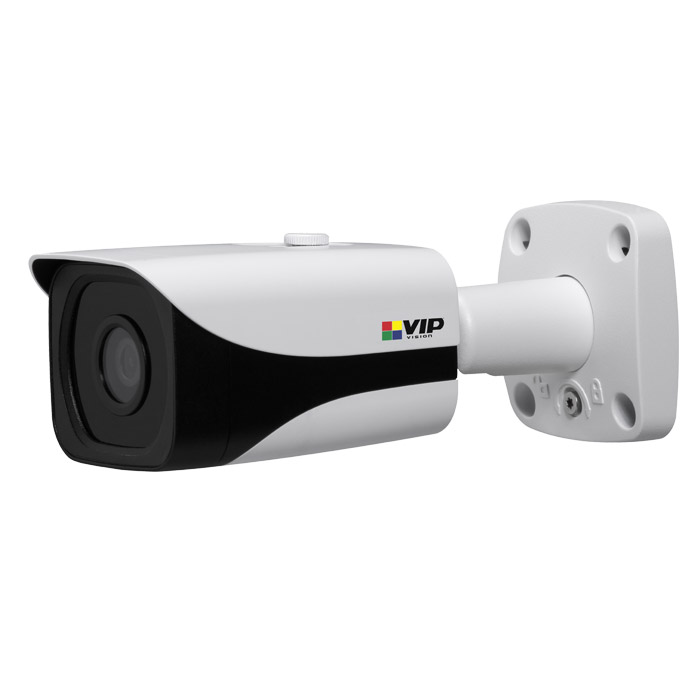

Professional Series 1.3MP Infrared Fixed Mini Bullet

Brand logo
SKU VSIP1MPFBIRV4
Brand logo

Professional Series 1.3MP Infrared Fixed Mini Bullet

SKU VSIP1MPFBIRV4

Taking standard IP surveillance cameras to the next level with improved infrared capability, triple stream encoding and smart detection features such as face detection.

Camera features:
• Stream up to 1.3 megapixel (1280 x 960) at 25fps
• 3.6mm fixed lens with 74° viewing angle
• Day/night (auto ICR) with 40m maximum infrared range
• Back/highlight compensation with digital wide dynamic range
• 3D digital noise reduction and auto white balance
• Power via 12VDC or Power over Ethernet (802.3af)
• Supports triple stream and smart detection technology
• IP67 weather resistant housing for external use
• ONVIF, PSIA and CGI compliance

Suggested Products

Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA121
Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152

Links and Downloads

VSIP1MPFBIRV4 Product Brochure (PDF) 0.48 MB
Bracket Compatibility Guide 06-2017 (PDF) 0.83 MB
Firmware Update 2017-06-20 13.05 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/3” 1.3 Megapixel Progressive Scan CMOS
Max. Resolution
1.3 Megapixel
Effective Pixels
1280 (H) x 960 (V)
RAM / ROM
Ultra Low Light Colour
No
Min Illumination
0.01 Lux at F2.2 (Colour) / 0 Lux at F2.2 (IR on)
S/N Ratio
> 50dB
Infrared
Yes
Infrared System
40m range
Lens
Lens Type
Fixed
Lens / Iris
3.6mm F2.2 Fixed Lens
Field of View
74°
Focus
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
Observe (63px/m)
Recognise (125px/m)
Identify (250px/m)
Video
Resolution
Configurable from 1.3MP (1280 x 960) to CIF (352 x 288)
Frame Rate (Main)
1.3MP and lower (1 ~ 25fps)
Frame Rate (Sub)
D1 and lower (1 ~ 25fps)
Frame Rate (Third)
720p and lower (1 ~ 14fps)
Video Compression
H.264 / H.264B / H.264H / MJPEG
Bit Rate
H.264: 32K ~ 10Mbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Colour / B&W
Lighting Compensation
BLC / HLC / DWDR
Smart Scene Adaptive (SSA)
White Balance
Auto / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)
IVS
IVS
No
Intelligent Functions
Scene Change / Face Detection
Network
Ethernet
RJ-45 (10/100 Base-T)
Protocol
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
Interface
Video Interface
N/A
Audio Interface
N/A
Alarm Interface
N/A
RS485
N/A
Edge Storage
N/A
Interoperability
ONVIF, PSIA, CGI
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
< 5.5W
Operating Conditions
-40° to 60°C / RH95% (max)
Ingress Protection
IP67
Weather Resistance
Yes
Vandal Resistance
N/A
Series
Professional Series
Camera Type
Bullet
Housing
Metal
Pan/Tilt/Rotation
N/A
Tri-Axis Mounting
No
ePoE
Dimensions
70 x 70 x 180mm
Net Weight
0.40kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
210 mm
Height
100 mm
Depth
110 mm
Weight
0.50 kg
