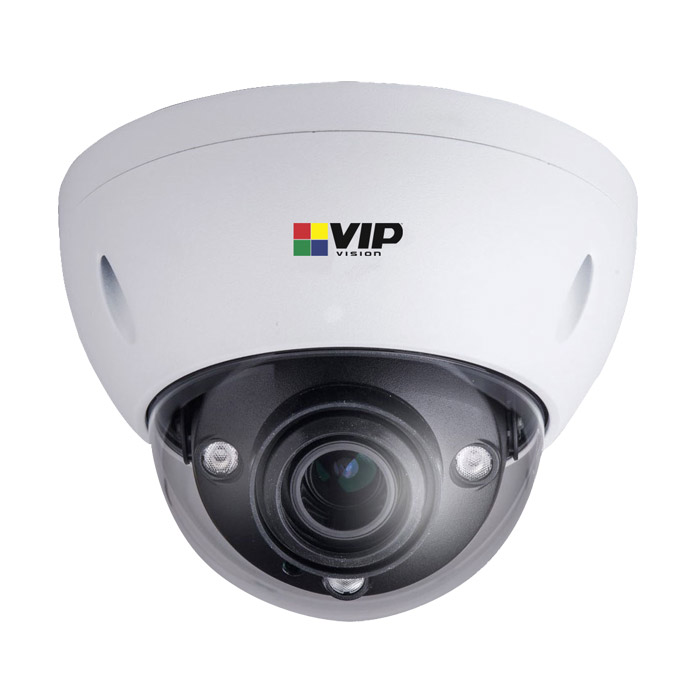

VSIP12MPVDIRM: Ultimate Series 12.0MP Infrared Motorised Dome

Specifications

Camera

Image Sensor

1/1.7” 12.0 Megapixel Progressive Scan CMOS

Max. Resolution

12.0 Megapixel

Effective Pixels

4000 (H) x 3000 (V)

RAM / ROM

Ultra Low Light Colour

Min Illumination

0.05 Lux at F1.4 (Colour) / 0 Lux at F1.4 (IR on)

S/N Ratio

> 50dB

Infrared

Yes

Infrared System

3 x Infrared LED, 50m range, Auto/manual on/off control

Lens

Lens Type

Motorised Varifocal

Lens / Iris

4.1 ~ 16.4mm F1.4 Motorised Lens with Auto Iris (DC)

Field of View

106° (wide) ~ 32° (tele)

Focus

Auto Focus / 1m Min. Focus Distance

DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Detect (25px/m)

Observe (63px/m)

Recognise (125px/m)

Identify (250px/m)

Video

Resolution

Configurable from 12.0MP (4000 x 3000) to CIF (352 x 288)

Frame Rate (Main)

12.0MP (1 ~ 15fps) / 8.0MP and lower (1~25/30fps)

Frame Rate (Sub)

D1 and lower (1 ~ 25/30fps)

Frame Rate (Third)

1080p and lower (1 ~ 25fps)

Video Compression

H.264 / H.264B / H.264H / MJPEG

Bit Rate

H.264: 32K ~ 16Mbps

Bit Rate Control

Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night

Auto (ICR) / Colour / B&W

Lighting Compensation

BLC / HLC / DWDR

Smart Scene Adaptive (SSA)

White Balance

Auto / Sunny / Night / Outdoor / Customised

Gain Control

Auto / Manual

Noise Reduction

3D DNR

Picture Control

Mirror / Flip (0°, 90°, 180°, 270°)

IVS

Intelligent Functions

Scene Change / Face Detection

Network

Ethernet

RJ-45 (10/100/1000 Base-T)

Protocol

HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP

Streaming Method

Unicast / Multicast

Max. User Access

10 Users / 20 Users

RTMP Support

Interface

Video Interface

1 channel, BNC (1.0Vp-p, 75 ohm)

Audio Interface

1 ch. Input / 1ch. Output / Compression: G.711a / G.711u / AAC

Alarm Interface

1 ch. input / 1 ch. output

RS485

N/A

Edge Storage

MicroSD slot up to 128GB

Interoperability

ONVIF, PSIA, CGI

Environmental

Power Supply

12VDC / 24VAC (optional) / PoE (802.3at)

Power Consumption

< 24W

Operating Conditions

-40° ~ +60° C / Less than 95% RH

Ingress Protection

IP67

Weather Resistance

Yes

Vandal Resistance

IK10

Series

Ultimate Series

Camera Type

Dome

Housing

Metal, Polycarbonate

Pan/Tilt/Rotation

Pan: 0° ~ 355°; Tilt: 0° ~ 65° ; Rotation: 0° ~ 355°

Tri-Axis Mounting

Yes

ePoE

Dimensions

Ø159 x 118mm

Net Weight

1.1kg

Warranty (Years)
