Fisheye Series 12.0MP Infrared 360° Fisheye Dome

Brand logo
SKU VSIP12MPFEIRV2
Brand logo

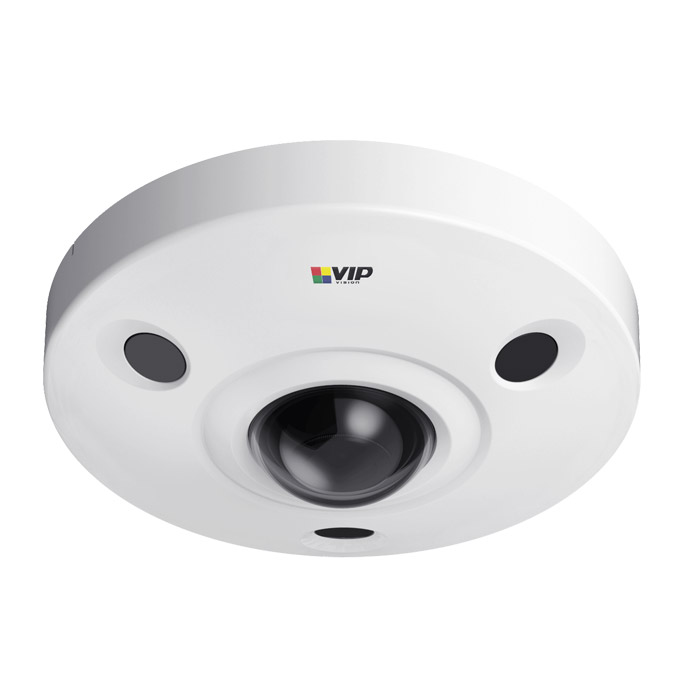

Fisheye Series 12.0MP Infrared 360° Fisheye Dome

SKU VSIP12MPFEIRV2

Available by special order only. Please contact us for lead times.

Designed to perform the duties of multiple cameras, the Fisheye range from VIP Vision transforms your surveillance experience through panoramic and virtual PTZ modes.

Camera features:
• Stream up to 12.0 megapixel (4000 x 3000) at 25fps
• H.265 encoding for ultra-low bitrate video transmission
• 1.98mm circular fisheye lens with 180° (H/V/D) viewing angle
• Five fisheye image dewarp modes* including ePTZ & panorama
• Day/night (auto ICR) with 10m maximum infrared range
• 3D digital noise reduction and auto white balance
• MicroSD card slot for at-the-edge recording, up to 128GB
• Audio and alarm interface input/outputs
• Power via 12VDC or Power over Ethernet (802.3af)
• IP67/IK10 weather/vandal resistant housing for external use
• ONVIF, PSIA and CGI compliance


*Please note: Fish eye, dewarping functionality requires one of the following network video recorders:
• All NVRs from VIP Vision Ultimate Series (NVRxULTNP or later)
• Select NVRs from VIP Vision Professional Series (NVR8PRO4, NVR16PRO5/NP, NVR32PRO16P/NP, or later)

Suggested Products

Suggested product image
Adapter for Ceiling & Wall Mount Brackets
VSBKTA100
Suggested product image
Adapter for Ceiling Mount Brackets
VSBKTA105
Suggested product image
Ceiling/Wall Mount Adapter for PTZ Cameras
VSBKTA110
Suggested product image
220mm Extender for Ceiling Mount Bracket
VSBKTA112
Suggested product image
420mm Extender for Ceiling Mount Bracket
VSBKTA113
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA132
Suggested product image
Triple Clamp Pole Mount Camera Bracket
VSBKTA150
Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image

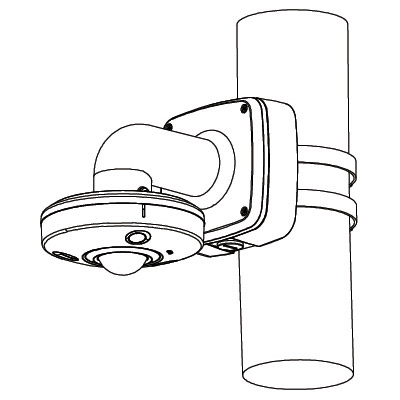

Dual Clamp Pole Mount Camera Bracket
VSBKTA152E
Suggested product image

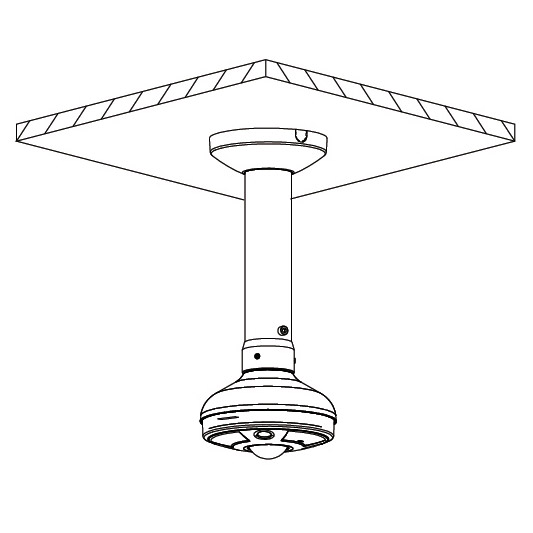

Ceiling Mount Camera Bracket
VSBKTB300C
Suggested product image

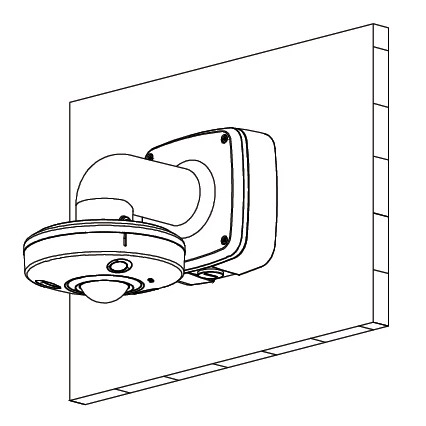

Right Angle Wall Mount Camera Bracket
VSBKTB302S

Links and Downloads

VIP Vision FEIR Fisheye Dome Datasheet (PDF) 0.42 MB
VIP Vision FEIR Fisheye Dome Quick Install Guide (PDF) 1.55 MB
VSIP12MPFEIR Sample Footage #1 (DAV) 227.41 MB
VSIP12MPFEIR Sample Footage #2 (DAV) 362.36 MB
Network Camera Web 3.0 Operation Manual V2.0.5 8.46 MB
Accessory Compatibility Guide - Q1 2021 (PDF) 1.75 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/1.7’’ 12.0MP Progressive Scan CMOS
Max. Resolution
12.0 Megapixel
Effective Pixels
4000 (H) x 3000 (V)
RAM / ROM
1024MB / 128MB
Ultra Low Light Colour
Yes
Min Illumination
Colour: 0.001 Lux (F2.8, 1/3s) / 0.01 Lux (F2.8, 1/30s)
S/N Ratio
> 50dB
Infrared
Yes
Infrared System
3 x Infrared LED, 10m range, Auto/Manual on/off control
Lens
Lens Type
Fixed
Lens / Iris
1.98mm F2.8 Fixed Circular Fisheye Lens
Field of View
Horizontal: 180°, Vertical: 180°
Focus
Fixed
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
42m
Observe (63px/m)
17m
Recognise (125px/m)
8m
Identify (250px/m)
4m
Video
Resolution
12.0MP (4000 x 3000) to CIF (352 x 288)
Frame Rate (Main)
12.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1.3MP (1 ~ 25fps)
Video Compression
H.265 / H.264
Bit Rate
H.265: 3 ~ 9984Kbps / H.264: 8 ~ 16384Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / Digital WDR
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Dewarping Modes
Original (no dewarp) / Panoramic / Double Panoramic / Virtual PTZ / Original + 3 split, + 4 split, + 8 split
IVS
IVS
Yes
Intelligent Functions
Face Detection, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Defog
Network
Ethernet
RJ-45 (100/1000Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
No
Interface
Video Interface
N/A
Audio Interface
1 Input, 1 Output / Compression: G.711a, G.711mu, G.726, AAC
Alarm Interface
2 Inputs / 2 Output
RS485
N/A
Edge Storage
MicroSD Card (up to 128GB) / NAS / Local PC
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
<12W
Operating Conditions
-30° ~ +60° C / Less than 95% RH
Ingress Protection
IP67
Weather Resistance
Yes
Vandal Resistance
IK10
Series
Fisheye Series
Camera Type
Fisheye Dome
Housing
Metal
Pan/Tilt/Rotation
N/A
Tri-Axis Mounting
No
ePoE
No
Dimensions
Ø150mm x 51mm
Net Weight
0.58kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
115 mm
Height
240 mm
Depth
65 mm
Weight
1.10 kg
