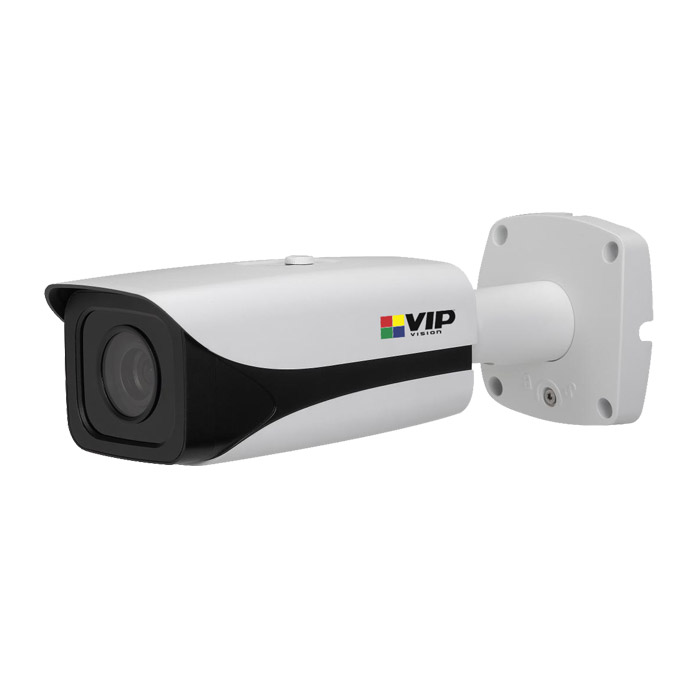

12.0 Megapixel Infrared Motorised Bullet

SKU VSIP12MPFBIRM

The best in image resolution and professional features in a single camera. Be amazed with broadcast quality Ultra HD resolution video, streamed in real-time up to 15Mbps.

Camera Features:
• Stream Ultra HD 12 megapixel (4000x3000) at 15fps
• 4.1 ~ 16.4mm motorised lens with 84.5 ~ 34° viewing angles
• Day/night (auto ICR) with 50m maximum infrared range
• Digital wide dynamic range with back/highlight compensation
• 3D digital noise reduction and auto white balance
• MicroSD card slot for at-the-edge recording, up to 128GB
• Audio and alarm interface input/output; BNC video output
• Supports triple stream and smart detection technologies
• IP67 weather resistant housing for external use
• ONVIF, PSIA and CGI compliance

Suggested Products

Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA121
Suggested product image
Corner Wall Mount Camera Bracket
VSBKTA151
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152

Links and Downloads

VSIP12MPFBIRM Product Brochure (PDF) 0.25 MB
Bracket Compatibility Guide 06-2017 (PDF) 0.83 MB
Network Camera Web 3.0 Operation Manual V2.0.5 8.46 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Alarm Interface
2 ch. input / 1 ch. output
Angle of View
84.5° (wide) ~ 34° (tele)
Audio Compression
G.711a / G.711u / AAC
Audio Input
1 ch. Input / 1 ch. Output
Backlight Compensation
BLC / HLC / DWDR
Bit Rate
H.264: 32K ~ 16Mbps
Camera Style
Weather Resistant Bullet
Camera Type
Bullet
Day/Night
Auto (ICR) / Colour / B&W
Dimensions
273 x 95 x 95mm
Effective Pixels
4000 (H) x 3000 (V)
Electronic Shutter
Auto / Manual (1/3 ~ 1/100000s)
Frame Rate - Main
12.0MP (1 ~ 15fps) / 8.0MP and lower (1~25/30fps)
Frame Rate - Sub
D1 and lower (1 ~ 25fps)
Frame Rate - Third
1080p and lower (1 ~ 25fps)
Gain Control
Auto / Manual
Image Sensor
1/1.7” 12.0 Megapixel Progressive Scan CMOS
Ingress Protection
IP67
Lens
4.1 ~ 16.4mm F1.53 Motorised Lens with Auto Iris (DC)
Lens Type
Motorised Varifocal
Max. Resolution
12.0 Megapixel
Maximum Infrared Range
50m
Memory Slot
MicroSD slot up to 128GB
Minimum Illumination
0.05 Lux at F1.4 (Colour) / 0 Lux at F1.4 (IR on)
Network Interface
RJ45 (10/100/1000 Base-T)
Noise Reduction
3D Digital Noise Reduction
ONVIF Conformance
ONVIF, PSIA, CGI Compliant
Power Consumption
< 24W
Power Input
12VDC / 24VAC / PoE (802.3at)
Signal Noise Ratio
> 50dB
Smart Functions
Scene Change / Face Detection
Tri-Axis Mounting
No
Vandal Resistant
N/A
Video Compression
H.264/H.264B/H.264H/ MJPEG
Video Output
1 channel, BNC (1.0Vp-p, 75 ohm)
Video Resolution
Configurable from 12.0MP (4000 x 3000) to CIF (352 x 288)
Weight
0.8kg
White Balance
Auto / Sunny / Night / Outdoor / Customised
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
207 mm
Height
107 mm
Depth
98 mm
Weight
0.70 kg
