Ultimate Series 12.0MP C/CS Mount Full Body Camera

Brand logo
SKU VSIP12MPFB
Brand logo

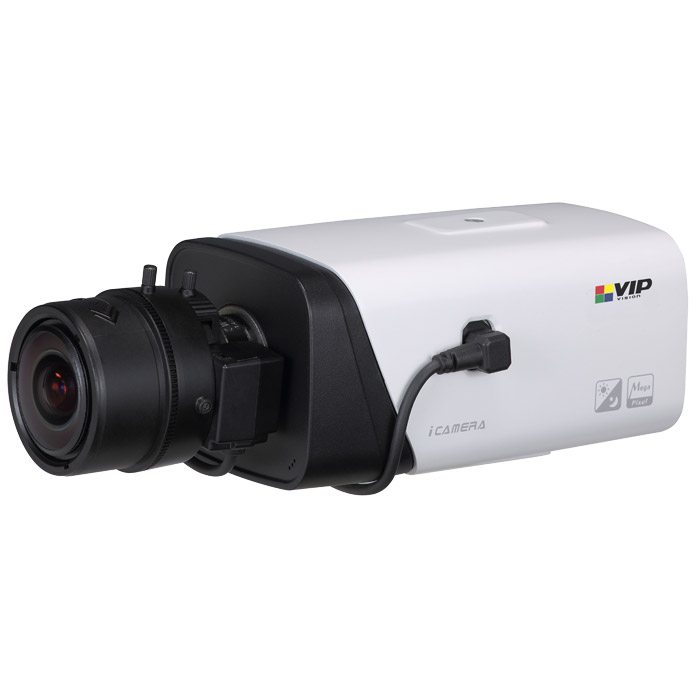

Ultimate Series 12.0MP C/CS Mount Full Body Camera

SKU VSIP12MPFB

Go beyond Ultra High Definition. Ensure you have the video evidence when it matters most with footage six times the image resolution of full high definition 1080p.

Camera features:
• Stream up to 12.0 megapixel (4000 x 3000) at 12fps
• Auto back-focus, electronic image stabilisation and defog
• Privacy masking and region of interest up to 4 areas
• Day/night (auto ICR), back/highlight compensation & DWDR
• 3D digital noise reduction and auto white balance
• MicroSD card slot for at-the-edge recording, up to 128GB
• Supports triple stream technology
• Audio and alarm interface input/output; BNC video output
• Power via 12VDC, 24VAC or Power over Ethernet (802.3af)
• C/CS mount type fits most megapixel lenses

* Lens not included

Suggested Products

Suggested product image
6.0 Megapixel Auto Iris C-Mount Lens (4.1~9mm)
VSLA4.1-9U

Links and Downloads

VSIP12MPFB Product Brochure (PDF) 0.45 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Camera
Image Sensor
1/2.3” 12.0 Megapixel Progressive Scan CMOS
Max. Resolution
12.0 Megapixel
Effective Pixels
4000 (H) x 3000 (V)
RAM / ROM
Ultra Low Light Colour
No
Min Illumination
0.1 Lux at F1.2 (Colour) / 0.01 Lux at F1.2 (B&W)
S/N Ratio
> 50dB
Infrared
No
Infrared System
N/A
Lens
Lens Type
Sold Separately
Lens / Iris
Lens not included, C/CS Lens Mount
Field of View
N/A
Focus
N/A
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
Observe (63px/m)
Recognise (125px/m)
Identify (250px/m)
Video
Resolution
Configurable from 12.0MP (4000 x 3000) to CIF (352 x 288)
Frame Rate (Main)
12.0MP (1 ~ 12fps) / 8.0MP and lower (1~25fps)
Frame Rate (Sub)
D1 and lower (1 ~ 50fps)
Frame Rate (Third)
1080p and lower (1 ~ 50fps)
Video Compression
H.264 / MJPEG
Bit Rate
H.264: 32K ~ 96Mbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Colour / B&W
Lighting Compensation
BLC / HLC / DWDR
Smart Scene Adaptive (SSA)
White Balance
Auto / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
N/A
IVS
IVS
No
Intelligent Functions
Auto Back-focus / Electronic Image Stabilisation / Defog
Network
Ethernet
RJ-45 (10/100/1000 Base-T)
Protocol
Streaming Method
Unicast / Multicast
Max. User Access
RTMP Support
Interface
Video Interface
1 channel, BNC (1.0Vp-p, 75 ohm)
Audio Interface
Built-in Mic / Compression: G.711a / G.711u
Alarm Interface
2 ch. input / 1 ch. output
RS485
N/A
Edge Storage
MicroSD slot up to 128GB
Interoperability
ONVIF, PSIA, CGI
Environmental
Power Supply
12VDC / 24VAC / PoE (802.3af)
Power Consumption
< 12W
Operating Conditions
-30° to 60°C / RH95% (max)
Ingress Protection
N/A
Weather Resistance
No
Vandal Resistance
N/A
Series
Ultimate Series
Camera Type
Full Body Bullet
Housing
Metal
Pan/Tilt/Rotation
N/A
Tri-Axis Mounting
No
ePoE
Dimensions
74 x 66 x 135mm
Net Weight
0.30kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
207 mm
Height
107 mm
Depth
98 mm
Weight
0.70 kg
