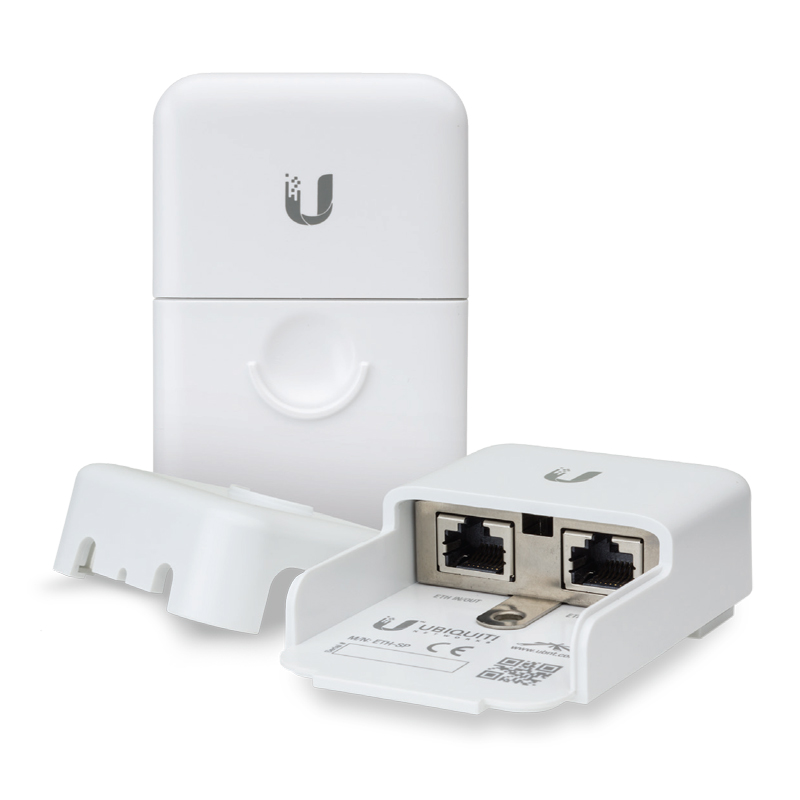

Ethernet Surge Protector

SKU VSETHSP

Ethernet Surge Protector

SKU VSETHSP

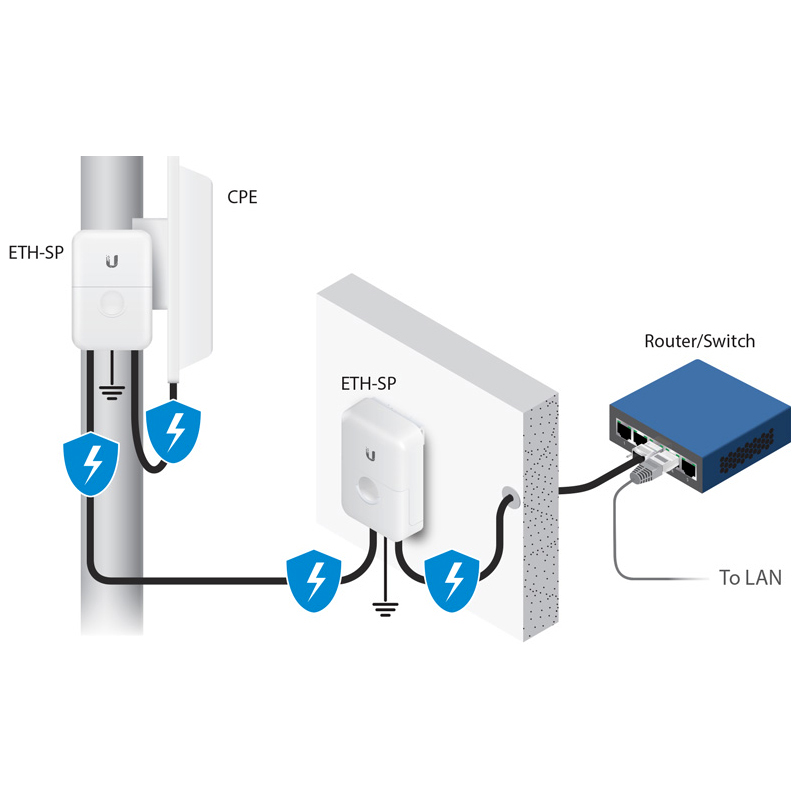

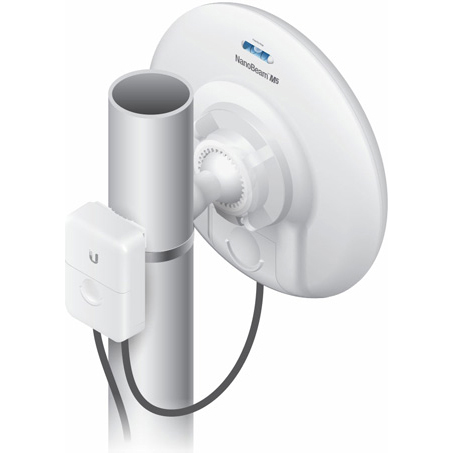

The VSETH-SP is engineered to protect any Power‑over‑Ethernet (PoE) or non‑PoE device with connection speeds of up to 1 Gbps. This is a great protection for outdoor POE devices, when damaging electrostatic discharge attacks and surges are diverted to the VSETH-SP and safely discharged into the ground, so network devices are protected.

Suggested Products

Ubiquiti 5.8GHz LiteBeam 120° Wireless Access Point
WT5-ULB

Ubiquiti 5.8GHz 25dBi PowerBeam AC Antenna
WT5-UPBAC4

Ubiquiti 400mm Powerbeam AC Antenna Radome Shield
WT5-UPBAC4D

Ubiquiti 5.8GHz 27dBi PowerBeam AC Antenna with Radome Shield
WT5-UPBAC5

Links and Downloads

VSETHSP Product Brochure (PDF) 1.88 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

Data Line Protection

RJ45 10/100/1000 Ethernet

DC Spark-Over Voltage

90V @ 100V/s

Dimensions

91 x 61 x 32.5 mm

Discharge Current

5kA (Maximum), 0.5kA (Normal)

ESD/EMP Protection

Absorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/μs

IEEE 802.3af PoE Support

Yes

Interface Connections

(2) RJ45 Female Connectors

Maximum Capacitance

1.0 pF @ 1 MHz

Maximum Impulse Spark-over Voltage

700V @ 1kV/μs

Maximum Insulation Resistance

1G ohm @ 50V

Operating Humidity

10 to 90% Noncondensing

Operating Temperature

-30 to 65° C

Shock and Vibration Certification

ETSI300-019-1.4 Standard

Weight

80 g

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

65 mm

Height

95 mm

Depth

35 mm

Weight

0.11 kg
