9-port Unmanaged Gigabit Fibre Access PoE Ethernet Switch

Brand logo
SKU VSETH-SW9GF2
Brand logo

9-port Unmanaged Gigabit Fibre Access PoE Ethernet Switch

SKU VSETH-SW9GF2

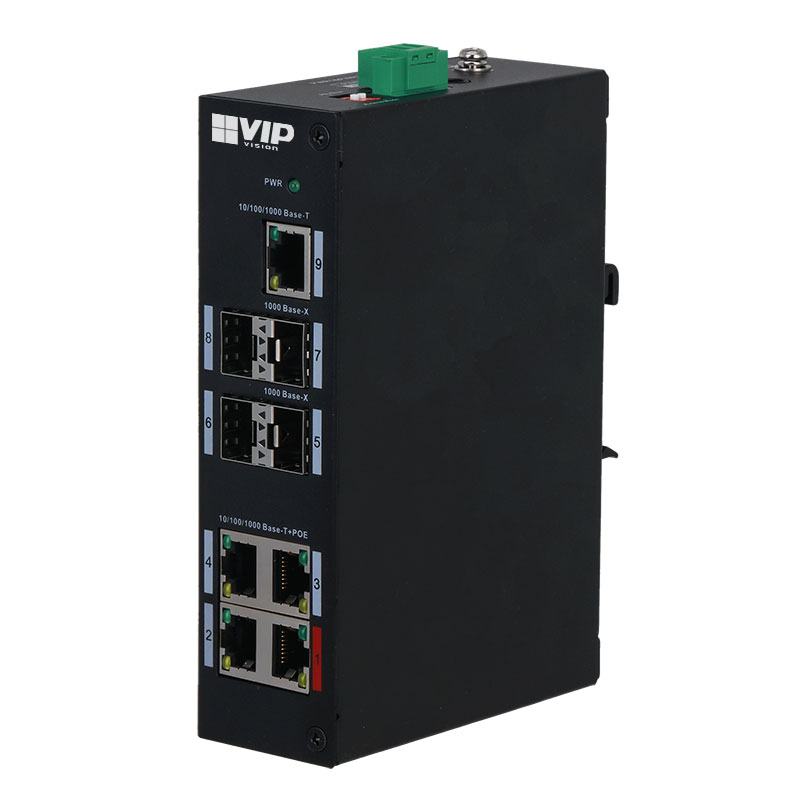

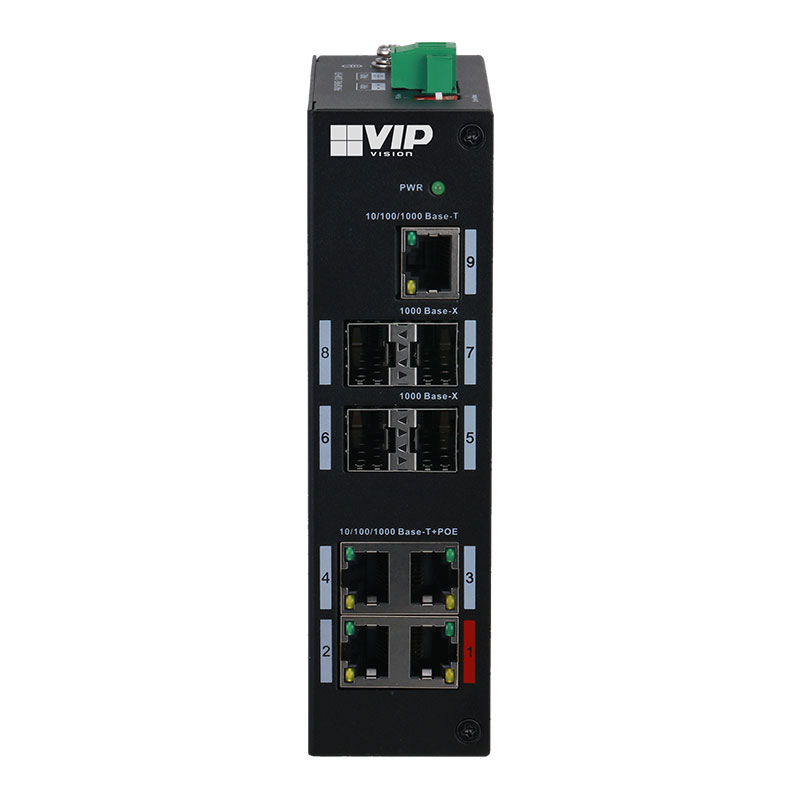

The VSETH-SW9GF2 is a 9-port Gigabit Ethernet switch designed for integrating with fibre-optic network infrastructure. Connect IP devices including surveillance, telephones, access points and more to fibre backbone with multiple gigabit SFP & Ethernet ports. It is ideal in connecting large facilities such as school & university campuses. This model features 4 ports of PoE.

Product features:
• 4 x Gigabit 1000Mbps PoE ports
• 4 x Gigabit 1000Mbps SFP fibre ports
• 1 x Gigabit 1000Mbps uplink port
• Total PoE power load up to 120W
• Unmanaged switch for plug and play applications
• DIN rail mountable for neat rackmount installations
• Full metal enclosure for professional appearance
• Lightning overvoltage protection up to 4kV
• Electrostatic discharge protection up to 8kVW
• Operates in extreme temperatures from -30°~65°C

Suggested Products

Suggested product image
LC-LC OM3 Multimode Fibre Optic Patch Lead - 2m
FCLCLC2M
Suggested product image
LC-SC OM3 Multimode Fibre Optic Patch Lead - 2m
FCLCSC2M
Suggested product image
LC-ST OM3 Multimode Fibre Optic Patch Lead - 2m
FCLCST2MOM3
Suggested product image
Mini GBIC / SFP Multi-mode Fibre Adapter (MMF)
SFPMM1

Links and Downloads

VIP Vision VSETH-SW9GF2 Datasheet (PDF) 0.69 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Switch Specification
Ports
9 ports
Speed
Gigabit 10/100/1000

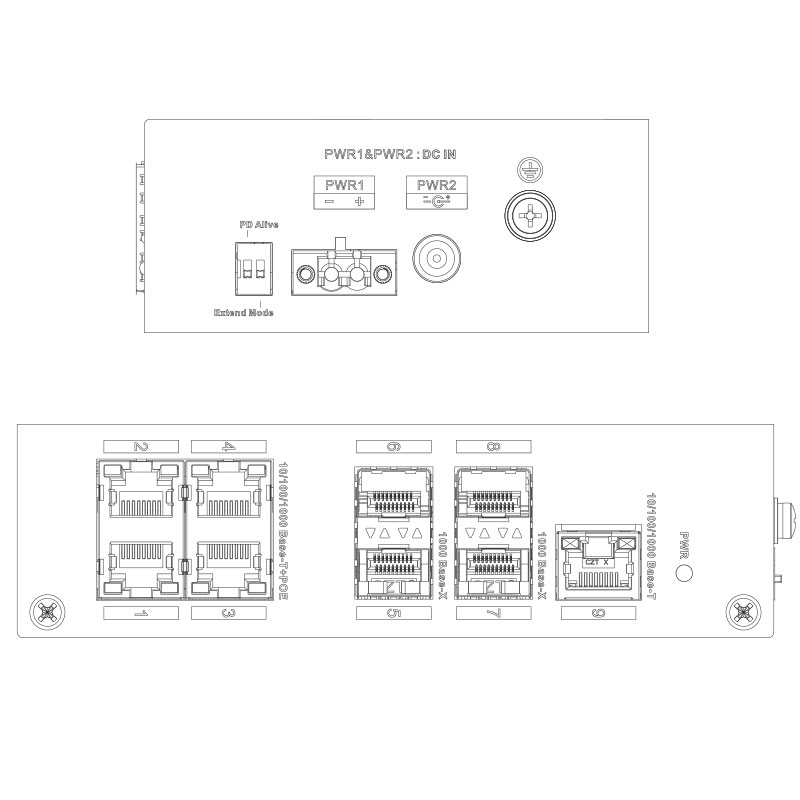

Device Ports
4 x 10/100/1000 Base-T (PoE)
Uplink Ports
4 x 1000 Base-X / 1 x 10/100/1000 Base-T
Switching Capacity
33Gbps
Packet Forwarding Rate
13.39Mpps
Exchange Mode
Store & forward
Power over Ethernet
PoE
Yes
PoE Protocol
IEEE 802.3af/ IEEE 802.3at/ Hi-PoE/IEEE 802.3bt
Switch Power Load
Port 1 ≤90 W, Port 2-4 ≤30W, Total ≤120W
Management
Switch Management
Unmanaged
MAC Address Capacity
4K
Virtual LAN
N/A
Network Time Protocol
N/A
Spanning Tree Protocol
N/A
Port Aggregation
N/A
Port Mirroring
N/A
LLDP
N/A
DHCP
N/A
Extend Mode
N/A
Flow Control
N/A
Security Features
N/A
System Maintenance
N/A
Quality of Service
N/A
Network Management
N/A
PoE Management
N/A
Environmental
Input Power
48 ~ 57VDC
Lightning Protection
Common Mode: 4KV / Differential Mode: 2KV

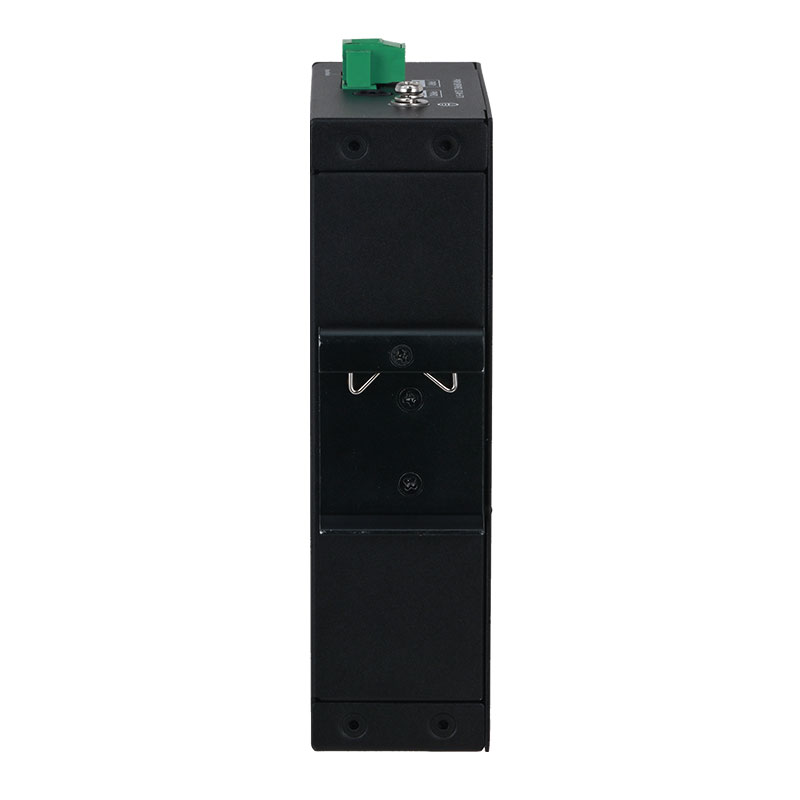

Mounting Options
DIN rail
Operating Environment
-30°C~65°C / RH10%~90%
Weight
0.67kg

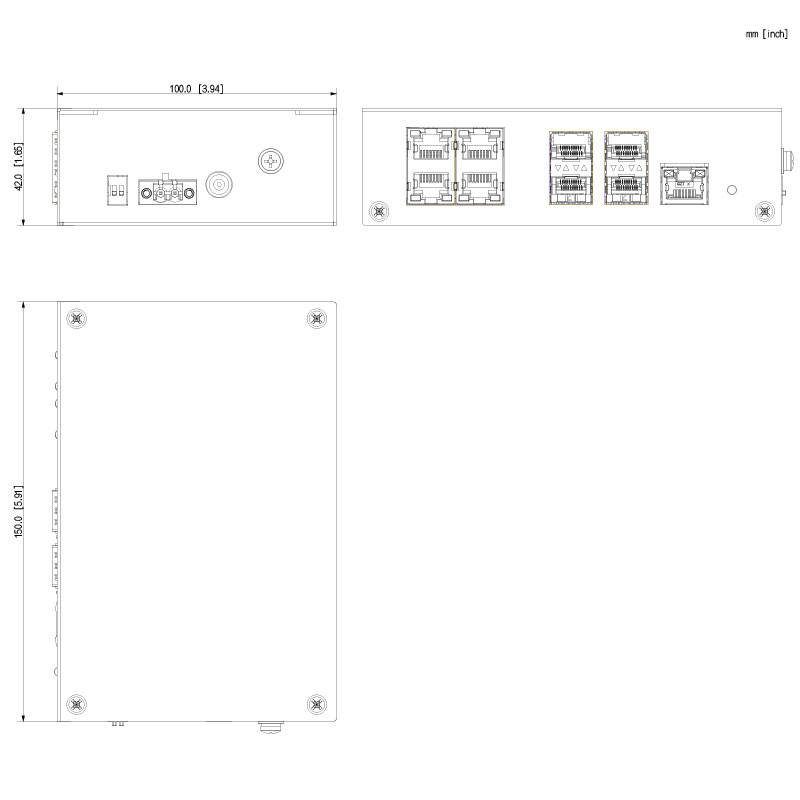

Dimensions
150 x 110 x 42mm
Other
ESD Protection
Air Discharge: 8kV / Contact Discharge: 6kV
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
110 mm
Height
85 mm
Depth
85 mm
Weight
1.40 kg
