HDMI to HDCVI Video Converter

Brand logo
SKU VSCVIENCODER
Brand logo

HDMI to HDCVI Video Converter

SKU VSCVIENCODER

Stock may be limited. Please contact us for availability or for an alternative item.

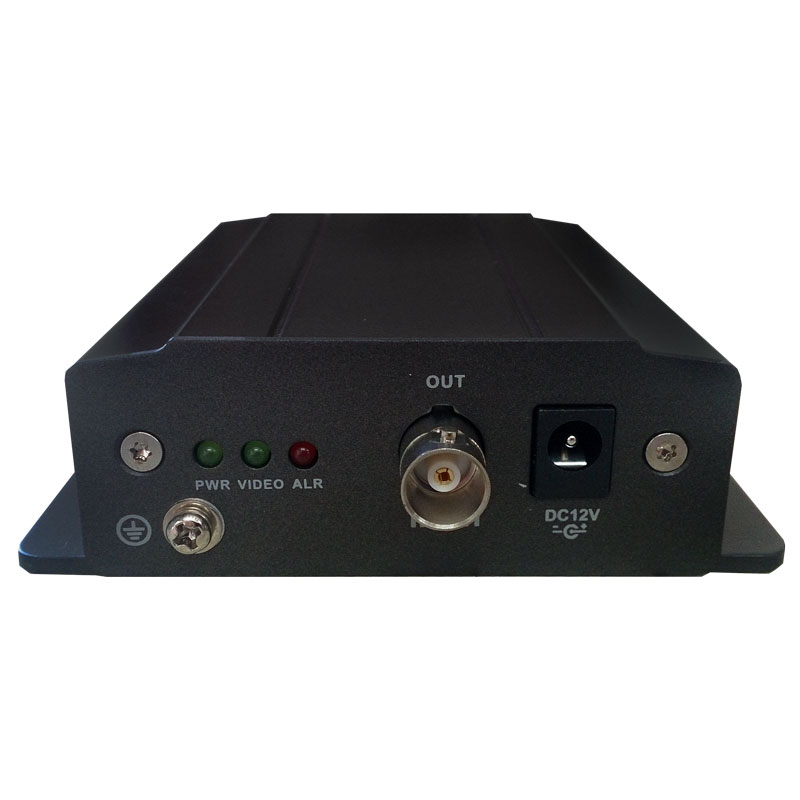

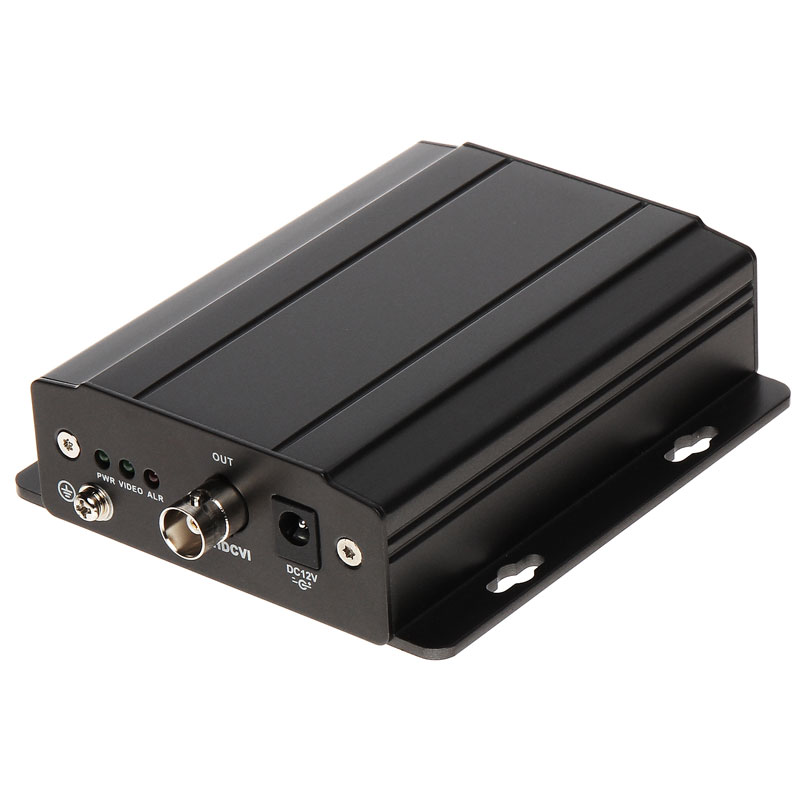

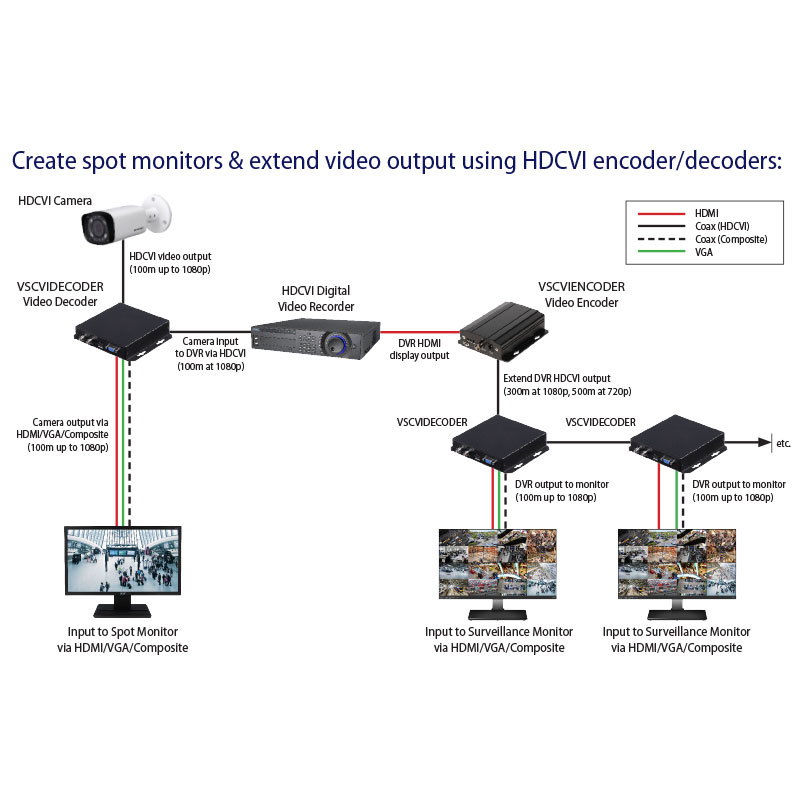

Securview Victory Series™ HDMI to HDCVI Video Converter converts and outputs HDMI video signal to HDCVI. It can be used in-line with a VSCVIDECODER to extend the display of your HDCVI surveillance system to multiple monitors over coaxial cable.

Product features:
• HDMI (A type) input to HDCVI (BNC) output
• Compatible with composite, AHD and HDTVI video signal distribution
• Real-time transmission, lossless, uncompressed video transmission
• Supports 1080p / 720p resolutions (HDCVI / HDMI / VGA)
• 12VDC 5A power supply / 104 x 96 x 29mm / 0.31kg
• Wall mount design, dust tight chassis / -10° ~ 55°C operating temp.

Suggested Products

Suggested product image
HDCVI to HDCVI / HDMI / VGA / Composite Video Converter
VSCVIDECODER

Links and Downloads

HDCVI Encoder/Decoder Product Brochure (PDF) 0.58 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Dimensions
104 x 96 x 29mm
HDCVI Output Signal
720p/50fps / 720p/60fps / 1080p/25fps / 1080p/30fps
HDMI Compatibility
HDMI1.3 / HDMI1.2 / HDMI1.1
HDMI Input Signal
1024 x 768 @ 60Hz / 1280 x 720 @ 50/60Hz / 1280 x 1024 @ 60Hz / 1600 x 1200 @ 60Hz / 1920 x 1080 @ 50/60Hz
Input Ports
HDMI (A type)
Installation
Wall Mount
LED Status Indicators
Power / Video / Alarm
Max. Transmission Rate
10.2Gbps
Operating Environment
-10° ~ 55°C / 10 ~ 90%RH
Output Ports
HDCVI (BNC)
Power Consumption
≤5W
Power Supply
12VDC
Transmission Distance
1080p: Up to 300m (75-5 coaxial) / 720p: Up to 500m (75-5 coaxial)
Weight
0.31kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
237 mm
Height
80 mm
Depth
151 mm
Weight
0.43 kg
