Alarm Module

Brand logo
SKU VSCVIARB
Brand logo

Alarm Module

SKU VSCVIARB

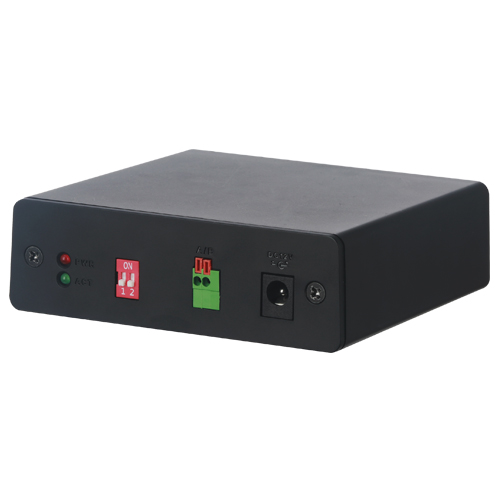

The VSCVIARB is the perfect solution for adding additional alarm outputs to any Digital Video Recorder.

Product features:

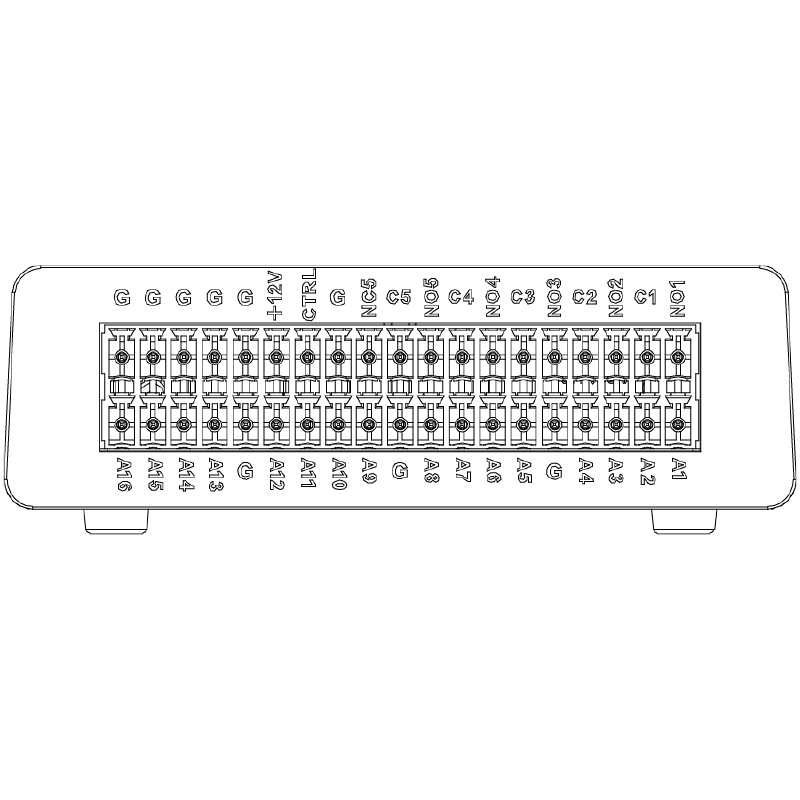

• 16 channel alarm input
• 6 channel alarm output
• Supports 2-bit DIP switch (1/2) to determine different alarm box access
• Power indicator (PWR) when device is powered on
• Signal communication indicator (ACT) lights up every 1 second during communication between the alarm box and DVR equipment
• 12VDC power input (PSU not included)

Links and Downloads

Securview VSCVIARB Datasheet (PDF) 0.18 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Channel In
16
Channel out
6
Communication
1 x RS485

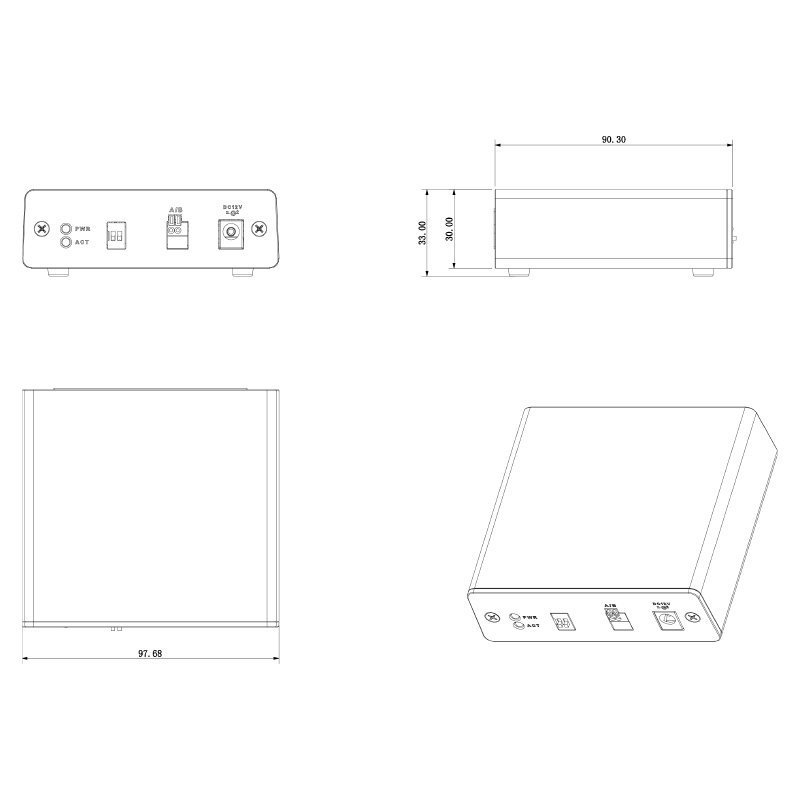

Dimension
97.68mm x 90.3mm x 33mm
DIP Switch
2-bit
Operating Humidity
10%~ 90%
Operating Temperature
-10°C ~ +55°C (+14°F ~ +131°F)
Power Consumption
0.2W
Power Input
12VDC
Weight
<0.2kg
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
93 mm
Height
98 mm
Depth
33 mm
Weight
0.20 kg
