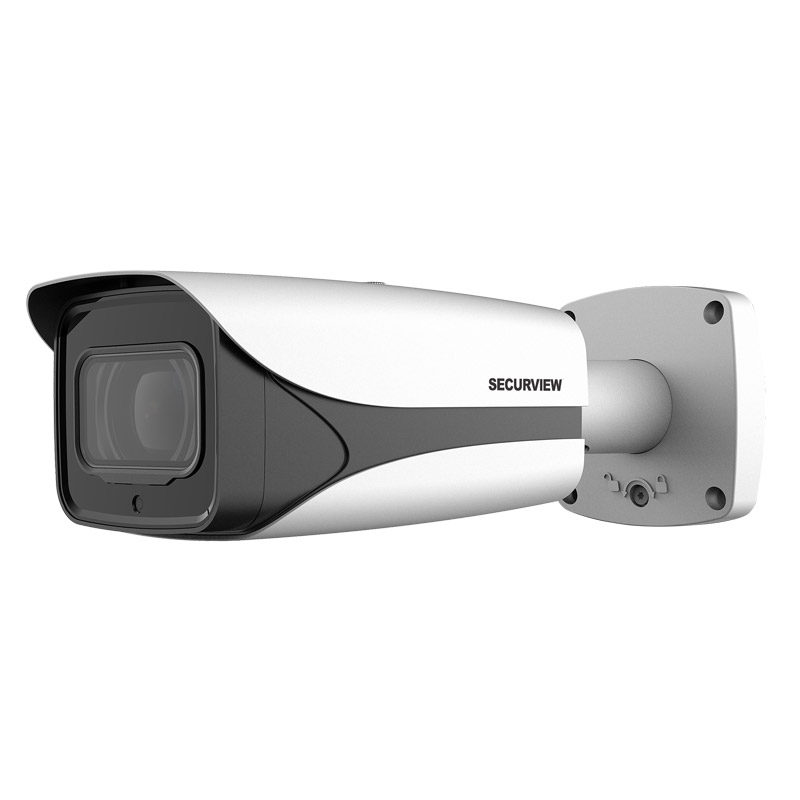

Ultimate Series 8.0MP WDR Motorised HDCVI Bullet

SKU VSCVI8MPFBIRM

Ultimate Series 8.0MP WDR Motorised HDCVI Bullet

SKU VSCVI8MPFBIRM

Experience unparalleled performance and ease of use with the Ultimate Series from Securview, with auto-iris motorised lens, true WDR, 100m infrared, dual voltage support and up to 700m Full HD video transmission.

Camera features:
• Streams up to Ultra HD 8.0MP (3840 x 2160) at 15fps
• Motorised 3.7 ~ 11mm lens, auto iris
• Ultra low light colour performance at 0.005lx/F1.5 min illumination
• Up to 700m HD video transmission over coax
• Infrared illumination up to 100m
• High definition & standard definition dual outputs
• Alarm and audio I/O interface
• True WDR (120dB) & 3D noise reduction
• IP67/IK10 metal weather & vandal rated camera housing
• Supports HDCVI & Composite video format modes
• Switch modes via dual BNC video outputs.

Suggested Products

Adapter/Junction Box for Surveillance Cameras
VSBKTA121

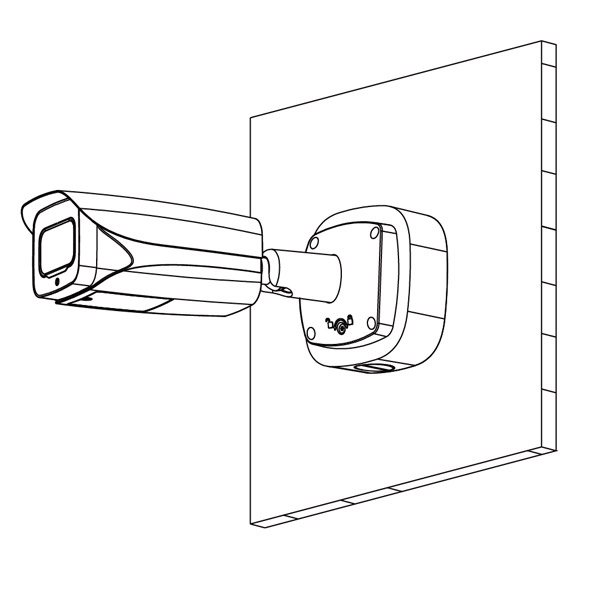

Corner Wall Mount Camera Bracket
VSBKTA151

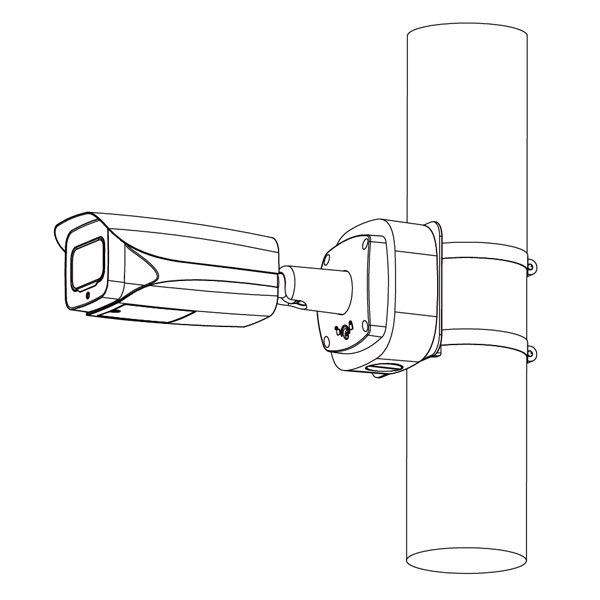

Dual Clamp Pole Mount Camera Bracket
VSBKTA152E

Links and Downloads

Securview FBIRM Ultimate Bullet Datasheet (PDF) 0.68 MB

Accessory Compatibility Guide 2023 (PDF) 1.60 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

General

Image Sensor

1/2” 8.0 Megapixel CMOS

Max. Resolution

8.0 Megapixel

Effective Pixels

3840 (H) x 2160 (V)

Signal Noise Ratio

> 65dB

Camera

Lens

3.7 ~ 11mm F1.5 Motorised Lens; Auto Iris

Lens Type

Motorised Varifocal

Angle of View

112° (wide) ~ 46° (tele)

Focus

Auto/Manual Focus / 0.2m Min. Focus Distance

Minimum Illumination

0.005 Lux at F1.5 (Colour) / 0 Lux IR Active

Electronic Shutter

1/3 ~ 1/100,000s

Day/Night

Auto (ICR) / Colour / B&W

Infrared Range

100m

White Balance

Auto

Noise Reduction

2D / 3D

Gain Control

Auto

Lighting Compensation

BLC / WDR (120dB)

DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Detect (25px/m)

83m (wide) / 190m (tele)

Observe (63px/m)

33m (wide) / 76m (tele)

Recognise (125px/m)

17m (wide)/ 38m (tele)

Identify (250px/m)

8 (wide)/ 19m (tele)

Video

Resolution

8.0MP (3840 x 2160) to CIF (352 x 288)

Frame Rate

15fps (8.0MP) / 25fps (4.0MP and lower)

Transmission Distance

Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions)

Interface

Audio Input

1 channel in

Alarm Interface

2 channel in / 1 channel out

Video Output

2 x BNC video output

Modes Supported

HDCVI & Composite

Mode Switching

Dual BNC video outputs

Synchronisation

Internal

OSD Menu

Support

Environmental

Ingress Protection

IP67

Vandal Resistant

IK10

Series

Ultimate Series

Housing

Metal

Camera Type

Bullet

Tri-Axis Mounting

Power Input

12VDC / 24VAC

Power Consumption

< 18.4W

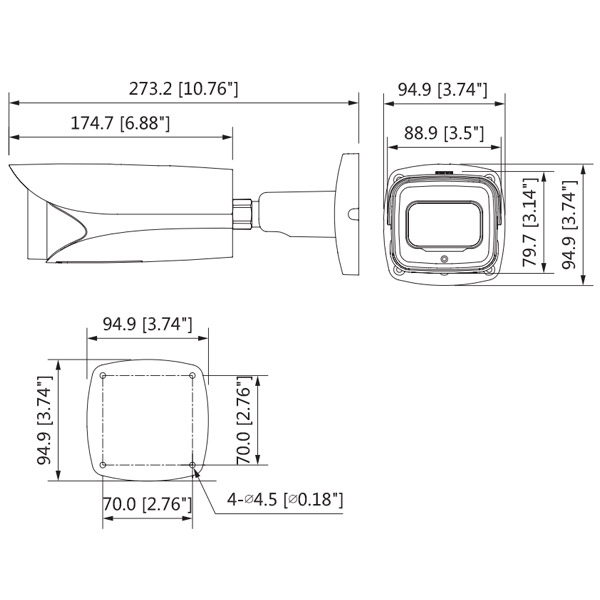

Dimensions

273 x 95 x 95mm

Weight

1.08kg

Operating Environment

-30° to 60°C / RH95% (max)
