Professional Series 4.0MP WDR Motorised HDCVI Dome

Brand logo
SKU VSCVI4MPVDIRME
Brand logo

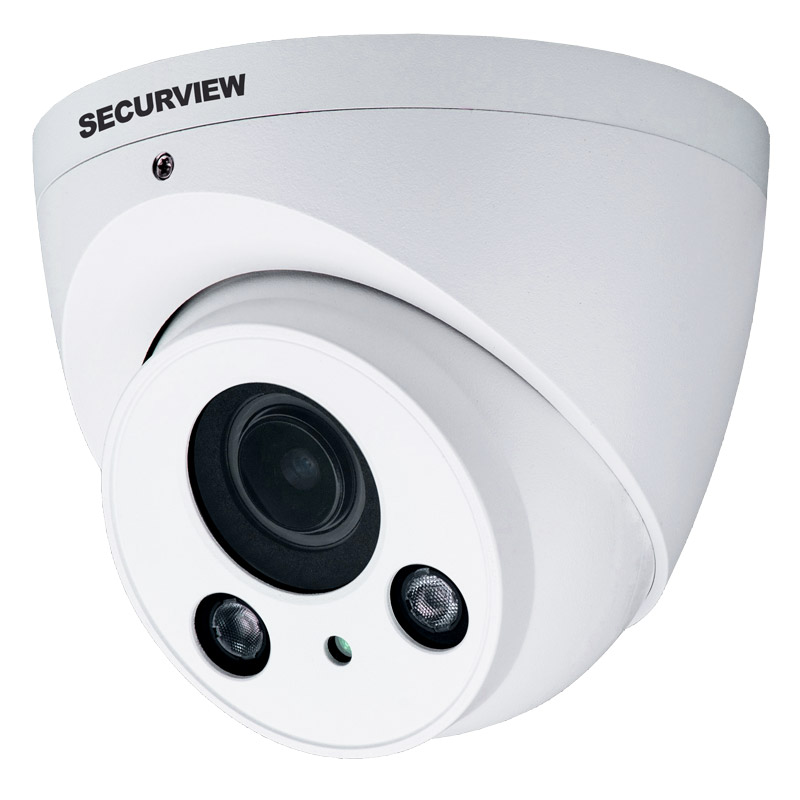

Professional Series 4.0MP WDR Motorised HDCVI Dome

SKU VSCVI4MPVDIRME

With a flat lens window and 4.0MP resolution, the VSCVI4MPVDIRME offers crystal clear images with no distortion, day or night. It also features dual power & HD/SD outputs, for easy installation.

Camera features:
• Stream up to 4.0MP (2560 x 1440) at 25fps
• Motorised varifocal 2.7 ~ 12mm lens with fixed iris
• Up to 700m video transmission over coaxial cable
• Smart infrared illumination, up to 60m range
• Dual BNC outputs for HD and composite video
• True WDR (120dB) and 2D/3D noise reduction
• Dual voltage compatible: 12VDC and 24VAC
• IP67 rated weather resistant metal housing

Backwards compatible: Dual BNC video output for HDCVI or Analogue.
Analogue mode configuration via OSD using HDCVI DVR or tester.

Suggested Products

Suggested product image
Adapter for Ceiling & Wall Mount Brackets
VSBKTA106
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA130E
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA137
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152E
Suggested product image
Rain Cover Dome Camera Bracket
VSBKTA200W
Suggested product image
Right Angle Wall Mount Camera Bracket
VSBKTB203W
Suggested product image
760mm Ceiling Mount Dome Bracket
VSBKTB220C
Suggested product image
Right Angle Wall Mount Dome Bracket
VSBKTB305W

Links and Downloads

Securview VDIRMC Series Datasheet (PDF) 0.89 MB
Securview Accessory Compatibility Guide - Apr 2018 (PDF) 0.81 MB
VIP Vision VDIRME Pro Turret Dome Compatibility Guide (PDF) 0.88 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Image Sensor
1/3” 4.1 Megapixel CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
Signal Noise Ratio
> 65dB
Camera
Lens
2.7 ~ 12mm F1.3 Motorised Lens; Fixed Iris
Lens Type
Motorised Varifocal
Angle of View
98° (wide) ~ 26° (tele)
Focus
Auto/Manual / 0.2m Min. Focus Distance
Minimum Illumination
0.01 Lux at F1.3 (Colour) / 0 Lux IR Active
Electronic Shutter
1/4 ~ 1/100,000s
Day/Night
Auto (ICR) / Manual
Infrared Range
60m
White Balance
Auto / Manual
Noise Reduction
2D / 3D
Gain Control
Auto
Lighting Compensation
BLC / HLC / WDR (120dB)
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
64m (wide)/222m (tele)
Observe (63px/m)
26m (wide)/89m (tele)
Recognise (125px/m)
13m (wide)/ 44m (tele)
Identify (250px/m)
6m (wide)/ 22m (tele)
Video
Resolution
4.0MP (2560 x 1440) to CIF (352 x 288)
Frame Rate
25fps (4.0MP), 25fps (1080p and lower)
Transmission Distance
Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions)
Interface
Audio Input
N/A
Alarm Interface
N/A
Video Output
2 x BNC video output (1 x HDCVI / 1 x Composite SD)
Modes Supported
Mode Switching
Synchronisation
Internal
OSD Menu
Support
Environmental
Ingress Protection
IP67
Vandal Resistant
N/A
Series
Professional Series
Housing
Metal
Camera Type
Dome
Tri-Axis Mounting
Yes
Power Input
12VDC / 24VAC
Power Consumption
< 12.0W
Dimensions
Ø122 x 105mm
Weight
0.62kg
Operating Environment
-30° to 60°C / RH95% (max)
Other
Analogue Support
Yes (Dual output)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
173 mm
Height
165 mm
Depth
170 mm
Weight
0.62 kg
