Fisheye Series 4.0MP 360° HDCVI Fisheye Dome

Brand logo
SKU VSCVI4MPFE
Brand logo

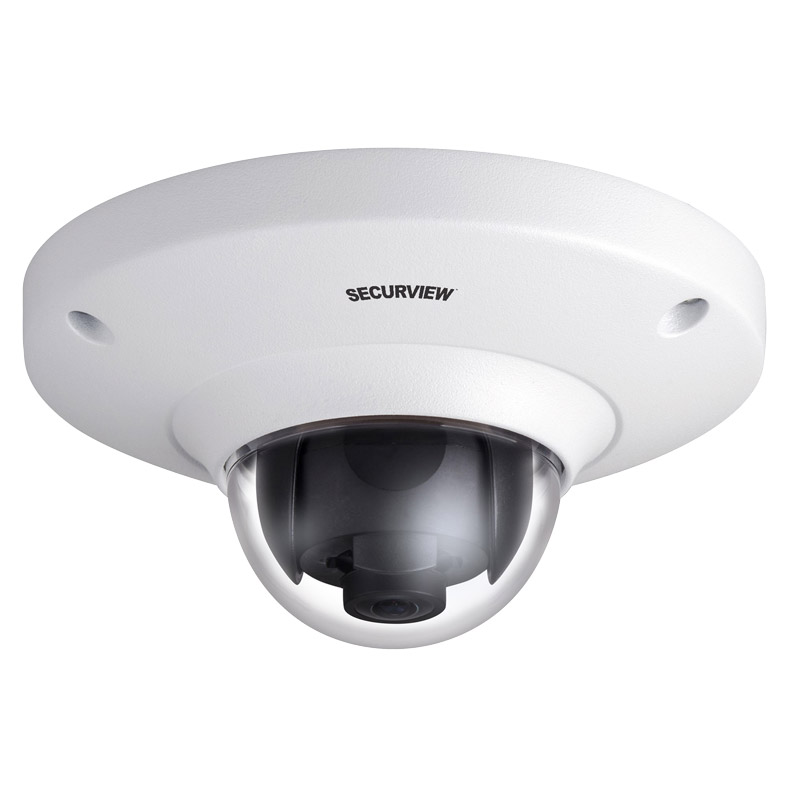

Fisheye Series 4.0MP 360° HDCVI Fisheye Dome

SKU VSCVI4MPFE

Designed to perform the duties of multiple cameras, the VSCVI4MPFE transforms your surveillance experience. This compact HDCVI dome camera grants the benefit of 360° field of view, in a vandal resistant package.

Camera features:
• Stream up to 4.0MP (2560 x 1440) at 25fps
• Circular fisheye lens with 360° viewing angle
• Dewarp modes for ceiling, floor & wall mounting (with select DVRs*)
• Virtual PTZ, panorama, & camera split dewarp modes
• Auto digital day/night & 3D digital noise reduction
• Backlight/highlight compensation & true WDR
• IK10 vandal resistant metal housing
• Supports HDCVI & Composite video format modes
• Switch modes via dual BNC video outputs

* CVR16ULT and CVRxPRO series only

Suggested Products

Suggested product image
Adapter for Ceiling & Wall Mount Brackets
VSBKTA106
Suggested product image
780mm Extender for Ceiling Mount Bracket
VSBKTA117
Suggested product image
Adapter/Junction Box for Surveillance Cameras
VSBKTA136
Suggested product image
Dual Clamp Pole Mount Camera Bracket
VSBKTA152E
Suggested product image
Right Angle Wall Mount Camera Bracket
VSBKTB203W
Suggested product image
760mm Ceiling Mount Dome Bracket
VSBKTB220C

Links and Downloads

Securview FE Fisheye Dome Datasheet (PDF) 0.66 MB
Accessory Compatibility Guide 2023 (PDF) 1.60 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Image Sensor
1/3” 4.1 Megapixel CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
Signal Noise Ratio
> 65dB
Camera
Lens
1.18mm F2.0 Fixed Circular Fisheye Lens
Lens Type
Fixed
Angle of View
Horizontal: 180°, Vertical: 180°
Focus
Fixed Focus / 0.1m Min. Focus Distance
Minimum Illumination
0.01 Lux at F2.0 (Colour) / 0.001 Lux at F2.0 (B&W)
Electronic Shutter
1/3 ~ 1/100,000s
Day/Night
Auto (Electronic) / Colour / B&W
Infrared Range
N/A
White Balance
Auto / Manual
Noise Reduction
2D / 3D
Gain Control
Auto
Lighting Compensation
BLC / HLC / WDR (120dB)
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
24m
Observe (63px/m)
9m
Recognise (125px/m)
5m
Identify (250px/m)
2m
Video
Resolution
4.0MP (2560 x 1440)
Frame Rate
25fps (4.0MP and lower)
Transmission Distance
Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions)
Interface
Audio Input
N/A
Alarm Interface
N/A
Video Output
2 x BNC video output
Modes Supported
HDCVI & Composite
Mode Switching
Dual BNC video outputs
Synchronisation
Internal
OSD Menu
Support
Environmental
Ingress Protection
N/A
Vandal Resistant
IK10
Series
Fisheye Series
Housing
Metal, polycarbonate
Camera Type
Fisheye Dome
Tri-Axis Mounting
No
Power Input
12VDC
Power Consumption
2.2W
Dimensions
Ø110mm x 56mm
Weight
0.41kg
Operating Environment
-30° to 60°C / RH90% (max)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
136 mm
Height
139 mm
Depth
116 mm
Weight
0.40 kg
